19.8.9. Timer

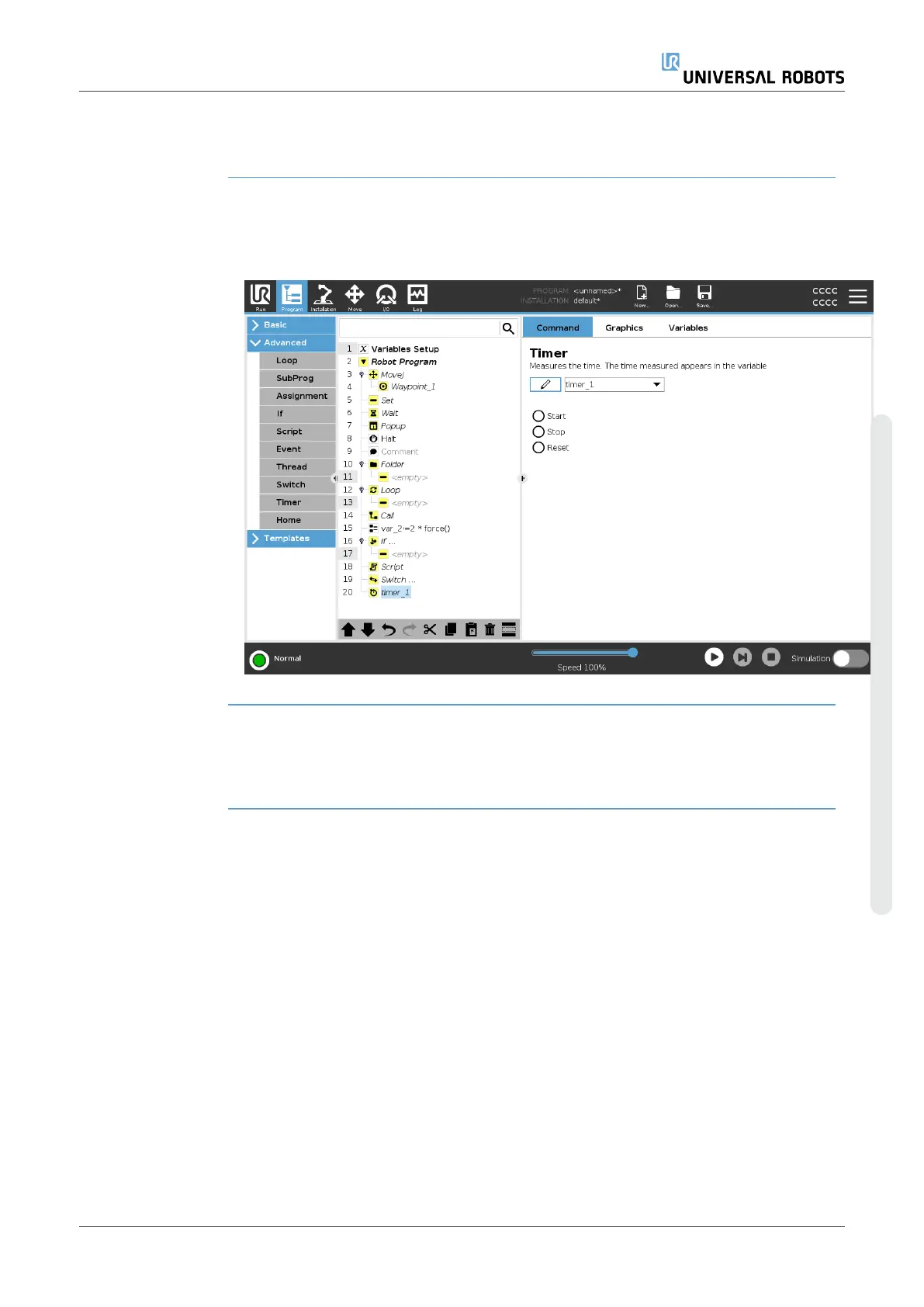

Description A Timer measures the length of time it takes for specific parts of the program to run. A

program variable contains the time passed since a Timer started, and can be seen in

the Variables Tab and in the Run Tab.

19.8.10. Home

User Manual 247 UR10e
