Maximum Power Consumption @230Vac 15VA
Internal fuse rating: 3.15A Time-delay
External fuse rating (suggested)
2.5A Fast-blow
Minimum ionization current 0.5 µA
On request 0.15 µA
Recommended minimum ionization
current times
3/5
Connector: J6
Pin 15 Phase
Pin 16
Neutral
Pin 17 Live lockout or residual heat signal
Pin 18 Remote Unlock
Pin 19
Neutral Unlock/Lockout Signal
Ignitor Line
Ignitor Neutral
Connector: J4
Pin 11 Ground
Pin 12 Detection electrode n°1
Pin 13 Detection electrode n°2
Pin 14 Detection electrode n°3
Connector: J5
Pin 8 Gas Valve Line
Pin 9 Not used
Pin 10 Gas Valve Neutral
Connector:
Pin 1 Led output signal
Pin 2
Selector Neutral
Pin 3
Pin 4
Selector Neutral
Pin 5
Pin 6
Selector Neutral
Pin 7
EA3
A
NF
LF
EA2EA1
EA3
14 13 12 11 10 987654 32
19 18 17 16 15
1
EA2EA1
VG1
N
S3
N
N
SB
RESET
L
J4 J5 J1
J6
J3
J2
N
S2
N
S1
J2
J3
J6
J4
J5 J1
Flame control board

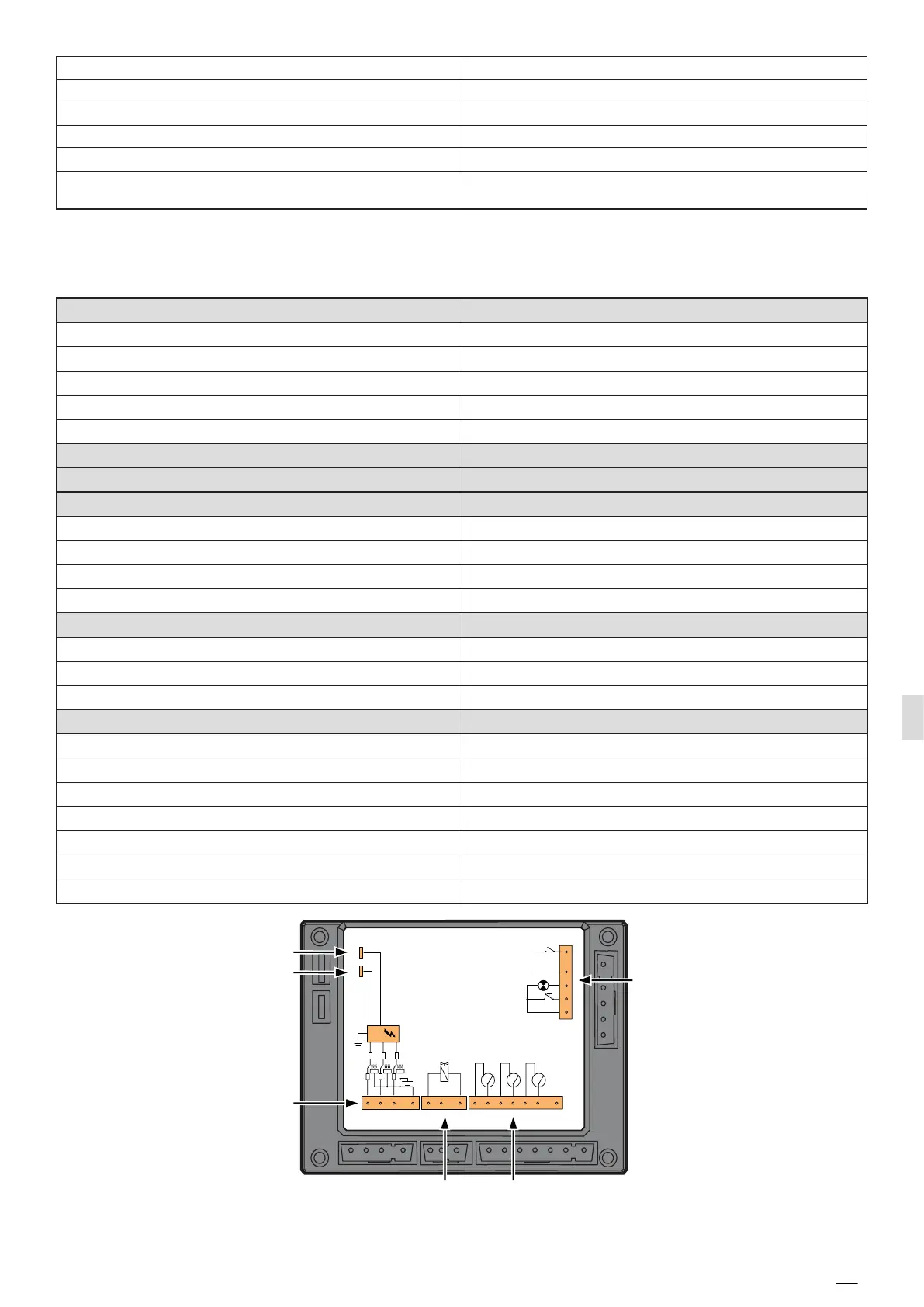

The main connections of the flame control board are summarized in Table 25 and shown in Figure 12.
Table 25 Flame control board connection
Selector or heating demand on burner/fire 1
Selector or heating demand on burner/fire 1
Selector or heating demand on burner/fire 1
