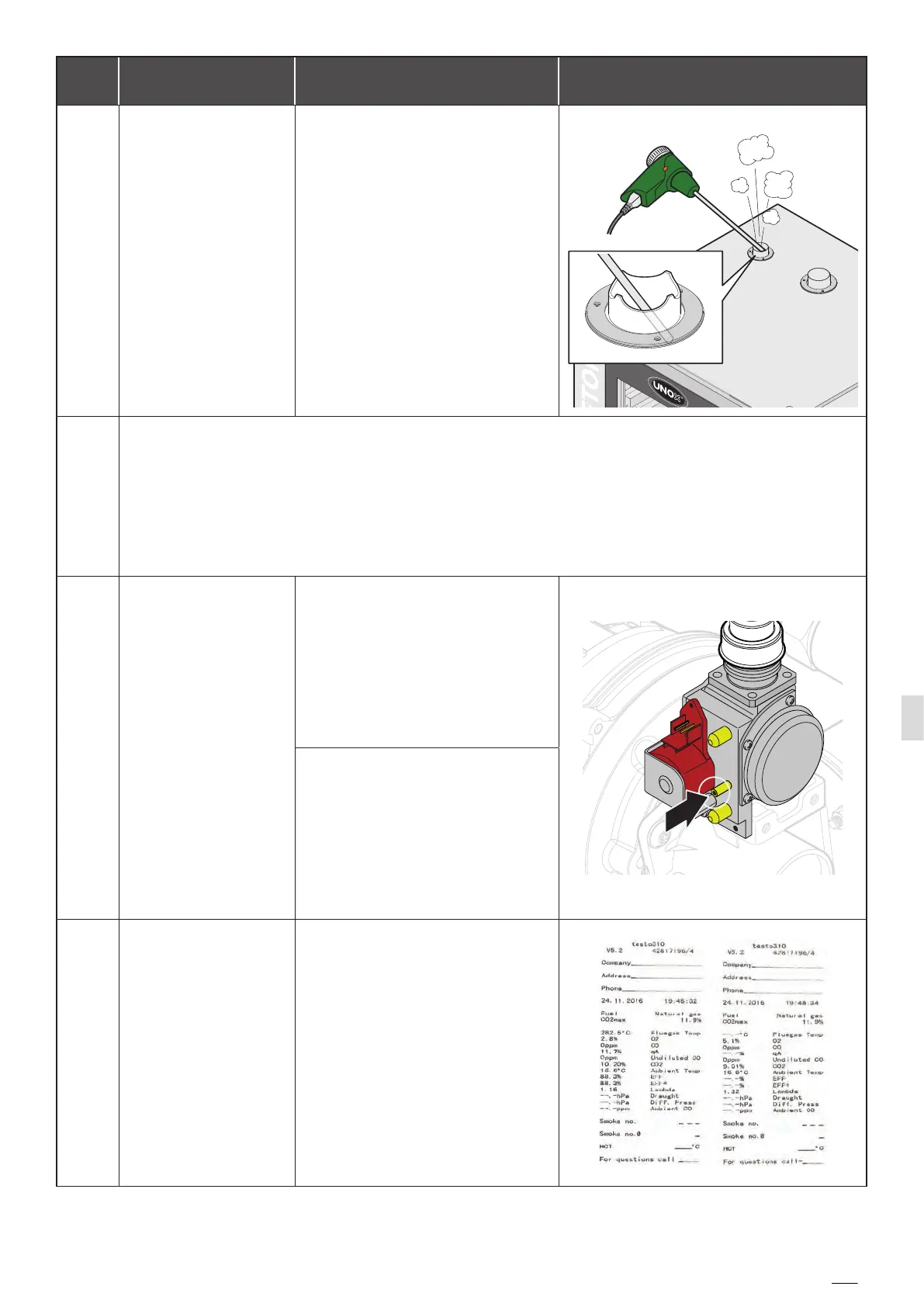

STEP
R
EQUIREMENT TO DO LIST ILLUSTRATION
7 Mandatory
8
For an oven installed under a hood, follow the settings according to column A3 or B23 for
European oven or the A3 column for US models.
In case of an oven installed with the gas flow diverter XUC070 or XUC071, follow the settings
according to column B13 for European or US ovens.
When you open the gas valve cover pay attention to the gas valve cable harness. Check if it is
properly connected.
9
If the emissions do
NOT match the
range reported on
the UNOX technical
chart in terms of CO
and CO
2
10
If the emissions
match the range
reported on the
UNOX technical
chart in terms of CO
and CO
2
.
Turn off the oven, print the
receipt and leave a copy of the
analysis to the customer.
FAC - SIMILE
Place the gas analyzer probe a
few centimeters inside the left
chimney looking at the oven
from the front (as shown in
figure) and wait for the values to
stabilize on the instrument
display (do not insert the probe
fully inside the chimney)
If the emissions of CO2 and
CO are greater than the values
reported on the UNOX
technical chart, close the
throttle gradually until the
emissions meet the specified
values (alove time for the
system to react to the
adjustment of the screw).
If the emissions of CO2 and
CO are greater than the values
reported on the UNOX
technical chart, close the
throttle gradually until the
emissions meet the specified
values (alove time for the
system to react to the
adjustment of the screw).
