 GENERAL DESCRIPTION

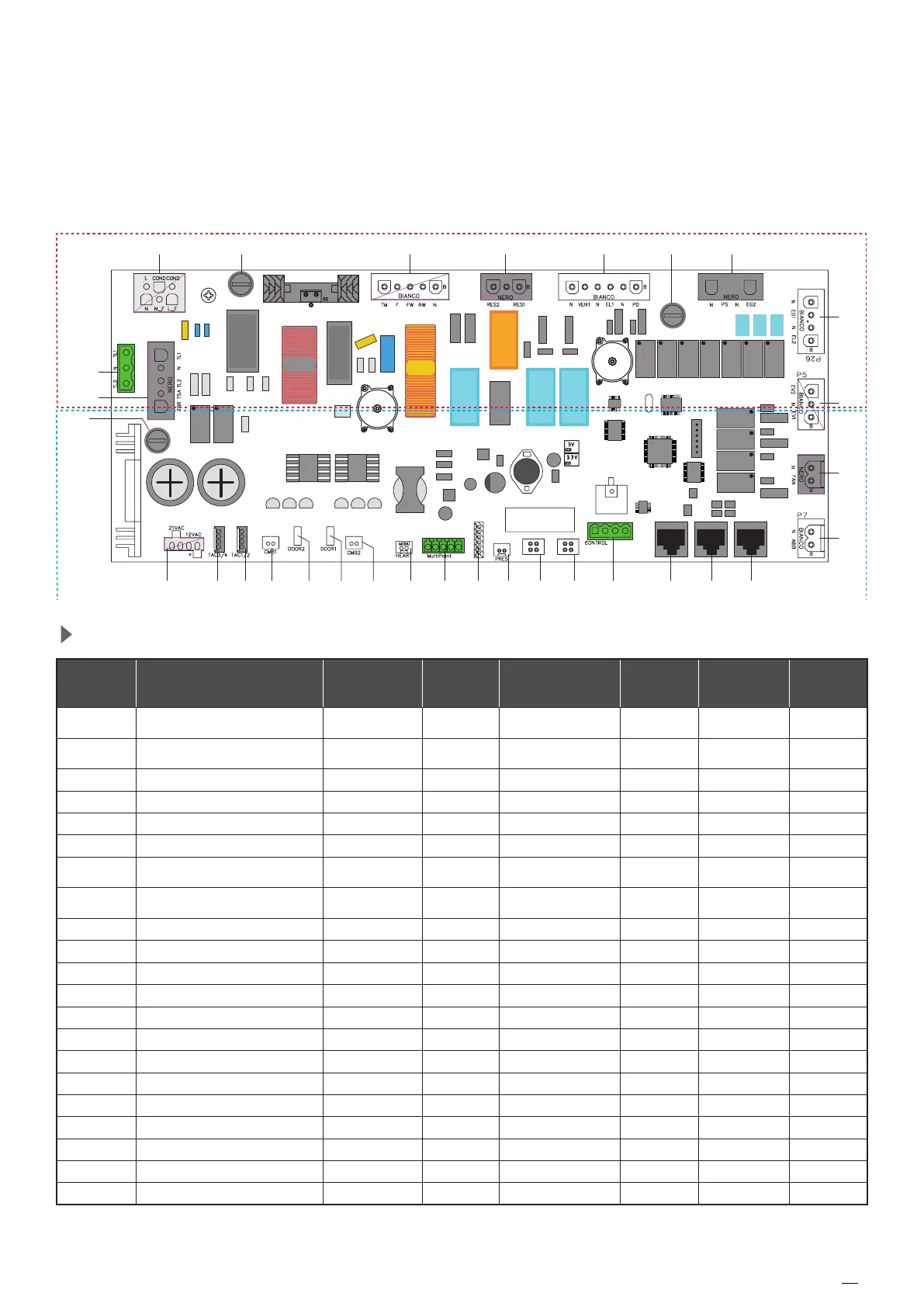

The PE2038A is a circuit board with its main functions being to:
■ manage the loads of the oven (contactors, motors, solenoid valve, etc.)
■ read the measurements provided by the different sensors (temperature probes, door switch, etc.)
■ power the low voltage of the entire system
■ communicate through CANBUS with the control board
■ communicate through (RS485) with possible bridge boards
E1
P1
P23
F2
P22
F4
P21
P2 P3 P25
P26
P5
P6
P7
P4 F3
P30P20P19 P15 P14 P28 P10P11P12P13P32 P9 P8P18 P17 P16
HIGHT VOLTAGE
LOW VOLTAGE
Output
NAME
LOAD
DESCRIPTION
ACTUALIZA-
TION
VOLTAGE
CURRENT

TYPE OF
LOAD

LOAD
HARDWARE
OUTPUT
TL_1
67% heating elements
branch – contactors
Relay (RL8)
230 Vrms 120 mA A 4
√
TL_2
33% heating elements
branch – contactors
Relay (RL9)
230 Vrms 120 mA A 4
√
EV_1
steam low flow Relay (RL4)
230 Vrms 60 mA B 2
√
EV_2
steam high flow Relay (RL5)
230 Vrms 60 mA B 2
√
VENT
DRY.Maxi solenoid Relay (RL3)
230 Vrms 35 mA G 1 √
PD Detergent pump
Relay (RL14) 140 Vrms
370 mA C 2
√
EL_1
Washing solenoid from tap
water
Relay (RL2)
230 Vrms 30 mA B 1
√
EL_2
Washing solenoid to
3rd wash arm if fitted
Relay (RL18)
230 Vrms 30 mA B 1
√
EG_1 Rotor arm 1 water solenoid
Relay (RL15)
230 Vrms 30 mA B 1
√
EG_2 Rotor arm 2 water solenoid
Relay (RL16)
230 Vrms 30 mA B 1
√
ABB Cooling drainage solenoid
Relay (RL7)
230 Vrms 30 mA B 1
√
FAN Cooling fan
Relay (RL6)
230 Vrms 260 mA E 2
√
RES_1 Braking element 1
Relay (RL10)
230 Vrms - - 5
√
RES_2 Braking element 2
Relay (RL11)
230 Vrms - - 5
√
MOT_FWRW
Motor revolution direction
Relay (RL12)
- - - -
√
STBY Neutral cut off
Relay (RL13)
- - - -
DCO_1 13 Vdc auxiliary output
Open collector 13 Vdc 500 mA - 1
√
TRIAC Motor triac control Triac 230Vrms 8 A F 5
√
SR_1 - - - - - -
√
SR_2 - - - - - -
√
SR_T - - - - - -
