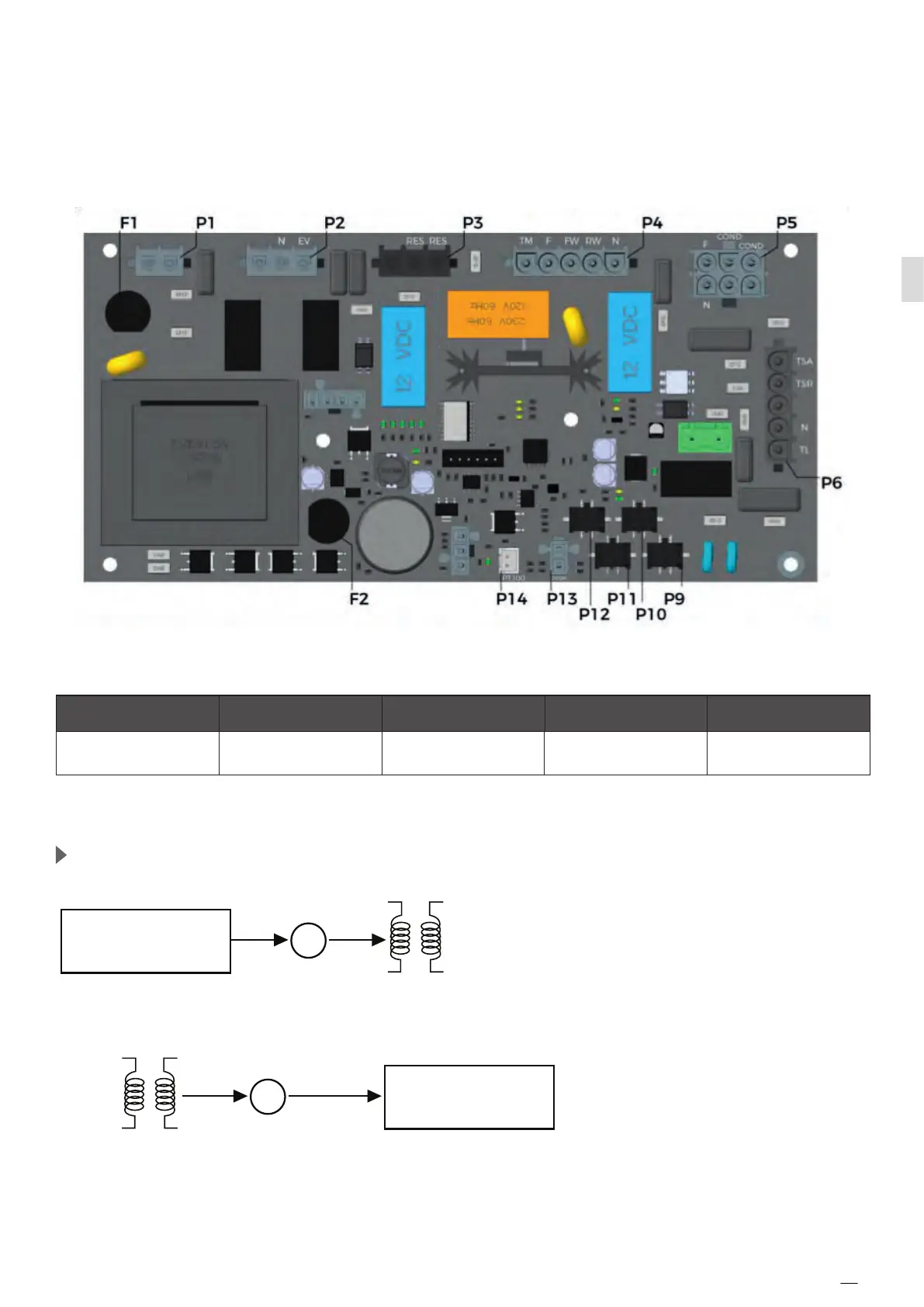

PE2102A0 is the board that is used for the following purposes:
■ manage the oven loads (contactors, motors, solenoid valve, etc.);
■ read the measurements taken by the different sensors (temperature probes, door switch,
etc.)
■ powering the low voltage of the entire system;
■ communicate via CANBUS with the control board and possible bridge boards.
The characteristics of PE2102A0 are reported in .
Power board Transformer size
Steam valve or steam
pump socket
Braking element
socket
Number of CANBUS
sock ets
PE2102A0 16 VA √ √ 4
Table 5
PE2121A0
Transformer connection
Power
Board
F2
230V AC
12 V AC
Power
Board
F4
230 V AC
12 V AC
PCB
PCB
The transformer is electronic and
included in the power board. The
primary turn of the transformer is
powered at 230 VAC. The secondary
turn of the transformer translates the
230 VAC into 12 VAC. F1 fuse (size: 160
mA – 250 V, type: Fast Acting) is
between the power board and the
transformer primary turn.
When the transformer is shorted,
F1 blows to protect the circuits of
the power board. The power board
receives the low voltage from the
secondary turn of the transformer.
F2 fuse (size: 2 A – 250 V, type: Time
Delayed) is between the transformer
secondary turn and the power board. When one or more low voltage components are shorted, F2 blows to
protect the secondary turn of the transformer, see Fig. 14.
