UP3D TECH CO.,LTD
51
4.4.2.2 Sectioned model without die plate
Application: it needs to scan the adjacent tooth relationship and the dies has been sectioned, but
without scanning the multi-dies plate, you can scan the dies directly on the model
Take the model without antagonist jaw for example to introduce the scanning process.
（1）Create an order
A1. Create an order, select the tooth position and define a design type
A2. Select the following scan options and start scanning
Model source: model
Occlusion: none
Adjacent teeth: sectioned model
Multi-dies: not activated
（2）
Working model scanning
A1.Follow the instruction of the scanning guide to insert the working model
A2.Click【Next】/【Enter】to scan;
A3.Check if it needs to be add scan after the jaw is scanned (editable),if not, click
【
Apply
】
（3）
Die scanning
A1. Follow the instruction of scanning guide, take out the parts on the model except the dies
A2. In order to prevent the dies from obstructing the scanning, it is generally necessary to insert the
dies one by one. Please follow the instruction to insert the model and start scanning.

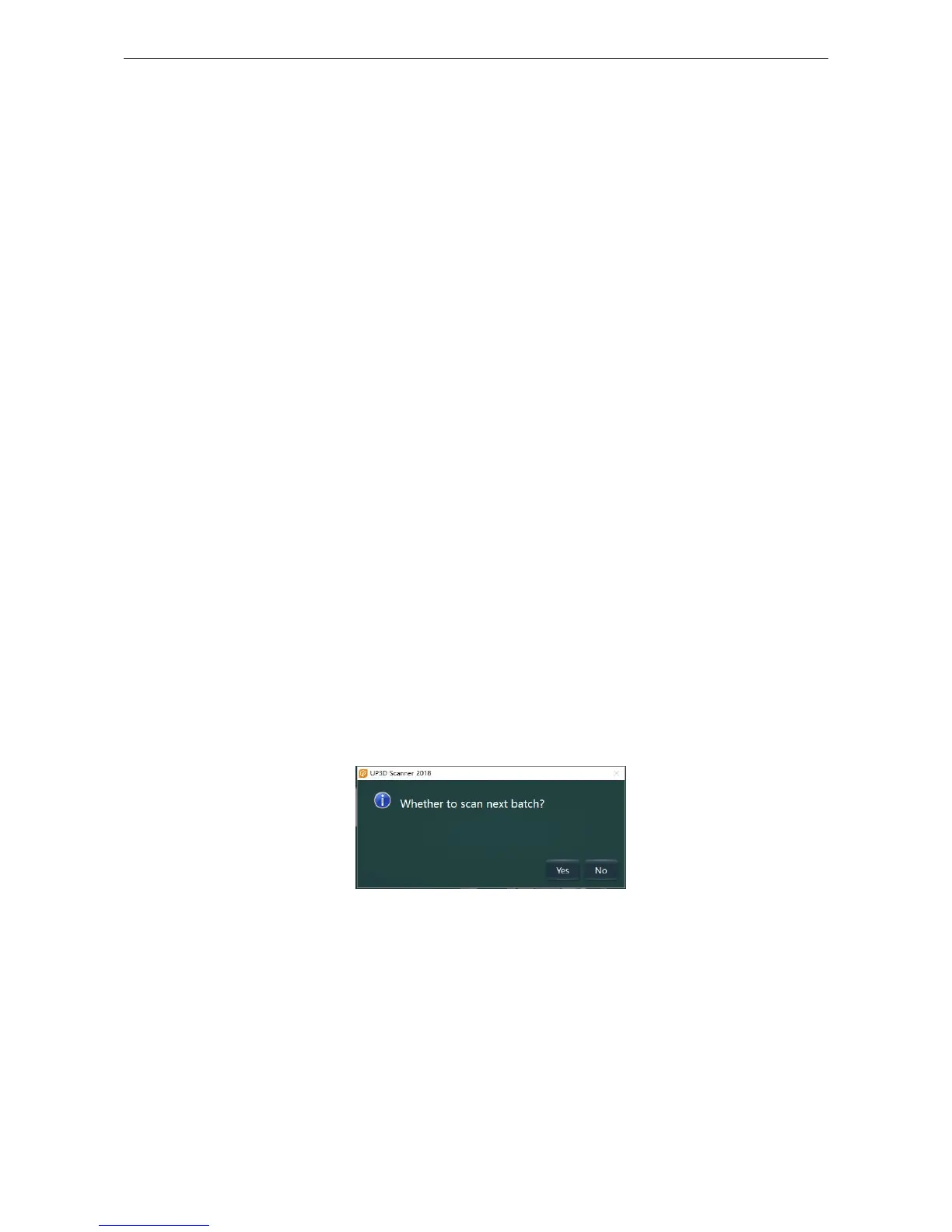

A3.The model scan is completed, please click【Next】,the following dialog box will pop up
(Figure 4-10)
Figure4-10
Click
【
Yes
】
: Enter the next batch scan of the model, same as (3), It provides the
【
Delete Batch
】
function to cancel the current batch scan after entering the next batch scanning step.
Click【No】:Enter the alignment step
(4) Model automatic alignment (refer to model alignment)
(5) The order scanning is finished
4.4.2.3 Unsectioned model
