BASE INSTALLATION WITH VEHICLE SEAT BELT
Lap Belt Only Routing Method

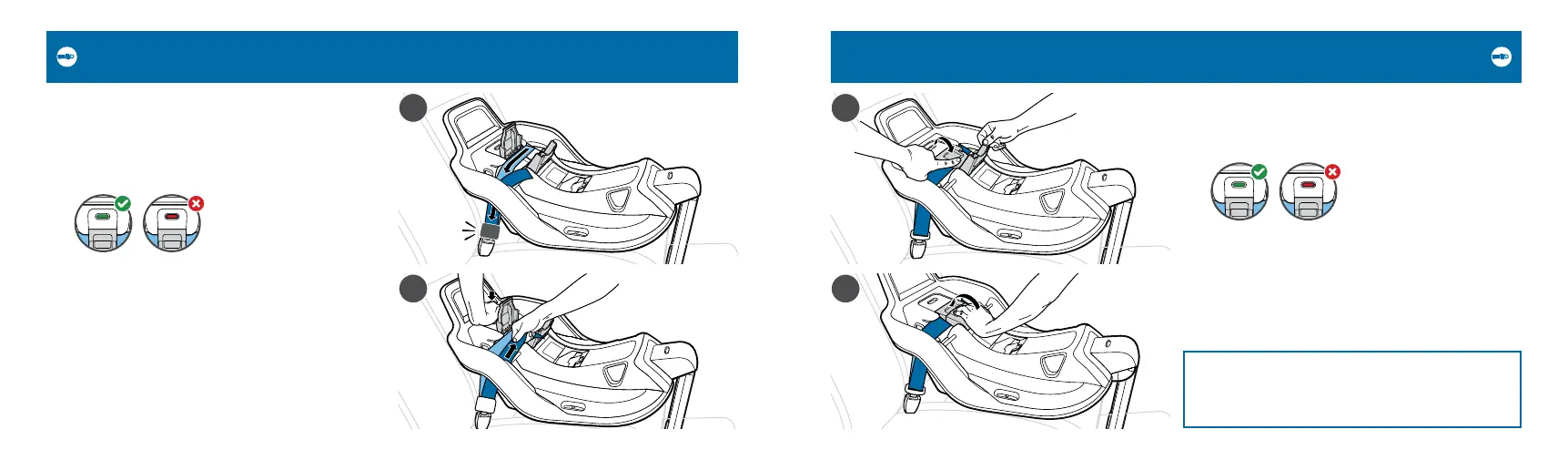

1 Route the vehicle belt through the belt path while guiding the
lap portion of the belt as close as possible to the topside of
the lock-o where the door hinges. Buckle the vehicle
2 With one hand push down base and hold firm as you pull lap
belt to tighten and remove any slack.
NOTE: Tightness indicator should be green.
3 While holding the excess lap belt webbing, firmly check the
indicator. If GREEN, close the top of the lock-o over the
vehicle belt.
NOTE: Tightness indicator should be green.
4 Push the bottom of the lock-o all the way down until you
hear an audible click.
NOTE: Anti-Rebound+ Panel must make full contact with the
seat back. If it does not make full contact, please refer to the
Waterfall note (pg 39).
LOAD LEG INSTALLATION CONTINUE TO PAGE 38.
REVIEW SAFETY CHECK ON PAGE 40.
All steps must be achieved.
