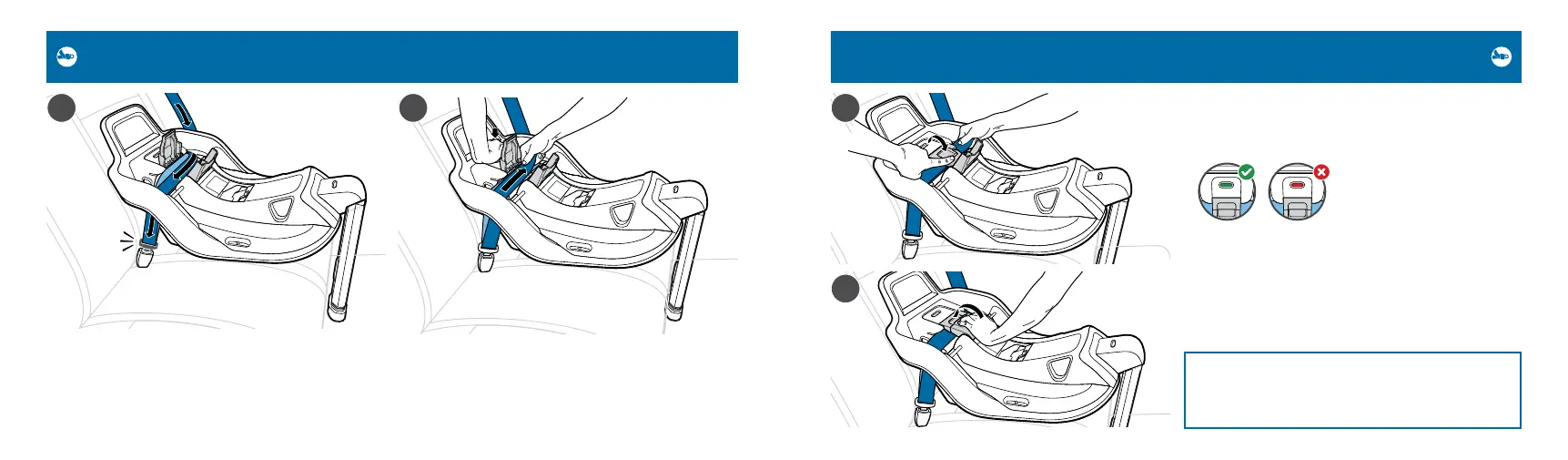

BASE INSTALLATION WITH VEHICLE SEAT BELT
Lap/Shoulder Routing Method
1 Route the vehicle belt through the vehicle belt path while guiding the lap portion of the belt as close as possible to the
topof the lock-o where the door hinges. Buckle the vehicle belt.
2 Hold shoulder portion of belt above base. With one hand, push down in the direction of the seat bight (crease of seat)
and hold firm as you pull shoulder belt.
3 While holding the shoulder belt firmly, check the indicator.
If green, close the top of the lock-o over the lap/shoulder
belt.
NOTE: Tightness indicator should be green.
4 Push the bottom of the lock-o all the way down until you
hear an audible click.
NOTE: Anti-Rebound+ Panel must make full contact with
the seat back. If it does not make full contact, refer to the
Waterfall note (pg 39).
LOAD LEG INSTALLATION CONTINUE TO PAGE 38.
REVIEW SAFETY CHECK ON PAGE 40.
All steps must be achieved.
