Upright ab62 User Manual

Page 10 104044-001 AB62 Work Platform - Operator Manual
Operation

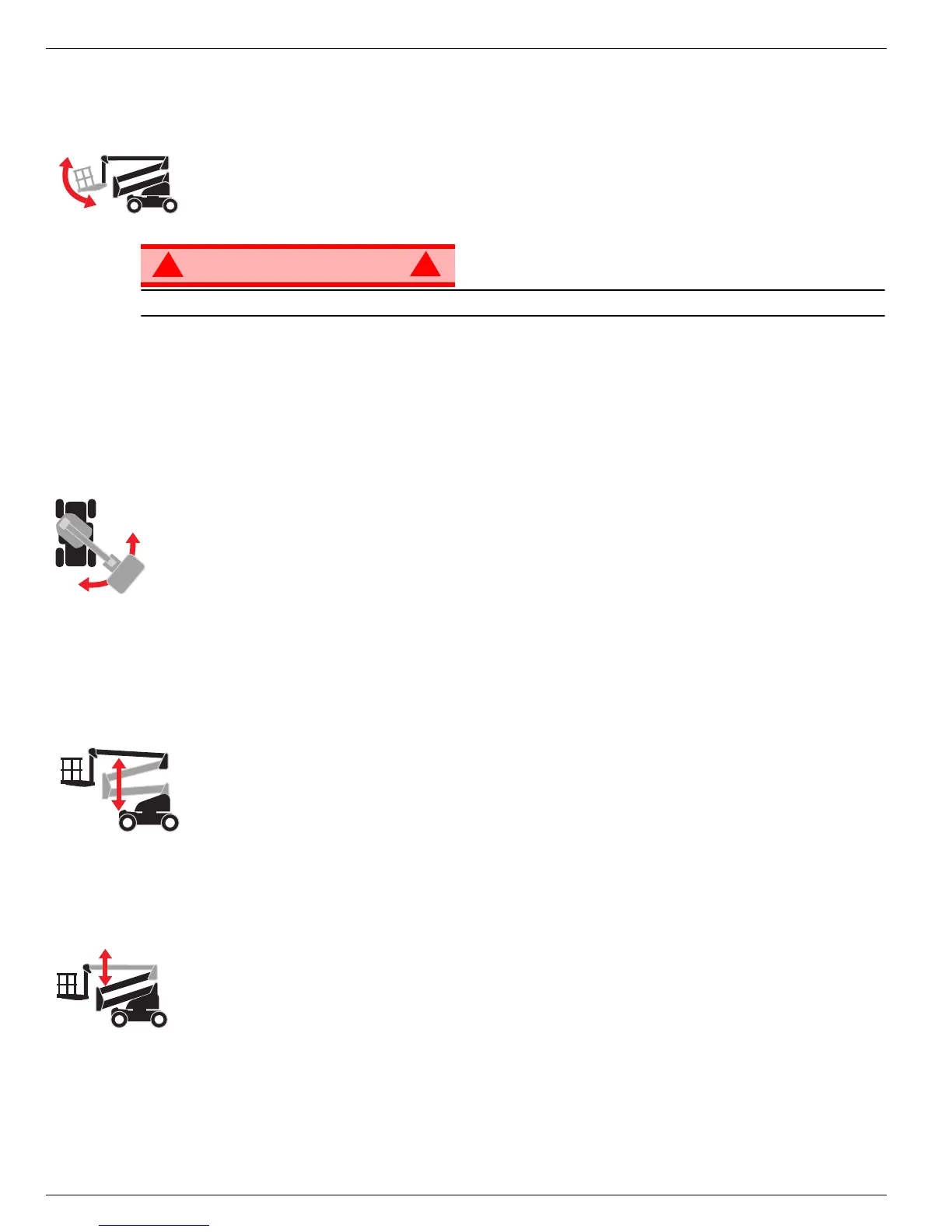

U PPER C ONTROL O PERATION
1. Turn the chassis key switch to the left (Platform).
2. Turn ON the platform ignition switch.
L EVELING THE P LATFORM
WARNING
!
!
DO NOT operate the machine if the platform does not maintain level when elevated.
NOTE:
Platform leveling should be done only to calibrate the automatic leveling system.
1. Set the Function Speed control dial to the desired setting. Rotate the dial clockwise to increase speed,
counterclockwise to decrease. If you are not sure what speed to use, start out slow; the speed can be
varied while operating the function.
2. While depressing the foot switch, push the Platform Level control switch forward to swing the platform
upward, rearward to swing the platform downward. Release the switch to stop leveling.
R OTATING THE T URRET
1. Set the Function Speed control dial to the desired setting. Rotate the dial clockwise to increase speed,
counterclockwise to decrease. If you are not sure what speed to use, start out slow; the speed can be
varied while operating the function.
2. While depressing the footswitch, push the Turret Rotation control lever right to rotate counterclockwise;
left to rotate clockwise. Release the switch to stop rotation. Observe the area around the boom when
rotating the turret to avoid any obstructions.
E LEVATING THE R ISER
1. Set the Function Speed control dial to the desired setting. Rotate the dial clockwise to increase speed,
counterclockwise to decrease.
2. While depressing the foot switch, push the Riser control lever forward to elevate the riser, rearward to
lower the riser. Release the control lever to stop elevating/lowering.
E LEVATING THE U PPER B OOM
1. Set the Function Speed control dial to the desired setting. Rotate the dial clockwise to increase speed,
counterclockwise to decrease. If you are not sure what speed to use, start out slow; the speed can be
varied while operating the function.
2. While depressing the foot switch, push the upper Boom control lever forward to elevate the upper boom,
rearward to lower the upper boom. Release the control lever to stop elevating/lowering.
