Introduction

104044-001 AB62 Work Platform - Operator Manual Page 3

NTRODUCTION

This manual covers the operation of the AB62 Articulated Boom.

This manual must be stored on the

machine at all times.

ENERAL

ESCRIPTION

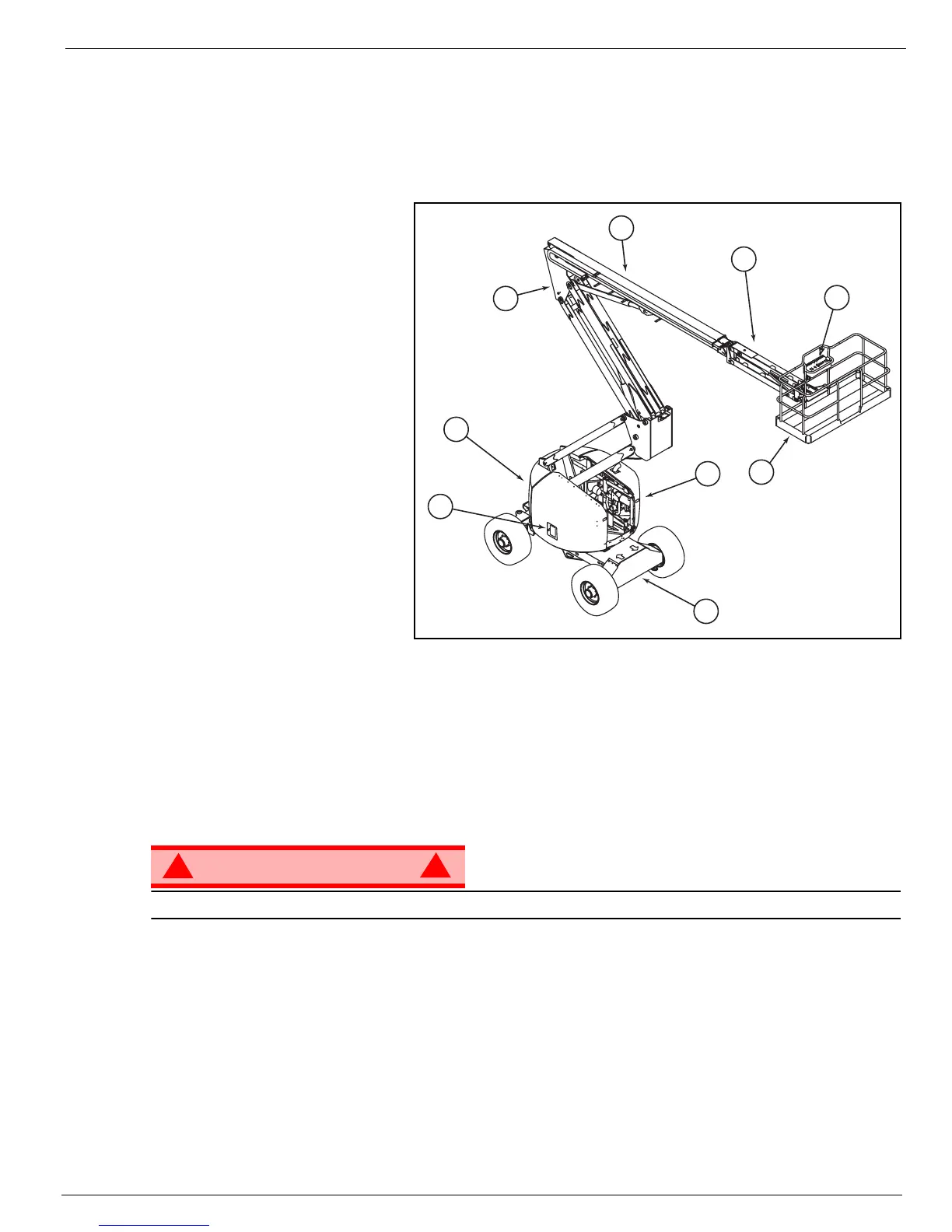

Figure 2:

AB62 Work Platform

1. Platform

• The platform has a non-slip alu-

minum floor, guardrails with

midrail, toeboards, and an

entrance gate at the rear of the

platform.

2. Platform Controls

• The Platform Controller is

located at the front of the plat-

form cage. The foot switch must

be depressed to operate any

function from the platform.

3. Riser

• Used to raise the platform.

4. Boom

• Used to extend the platform.

5. Jib

• Used to level and rotate the

platform, and to raise or lower

the platform at the end of the

boom.

6. Power Module

• The Power Module contains the engine and the hydraulic pump.

7. Control Module

• The Control Module contains the fuel tank, hydraulic fluid tank and components, the hydraulic manifold,

the batteries, and the Chassis Controller.

8. Chassis Controls

9. Chassis

WARNING

DO NOT use the work platform without guardrails properly assembled and in place.
