Page 4 104044-001 AB62 Work Platform - Operator Manual
Controls and Indicators
C
ONTROLS
AND
I
NDICATORS

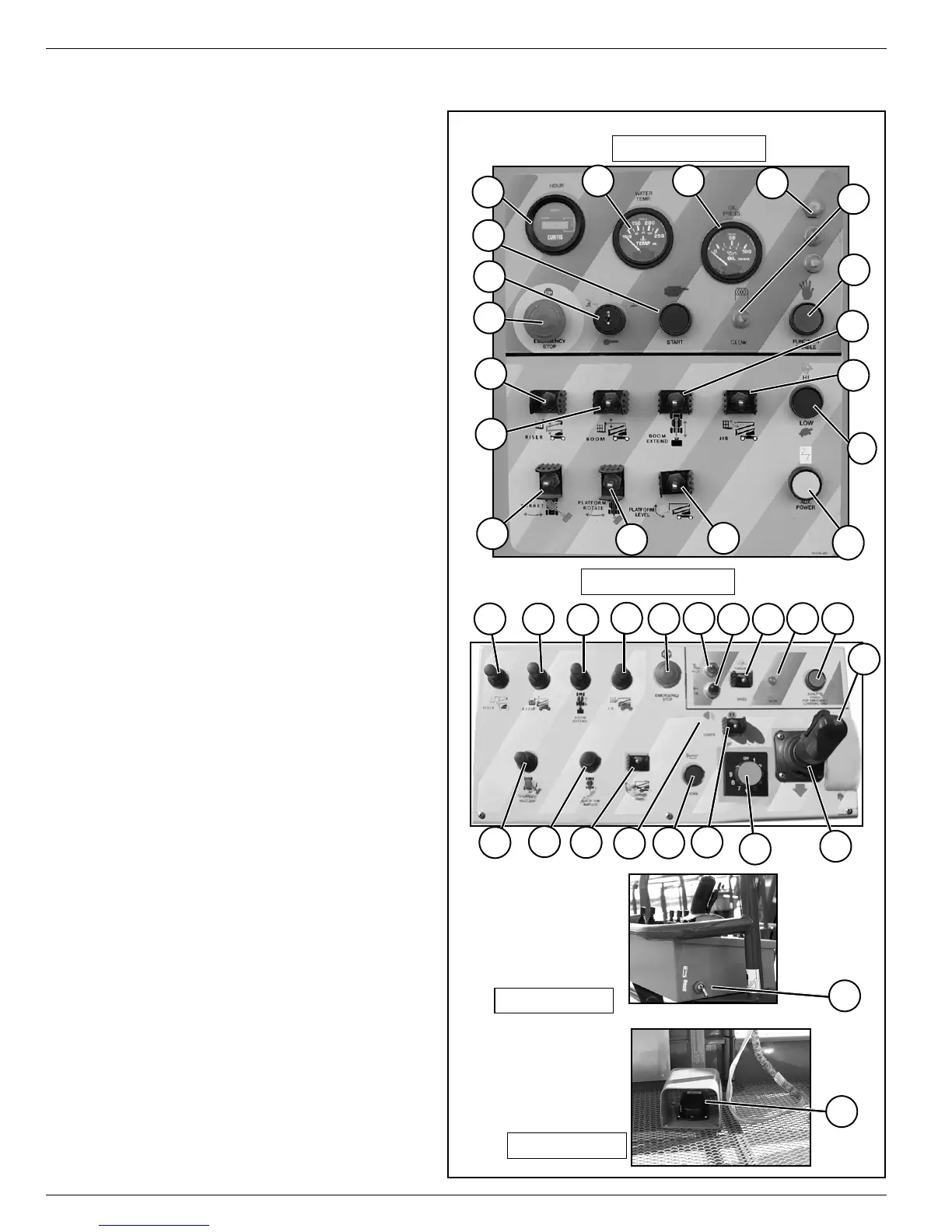

Figure 3:
Controls and Indicators
1. Hour Meter
2. Water Temp.
3. Oil Pressure
4. Breaker
5. Diesel - Glow Plug Light
Gasoline/LPG - Plugged
6. Function Enable
7. Engine Start
8. Key Switch
9. Emergency Stop
10. Riser
11. Boom Extend/Retract
12. Jib Raise/Lower
13. Boom Raise/Lower
14. Turret Rotate
15. Platform Rotate
16. Platform Level
17. Function Speed HI/LOW
18. Auxiliary Power
19. Riser
20. Boom Raise
21. Boom Extend
22. Jib Raise
23. Emergency Stop
24. YELLOW-Tilt
25. RED-Oil Pressure Warning
26. Torque / Speed
27. Diesel - Glow Plug Light
Gasoline/LPG - Fuel Selector Switch
28. Auxiliary Power
29. Turret Rotate
30. Cage Rotate
31. Cage Level
32. Auxiliary Light (option)
33. Horn
34. Generator (option)
35. Function Speed
36. Drive Control Handle
37. Steering Rocker Switch
38. Key Switch
39. Foot Switch
Foot Switch
Key Switch
Platform Controls
Chassis Controls
Diesel Model
29
30
31
32
33
19
20
21
22
23
24
37
34
35
36
25
26
27
28
1
11
4
3
2
6
5
18
16
14
15
10
13
7
8
9
12
17
38
39
