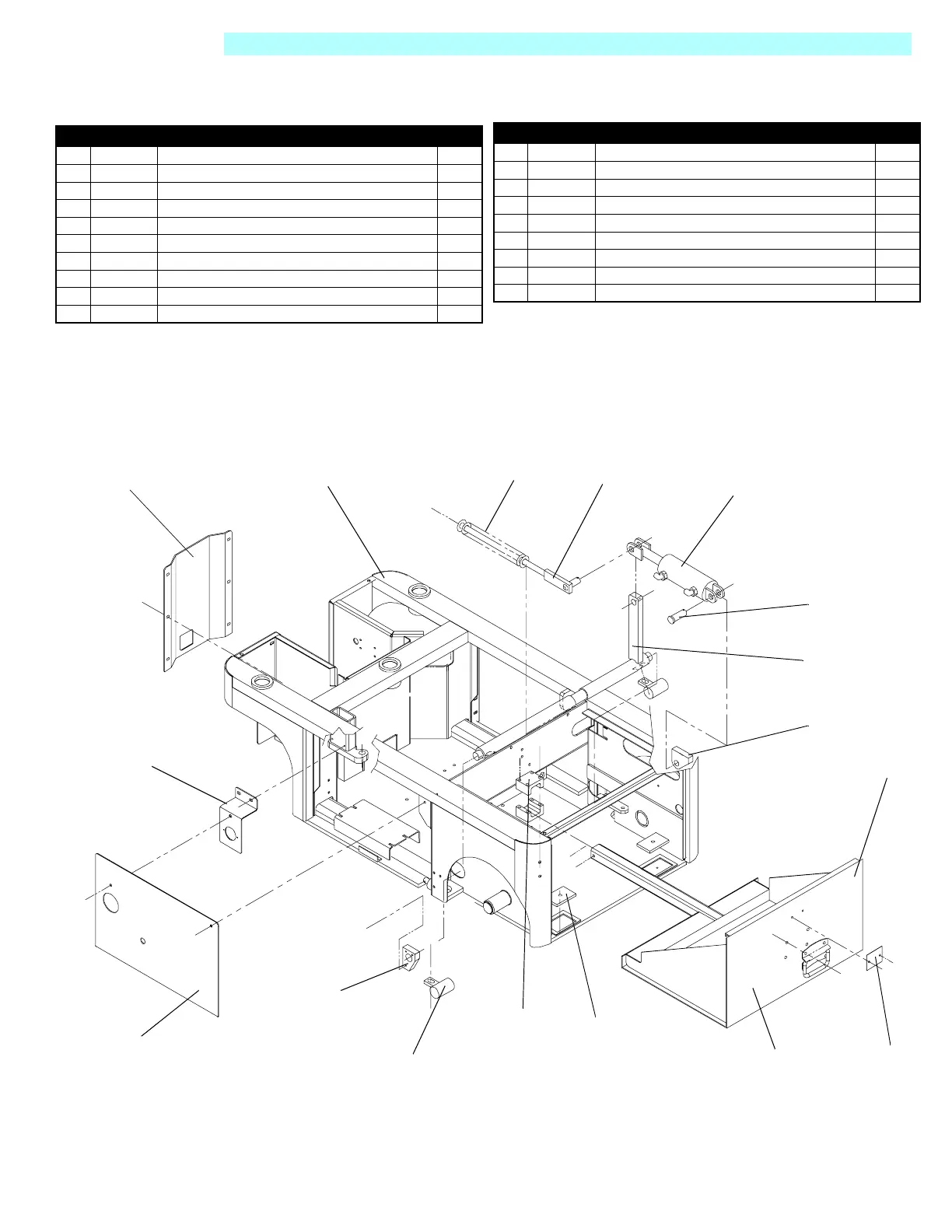

Illustrated Parts Breakdown - Chassis Assembly 1 of 4
505115-000 TM12 PARTS MANUAL
Chassis Assembly 1 of 4
505001-000
ITEM PART NUMBER DESCRIPTION QTY
1 107133-000 CHASSIS WELDMENT TM12 1
2
065465-000 BATTERY PAN WELDMENT 1
3
065472-000 SHOE PARK BRAKE 2
4
505031-000 BRAKE BEARING (LH) 2
5
505031-001 BRAKE BEARING (RH) 4
6
107131-002 CHASSIS ACCESS PANEL 1
7 505033-000 BRACKET, SIDE PANEL SUPPORT 1
8 505029-000 FRONT COVER 1
9 505023-000 SPRING COMPRESSION 1
10 065474-000 TENSION BAR WELDMENT 1
11 505035-000 CYLINDER ASSY (BRAKE) 1
- 505035-010 SEAL KIT, CYLINDER
12 065469-000 BRAKE ACTUATOR WELDMENT 1
13 505032-000 GUIDE PAD 2
14 505030-000 SLIDE PAD 2
15
026541-016 HANDLE 1
16
011848-019 PIVOT PIN, BRAKE CYLINDER 1
17
505028-000 SPACER PLATE, BATTERY TRAY SECURING PIN 1
18
ITEM PART NUMBER DESCRIPTION QTY
9
10
11
16
12
5
2
15
17
13
14
3
4
6
7
81
