Upright TM 12 Series User Manual

Pa
g
e 6-6

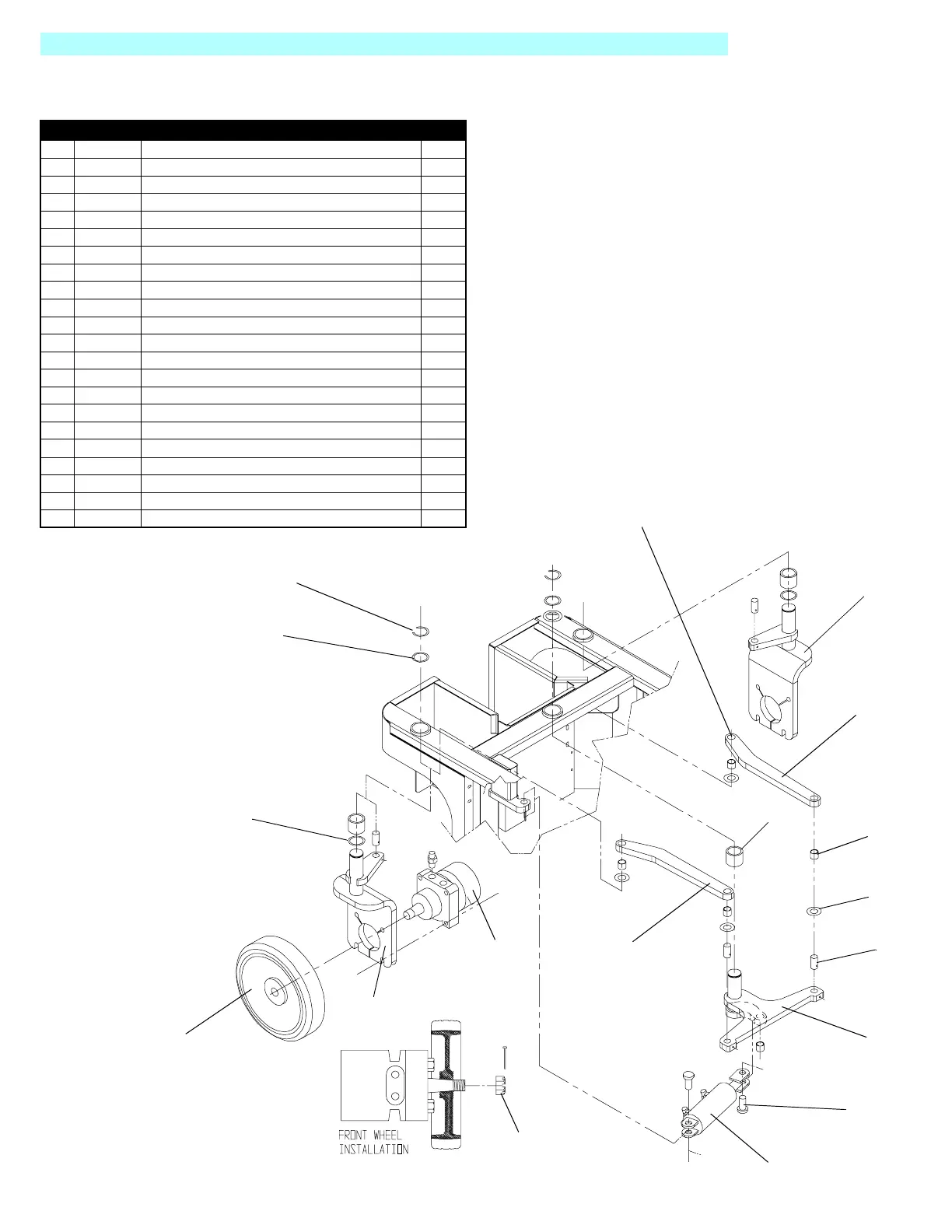

Illustrated Parts Breakdown - Chassis Assembly 2 of 4
505115-000 TM12 PARTS MANUAL
33
32
28
20
21
19
35
24
27
22
23
29
34
30
25
31
26
36&37
Chassis Assembly 2 of 4
505001-000
ITEM PART NUMBER DESCRIPTION QTY
19
501999-000 MOTOR HYDRAULIC 2
20
505011-000 WHEEL, DRIVE 2
21 107186-000 WHEEL YOKE, L.H. 1
22 107185-000 WHEEL YOKE, R.H. 1
23 065517-000 STEER LINK RH 1
24 065518-000 STEER LINK LH 1
25 065445-000 BELL CRANK WELDMT 1
26 505035-000 CYLINDER ASSY, BRAKE/STEER 1
- 505035-010 SEAL KIT, BRAKE/STEER CYLINDER -
27
505043-000 BUSHING, BELL CRANK & STEER YOKE PIVOT 3
28
500924-001 BUSHING (FLAT), BELL CRANK & STEER YOKE PIVOT 3
29
503673-000 BUSHING, STEERING LINK ARMS & BELL CRANK WELD’M5
30
505034-000 PIVOT PIN, STEERING LINK ARMS 4
31 011848-019 PIVOT PIN, STEERING CYLINDER 2
32 505040-000 RETAINING RING, WHEEL YOKE PIVOT 2
33 505038-000 CIRCLIP 2
34 505045-000 SPACER (STEERING LINK) 4
35 502180-002 CASTLE NUT, (DRIVE WHEELS) 2
36 505116-000 WASHER (STEERING LINKARMS) 4
37 056058-016 M6 X 16 HEX HEAD SCREW 4
38
39
