Upright TM 12 Series User Manual

Pa
g
e 6-7

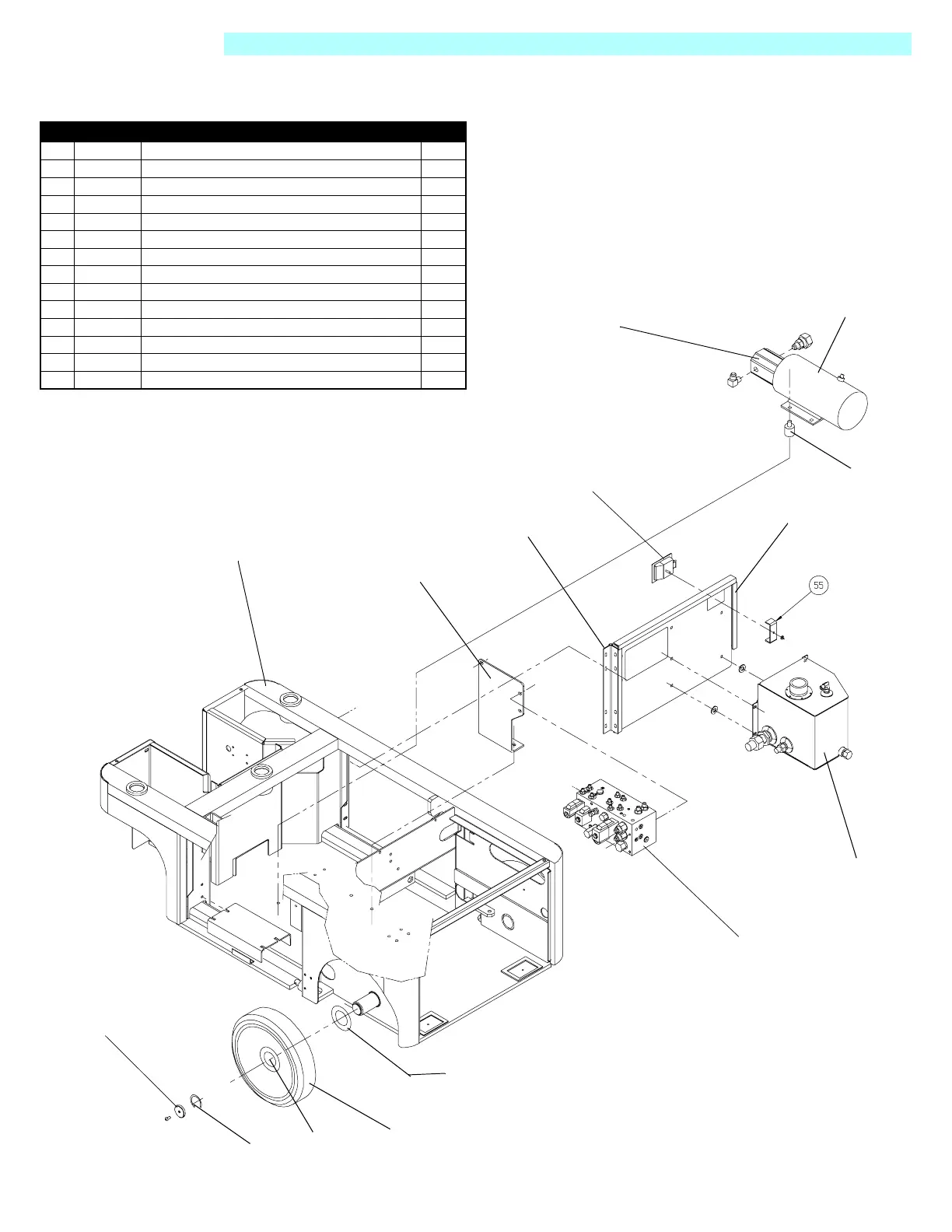

Illustrated Parts Breakdown - Chassis Assembly 3 of 4
505115-000 TM12 PARTS MANUAL
42
41
43
44
46
47
45
48
40
52
51
49
53
73
50
Chassis Assembly 3 of 4
505001-000
ITEM PART NUMBER DESCRIPTION QTY
40 107133-000 CHASSIS WELDMENT REF
41 500477-010 PUMP UNIT (PUMP MOTOR) 1
42 066046-007 VIBRATION MOUNT 4
43 505024-000 LATCH (HINGING DOOR) 1
44 505021-000 DOOR (HINGED) 1
45 505025-000 HINGE 1
46 505013-000 TANK, (HYDRAULIC RESERVOIR) 1
47
503800-000 HYDRAULIC MANIFOLD BLOCK 1
48
505022-000 MOUNTING PLATE, HYDRAULIC MANIFOLD 1
49
505012-000 IDLER WHEEL 2
50
505041-000 BUSHING, SPACER 4
51 505038-000 CIRCLIP 2
52 505027-000 CIRCLIP COVER 2
53 101230-000 PUMP MOTOR 1
