Upright TM 12 Series User Manual

Pa
g
e 6-8

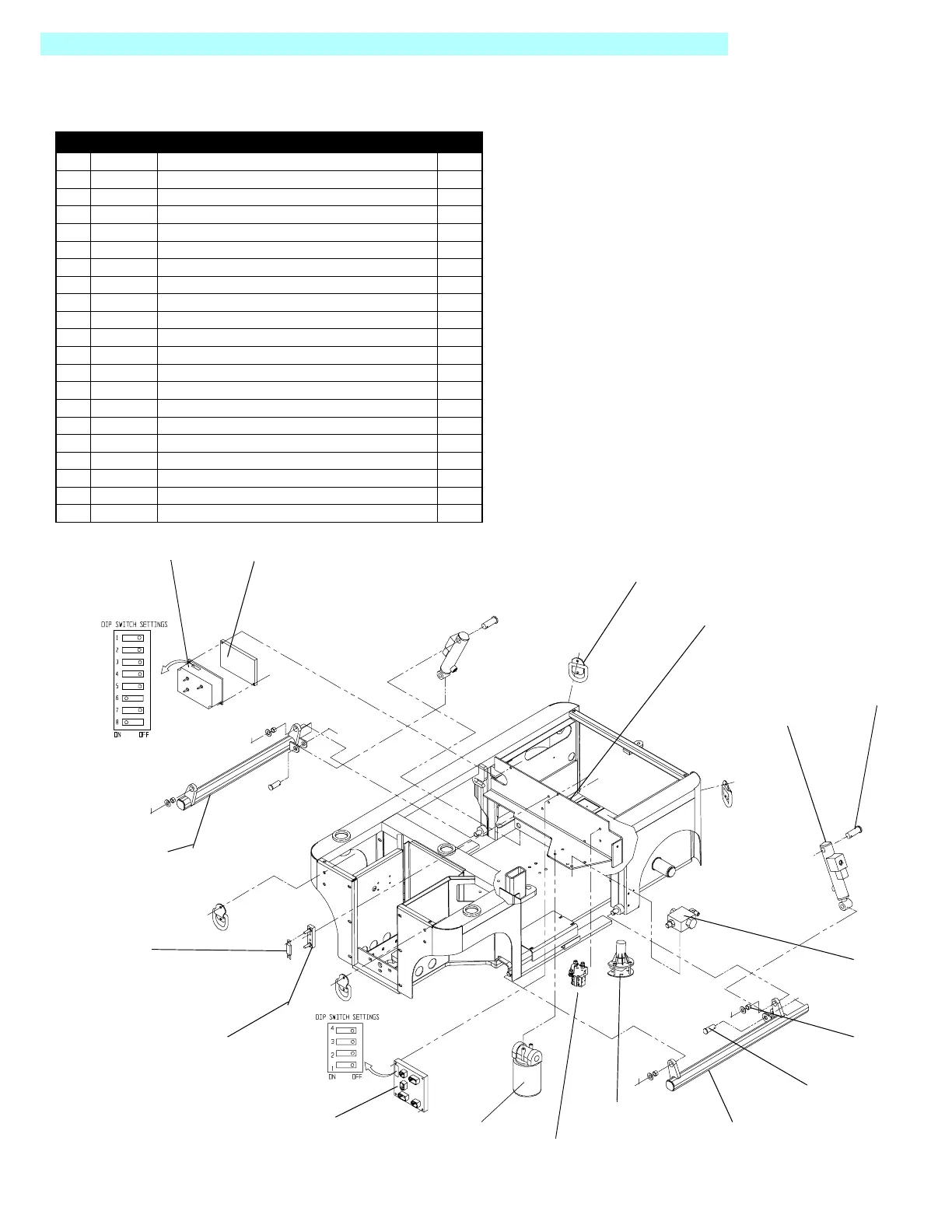

Illustrated Parts Breakdown - Chassis Assembly 4 of 4
505115-000 TM12 PARTS MANUAL
Chassis Assembly 4 of 4
505001-000
ITEM PART NUMBER DESCRIPTION QTY
54 107179-000 POTHOLE WELDMENT-L.H. 1
55 107180-000 POTHOLE WELDMENT-R.H. 1
56 505036-000 HYDRAULIC CYLINDER, POTHOLE 2
- 505036-010 SEAL KIT, POTHOLE CYLINDER -
57 011848-019 PIVOT PIN, POTHOLE CYL - CHASSIS 2
58
011848-036 PIVOT PIN, POTHOLE CYL - POTHOLE WELDMENT 2
59
505111-000 HYDRAULIC BLOCK, FLOW REGULATOR 1
60
057485-000 LINE CONTACTOR 1
61
505051-000 BRACKET, LINE CONTACTOR 1
62 058912-000 TILT SENSOR 1
63 057107-000 FILTER, HYDRAULIC 1
64 065709-001 I/O BOARD 1
65 065708-001 MICRO MOS 1
66 502163-000 HEAT SINK PLATE 1
67 503758-000 PLATE, FUSE MOUNT 1
68 502286-000 MOUNTING POST, FUSE 2
69 058921-000 FUSE 1
70
107080-001 TIE DOWN RING (D-RING) 4
71
505091-000 BRACKET, POTHOLE TEE-PIECE MOUNT 1
72
505044-000 BUSHING, POTHOLE WELDMENT - CHASSIS 4
73
500924-000 BUSHING (FLAT) DIA48mm I/D 2
65 66
70
71
56
57
59
72
58
54
62
60&61
63
64
67&68
69
55
