Transporting the Machine
114110-000 X-Series - Operator Manual Page 11
T RANSPORTING THE M ACHINE
Always use a transport vehicle when moving a machine to a work site. Towing the machine over long dis-
tances will damage the machine and void the warranty.
L IFTING B Y C RANE

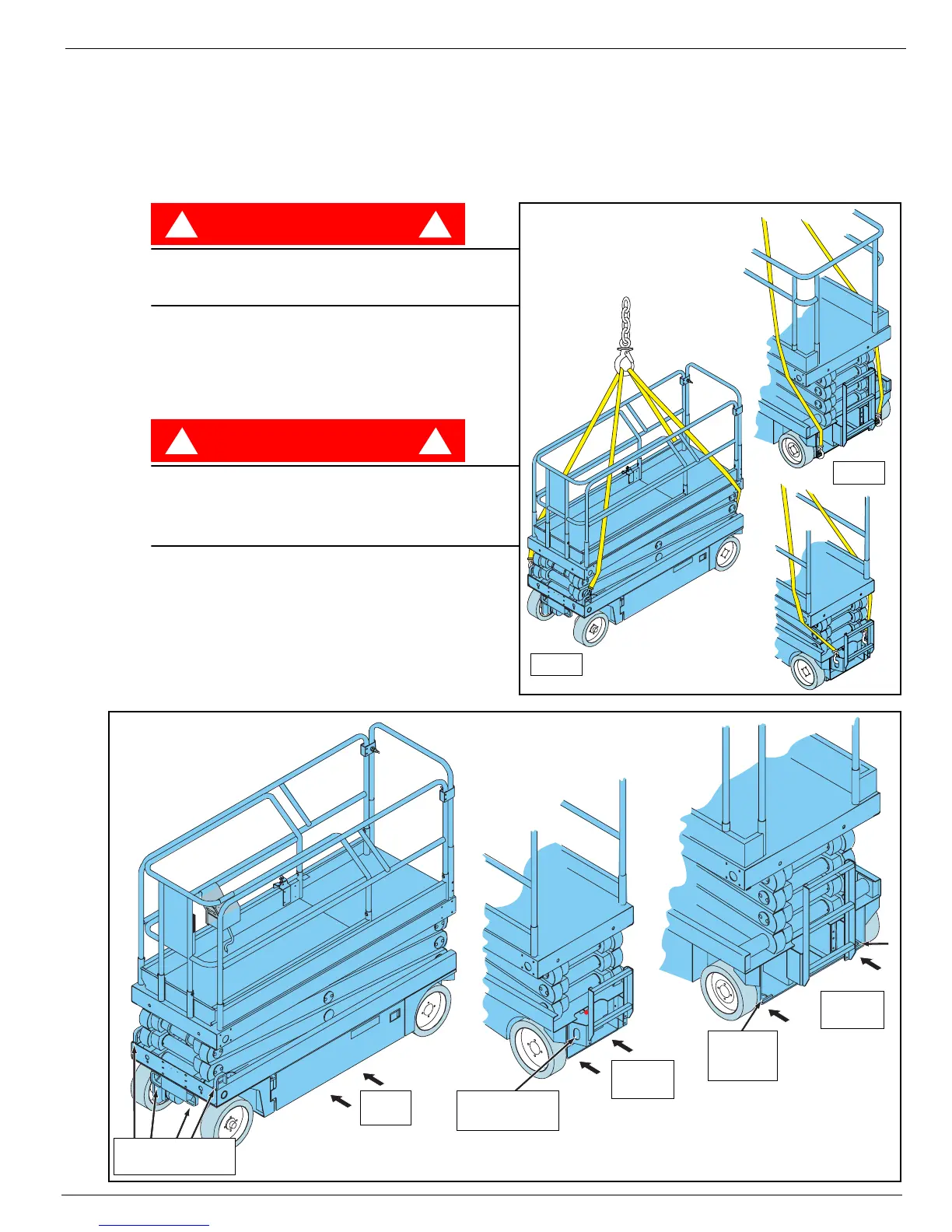

Figure 7:
Secure Crane Straps
DANGER
! !
See specifications for the weight of the machine
and be certain that the crane is of adequate
capacity to lift the machine.
Secure straps to chassis tie down/lifting points
only (see Figure 7).
M OVING B Y F ORKLIFT
DANGER
! !
Forklifting is for transport only.
See specifications for the weight of the machine
and be certain that the forklift is of adequate
capacity to lift the machine.
Forklift from the rear of the machine using the
forklift pockets provided. If necessary, the
machine may be forklifted from the side by lifting
under the Chassis Modules (refer to Figure 8).
Figure 8:
Tie Down and Lift Points
Front
Rear
X20N - X26UN
Rear Tie
Down/Lift
Point
Front Tie Down/Lift
Point
Forklift
Here
Forklift
Pockets
Rear Tie
Down/Lift Point
Forklift
Pockets
X20N - X26UN
