Maintenance
114110-000 X-Series - Operator Manual Page 15
H
YDRAULIC
F
LUID
The hydraulic fluid reservoir is located in the control module door.

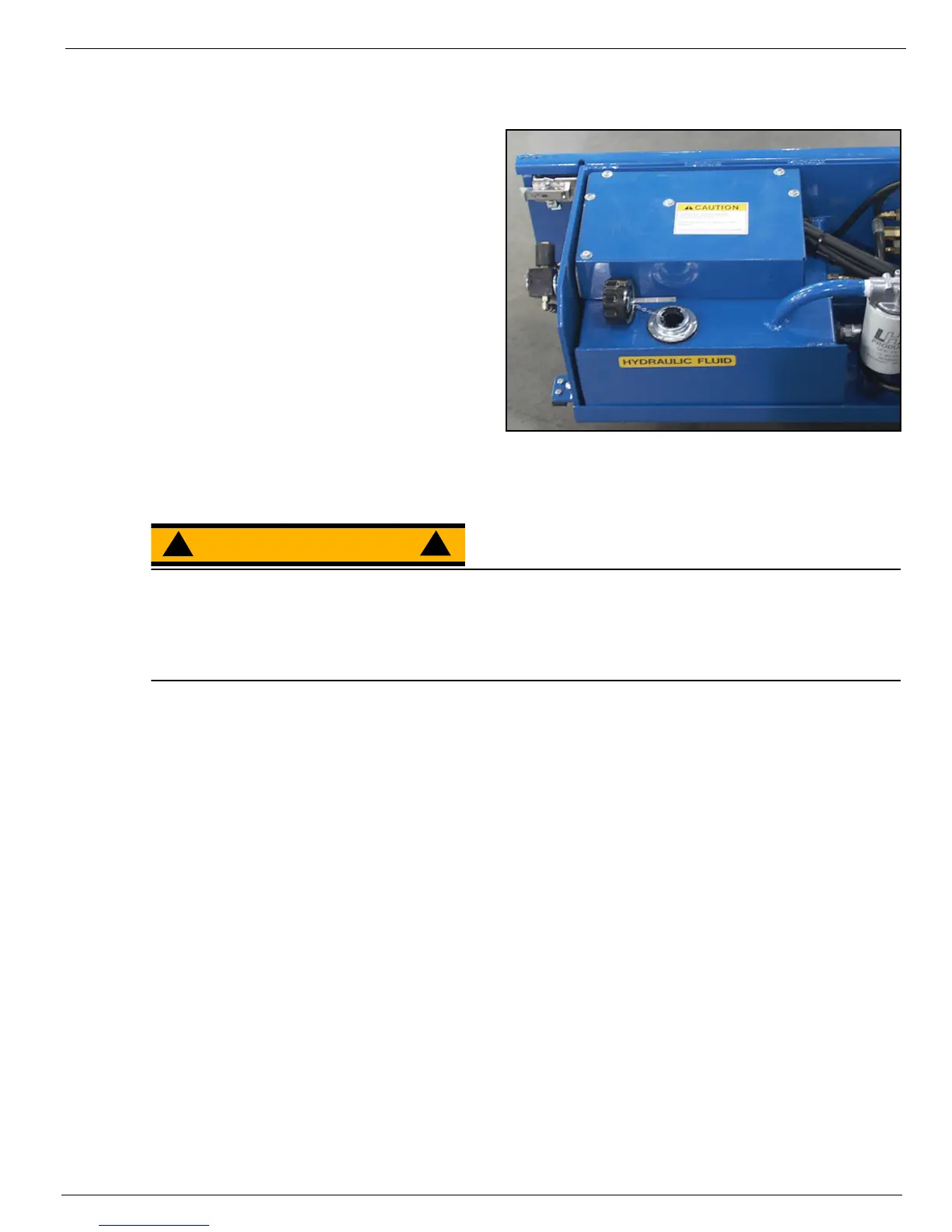

Figure 11:
Hydraulic Fluid Reservoir and Dipstick
NOTE:
Never add fluid if the platform is elevated.
C
HECK
H
YDRAULIC
F
LUID
1. Make sure that the platform is fully lowered.
2. Open the chassis door.
3. Remove the filler cap from the hydraulic fluid
reservoir.
4. Check the fluid level on the dipstick on the
filler cap.
5. Add the appropriate fluid to bring the level to
the FULL mark. See “Specifications” on
page 20.
B
ATTERY
M
AINTENANCE
Hazard of explosive gas mixture. Keep sparks, flame, and smoking material away from batteries.
Always wear safety glasses when working near batteries.
Battery fluid is highly corrosive. Thoroughly rinse away any spilled fluid with clean water.
Always replace batteries with UpRight batteries or manufacturer approved replacements weighing
[X20N - X20W - X26N] 26,3 kg (
58 lbs.
) — [X26UN - X31N] 30 kg (
66 lbs.
) each.
• Check the battery fluid level daily, especially if the machine is being used in a warm, dry climate.
• If electrolyte level is lower than 10 mm
(
3
/
8
in.
) above the plates add distilled water only. DO NOT use
tap water with high mineral content, as it will shorten battery life.
• Inspect the battery regularly for signs of cracks in the case, electrolyte leakage and corrosion of the
terminals.
• Inspect cables regularly for worn spots or breaks in the insulation and for broken cable terminals.
• Keep the terminals and tops of the batteries clean.
• Refer to the Service Manual to extend battery life and for complete service instructions.
