- 21 -

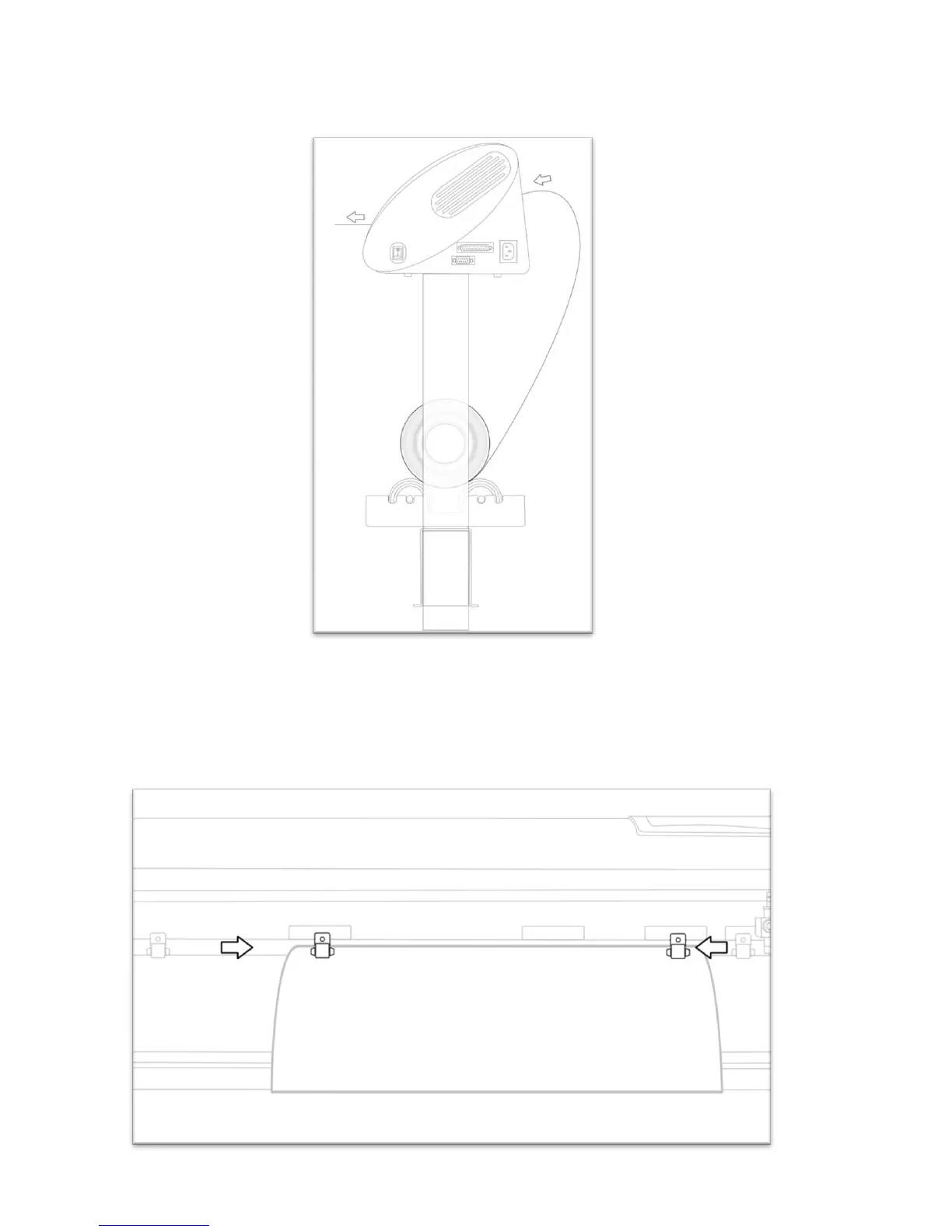

Feed the media through the back of the machine, underneath the pinch rollers (if working from a single sheet
instead of a roll, the material can also be fed from the front).
Adjust the pinch rollers so there is one roller located on each side of the material (and, on models with 3 or
more rollers, one roller near the center). Only lower the pinch rollers where there is a feed roller below. Use
the Feed Roller Guides (page 4) to determine placement of feed rollers.
