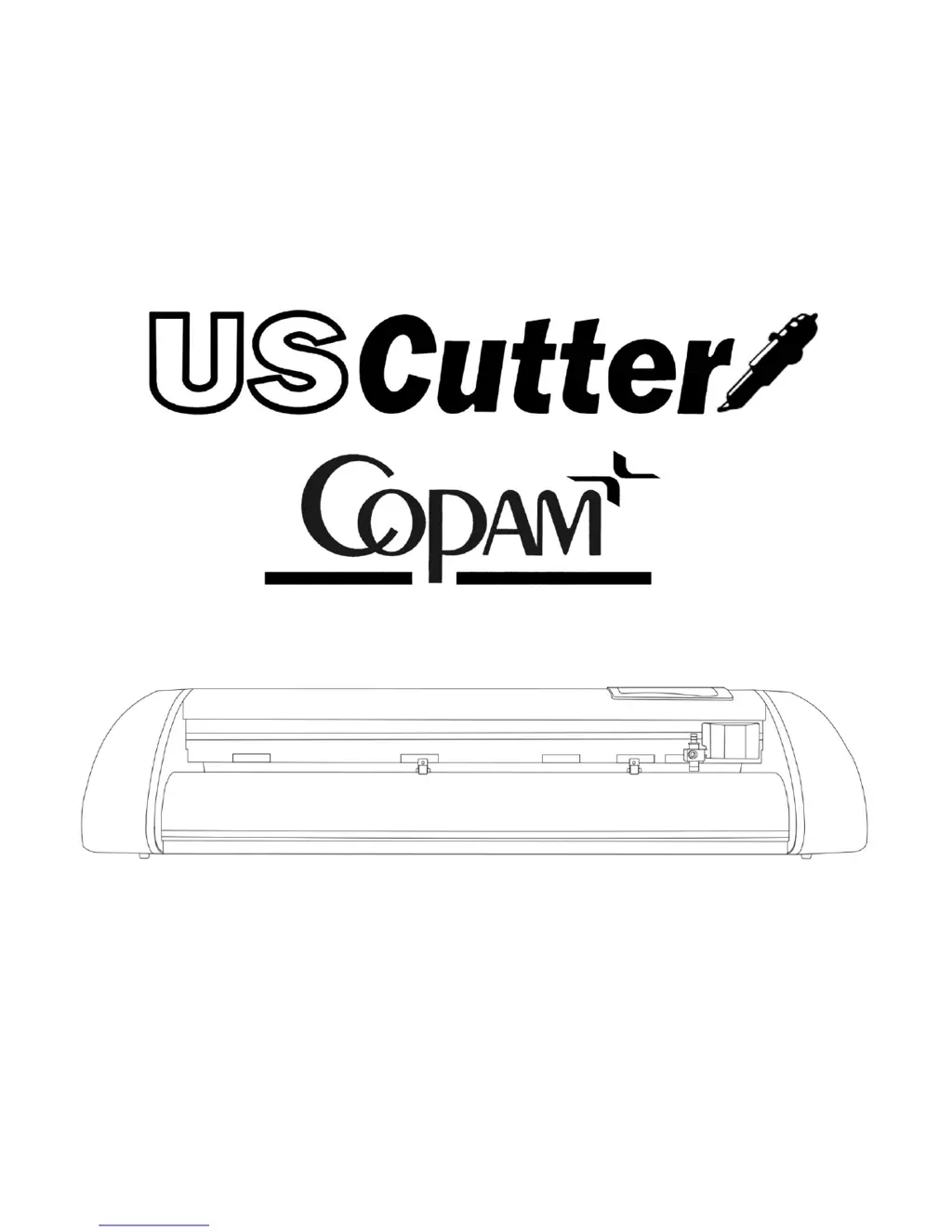

US Cutter Copam - User Manual

US Cutter Copam
50 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

Table of Contents

Questions and Answers

  • D
    Diane PalmerJul 31, 2025
    What to do if my US Cutter Copam Cutter is cutting erratically?
    • J
      John SimonJul 31, 2025
      If your US Cutter cutter is performing erratically, stopping mid-cut, or cutting unintended lines, the USB connection might be the issue. Some computers don't work well with USB connections to cutters. If you're using a USB cable, try a serial cable connection. If a serial connection isn't available, consider using a third-party USB-to-serial connector or a PCI card serial adapter. You can also try another connection method.
  • W
    wperezAug 5, 2025
    How to fix jagged cuts on my US Cutter?
    • M
      Maurice ChaneyAug 5, 2025
      If your US Cutter cutter is producing jagged or inconsistent cuts, the blade may be dull or damaged. Try replacing it with a new blade. Also, ensure the blade can turn freely within the blade carriage. Adjust the blade depth and force settings on the cutter to achieve solid, uniform cuts.
  • R
    Rachel MclaughlinAug 10, 2025
    What causes slashes across vinyl when cutting with my US Cutter?
    • J
      Jonathan DeckerAug 10, 2025
      Slashes across the vinyl during cutting with your US Cutter are often caused by the blade protruding too far from the blade carriage. Adjust the blade so that it extends minimally from the carriage.
  • R
    Robert FloydAug 15, 2025
    Why is my US Cutter Copam Cutter unresponsive to my computer?
    • D
      Deborah GarciaAug 15, 2025
      Communication issues may occur if the US Cutter cutter was powered on while the software attempts to send data. Try exiting the cutter screen in SignBlazer, then return to the main screen. If that doesn't work, save your work, exit SignBlazer, and restart with the cutter already powered on. Also, ensure your software's output device setting is configured to the correct COM/LPT port. You may also need to adjust your COM Port settings (set Flow Control to Hardware). Finally, try a different connection method or replace the cable if necessary.
  • K
    Katherine WoodsAug 20, 2025
    Why won't my US Cutter plotter power on?
    • L
      lhodgesAug 20, 2025
      If your US Cutter plotter isn't powering on, first check that the power cable is securely connected to both the cutter and a grounded power outlet or surge protector. If the connection is secure and there's still no power, the power cord may be damaged. Try another power cord with the cutter, or test the cutter's power cord on a different device. Replace the power cord if necessary.
  • E
    Erika SotoAug 26, 2025
    Why are the media measurements inconsistent on my US Cutter?
    • O
      Olivia OrtizAug 26, 2025
      Inconsistent or incorrect media measurements on your US Cutter can be due to the cutter's light-sensitive sensors. Try redirecting any strong light sources near or pointed at the cutter. Also, make sure the two outer pinch rollers are positioned on opposite edges of the material.

Summary

Cutter Component Overview

Front View

Overview of the cutter's front components and their labels.

Detail of Carriage Arm

Detailed illustration and explanation of the blade carriage mechanism.

Right Side View

Diagram showing the cutter's side panel ports and power switch.

Back View of Pinch Rollers

Illustration of the cutter's rear pinch roller assembly.

Pinch Roller Tension Adjustment

Explanation of how to adjust pinch roller tension using levers and screws.

Control Panel Navigation and Settings

Measure Screen Operation

How to select media type and initiate material measurement on the cutter.

Paper Size Screen Display

Display of cuttable area dimensions after material measurement.

Function Select Screen Options

Accessing measurement, setup, test cuts, and repeat cuts from the main menu.

Setup Screen Adjustments

Modifying speed, force, and blade offset settings for optimal cutting.

Jog Screen for Positioning

Moving the cutter head and material to set a new starting origin.

Pause Screen Functions

Options to pause, resume, setup, or abort a current cutting job.

Setting Up the USCutter

Selecting a Suitable Location

Factors to consider for placing the cutter for optimal performance and stability.

Connecting the Cutter to a Computer

Instructions for connecting the cutter via serial, parallel, or USB cables.

Installing SignBlazer Software

Step-by-step guide to install the SignBlazer cutting software on your computer.

Installing SignCut and Inkscape Software

Procedure for installing SignCut and the recommended Inkscape design software.

Blade Management Procedures

Installing a New Blade

Step-by-step visual guide for properly installing a new cutting blade.

Replacing a Worn Blade

How to safely remove an old blade and install a new one.

Pen Carriage Installation

Installing the Optional Pen Carriage

Guide for attaching the pen carriage for drawing test patterns.

Preparing for Cutting Operations

Loading Media and Releasing Rollers

Steps for placing media rolls and releasing pinch rollers.

Feeding and Adjusting Pinch Rollers

Guiding media and positioning pinch rollers correctly on the material.

Engaging Rollers and Initial Measurement

Securing media with pinch rollers and initiating the measure screen.

Setting the Cut Starting Position

Using the Jog screen to define the origin point for cutting.

Software Workflow and Cutting

Starting SignBlazer for First Use

Initial launch and update process for the SignBlazer software.

Making a Simple Cut in SignBlazer

Creating and sending a basic shape for cutting using SignBlazer tools.

Importing Designs into SignBlazer

Importing various image file types for cutting.

Converting Raster to Vector in SignBlazer

Transforming raster images into vector paths for precise cutting.

Starting SignCut and Inkscape

Initial setup and launch of SignCut and Inkscape software.

Design and Cutting with Inkscape;SignCut

Creating a Simple Design in Inkscape

Step-by-step guide to drawing a basic shape in Inkscape.

Cutting a Simple Design in SignCut

Sending an Inkscape design file to the cutter via SignCut.

Converting Raster to Vector in Inkscape

Using Inkscape's trace feature to convert raster images to vector paths.

Technical Specifications

USCutter CP-Series Cutter Specifications

Detailed technical data including dimensions, speed, power, and interface.

Troubleshooting Common Issues

Cutter Communication and Responsiveness

Solutions for when the cutter does not respond to the computer or software.

Cutting Quality and Consistency Problems

Addressing issues like jagged cuts, slashes, or inconsistent results.

Power, Measurement, and Update Errors

Troubleshooting plotter power, media measurement, and software update problems.
