Multifunctional serial to Ethernet module user manual http://en.usr.cn

Jinan USR IOT Technology Co., Ltd tec@usr.cn

Page 16 /

/ 9

2.8.

2.8. WEB

WEB

WEB to

to Serial

Serial

Serial mode

mode

Communication mode between serial port and web pages.

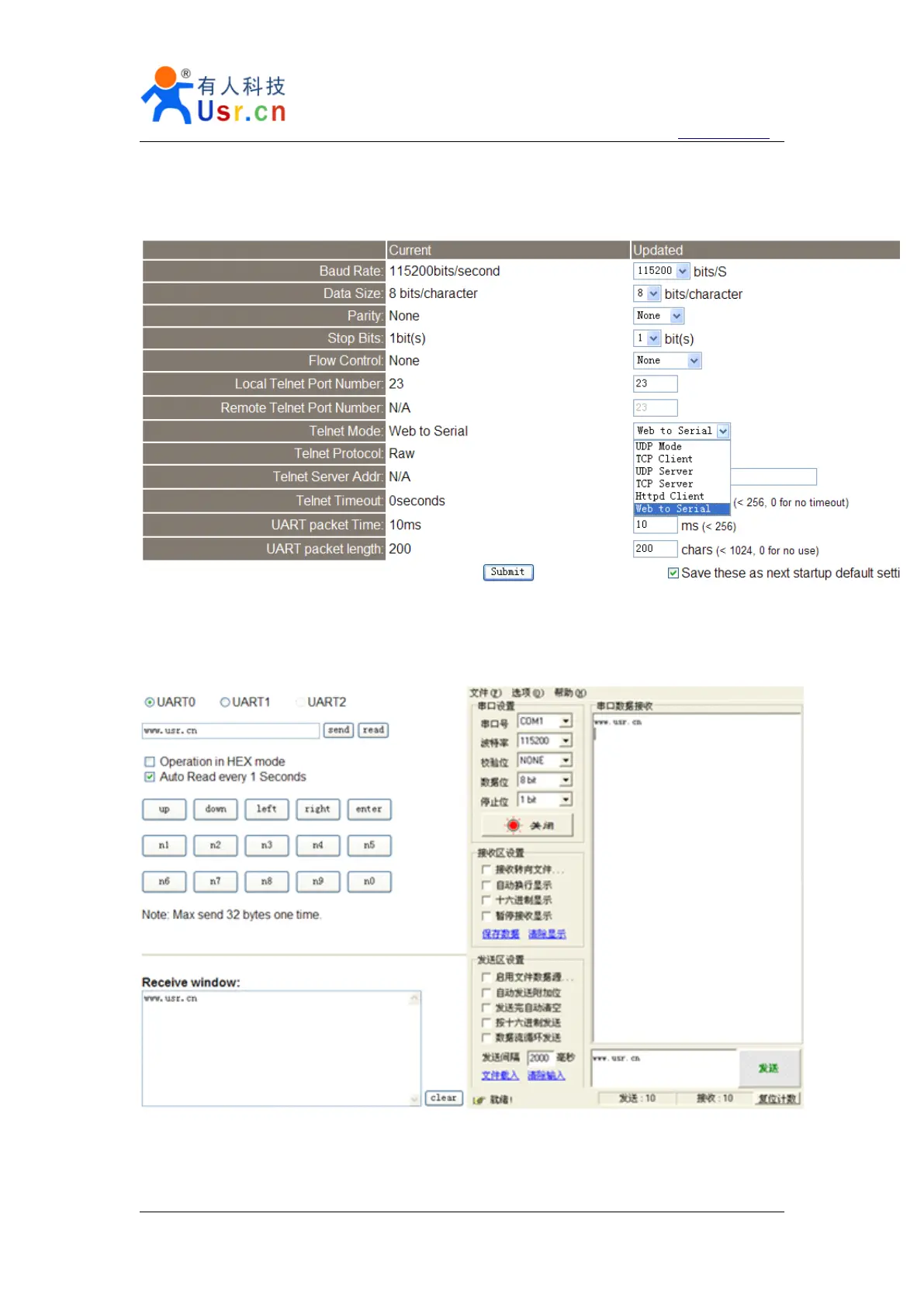

Diagram 2 - 14 config module to WEB to Serial mode

Select Telnet mode Web to Serial ，

Diagram 2 - 15 WEB to Serial communication demo

Note:

1 、 received window show data only when click on “ read ” button or select “ Auto read ” button.
