Multifunctional serial to Ethernet module user manual http://en.usr.cn
Jinan USR IOT Technology Co., Ltd tec@usr.cn
Page 29 /
/
/
/ 9
3.6.
3.6.
3.6.
3.6. USR-TCP232-504
USR-TCP232-504
USR-TCP232-504
USR-TCP232-504
3.6.1.
3.6.1.
3.6.1.
3.6.1. Hardware
Hardware
Hardware
Hardware

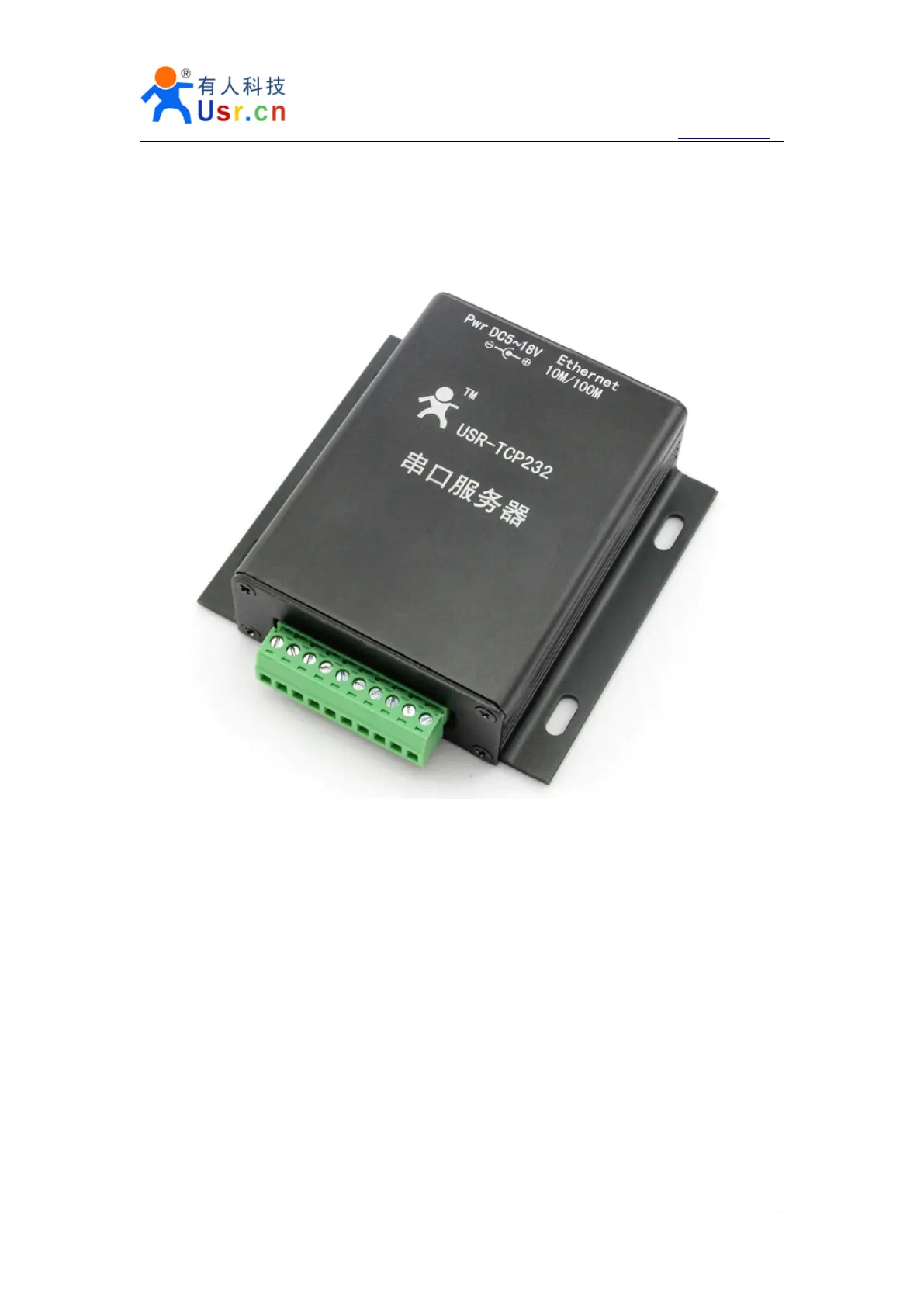

Diagram 3 - 19 USR-TCP232-504
1) Mechanical dimesion : ( L × W × H) 95 × 85 × 25 (mm) , including RJ45 and connector;
2) PCB dimension (L × W): 80 × 50 (mm) ;
3) +5 ~ +18V power input;
4) DC power plug, 5.08 connector power input
5) 3 * serial(3 * RS485)
3.6.2.
3.6.2.
3.6.2.
3.6.2. Power
Power
Power
Power
This system has three power supply interface, a power hub, a 5.08 terminal.
Power supply socket, outer diameter 5.5 mm inner 2.1 mm standard size, inside plus, outside
minus. The input voltage range 5 ~ 48
V,
current 150 MA. We default supply high quality 5 V / 1
A power adapter.
