Multifunctional serial to Ethernet module user manual http://en.usr.cn
Jinan USR IOT Technology Co., Ltd tec@usr.cn
Page 24 /
/
/
/ 9
3.3.5.
3.3.5.
3.3.5.
3.3.5. RS485
RS485
RS485
RS485 /RS422
/RS422
/RS422
/RS422 interface
interface
interface
interface
RS485 two wirings terminal, A
(DATA
+), B (DATA), when connected with RS485, A (+) to
A (+), B (-) to B (-).
RS422 interface also connected to RS232 nine needles binding post. The device have RS232
and RS485 interface, but can only use one in a time, autoadaptation, connect as RS485 is RS485
function, connect as RS422 wiring is RS422 function.
3.4.
3.4.
3.4.
3.4. USR-TCP232-401
USR-TCP232-401
USR-TCP232-401
USR-TCP232-401
3.4.1.
3.4.1.
3.4.1.
3.4.1. Hardware
Hardware
Hardware
Hardware

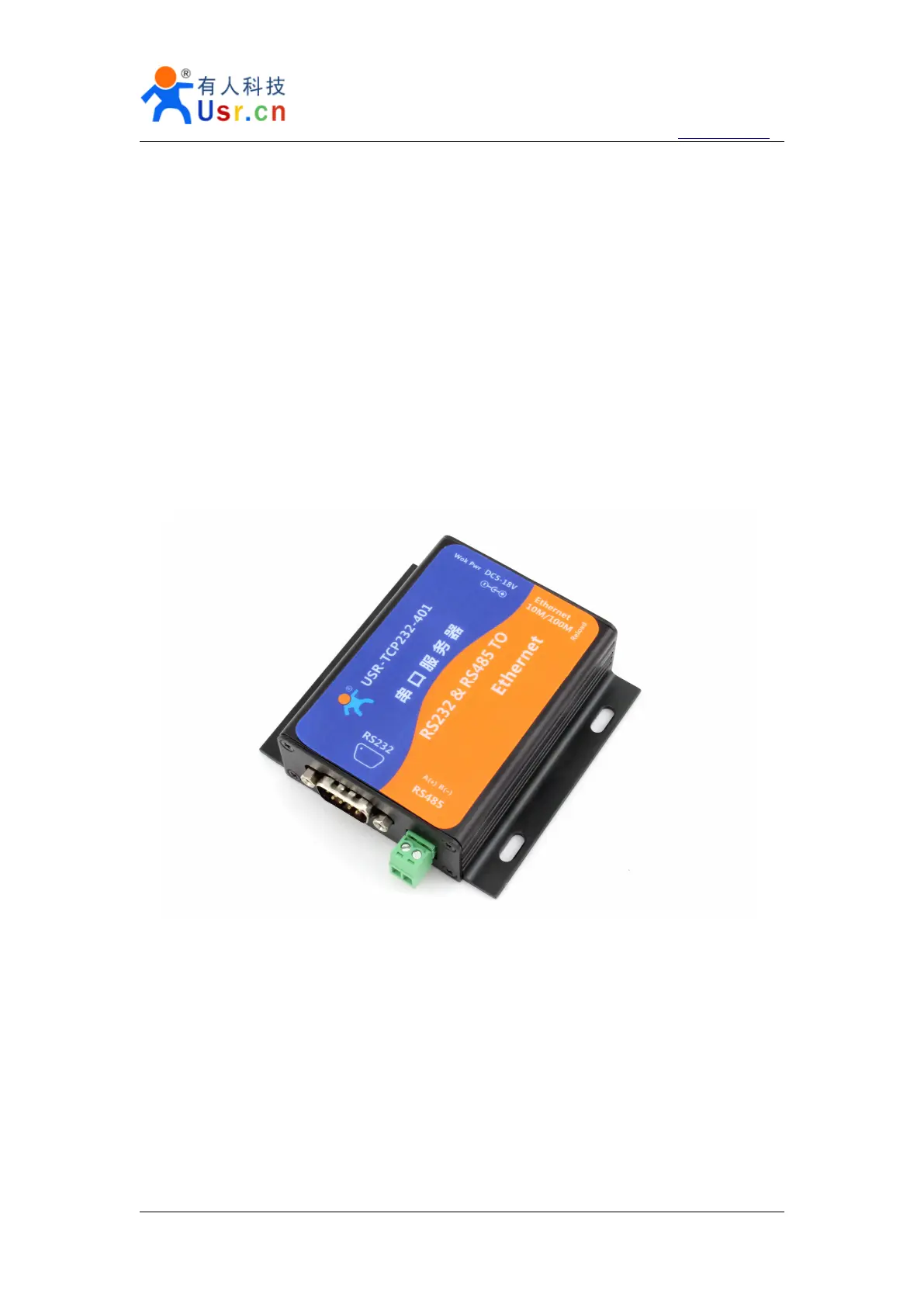

Diagram 3 - 12 USR-TCP232-401
1) Mechanical dimesion : ( L × W × H): 90 × 84 × 2 5 (mm) including RJ45 and connector;
2) PCB dimension (L × W): 80.3 × 50. 3 (mm) ;
3) +5 ~ +18V power input;
4) DC power plug, 5.08 connector power input
5) 2 * serial(1 * RS232, 1 * RS485)
6) 1 * RS232 support hardware flow control
7) 1 * RS485
To Next Page
