i-Line Fitted and Freestanding Furniture
i-LINE 50MM SIDE PANELS WITH FITTED FURNITURE
50mm tops and sides are fitted flush with the back of the units with almost no overhang
around the sides and to the front fascia.
See pages 3 and 4 for installing base units.

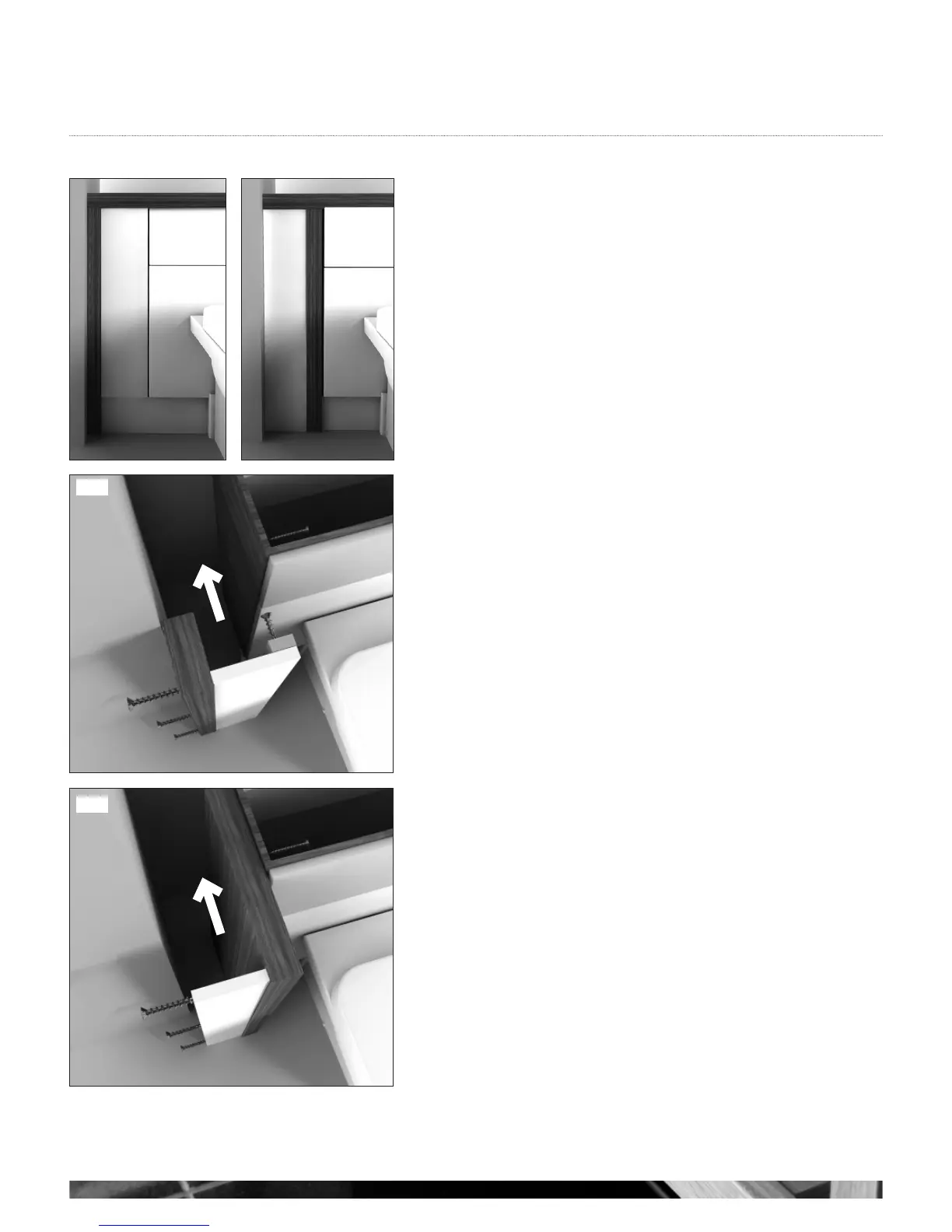

There are two ways of installing 50mm side panels with fitted furniture.
1. With a 50mm side panel and an internal filler panel (see g 1)
Or
2. With an external filler panel and 50mm side panel (see g 2)
FITTING 50MM SIDE PANELS WITH AN INTERNAL FILLER
PANEL AGAINST A WALL
Measure the filler panel and cut to the required width. Should the wall be out of square -
reduce the depth of the 50mm side panel to allow for installation (see g 3 A).
Screw a block to the back of the filler panel and screw the 50mm side panel to the cut
edge of the filler panel (see g 3 B)
Slide all 3 parts into position (see g 3 C) and secure by screwing through the base unit D.
FITTING 50MM SIDE PANELS WITH AN EXTERNAL FILLER
PANEL AGAINST A WALL
Measure and mark the filler panel and cut to the required width. Screw the filler panel to
the 50mm side panel (see g 4 A)
Slide both parts into position (see g 4 B) and secure by screwing through the base unit C.
g 1 g 2
A
B
B
C
D
g 3
A
B
C
g 4
