Utopia Lustre series - Geo; Geo Drawer Unit; Geo Integra Freeflow, and Solid Surface

WWW.UTOPIAGROUP.COM
page 35
Geo

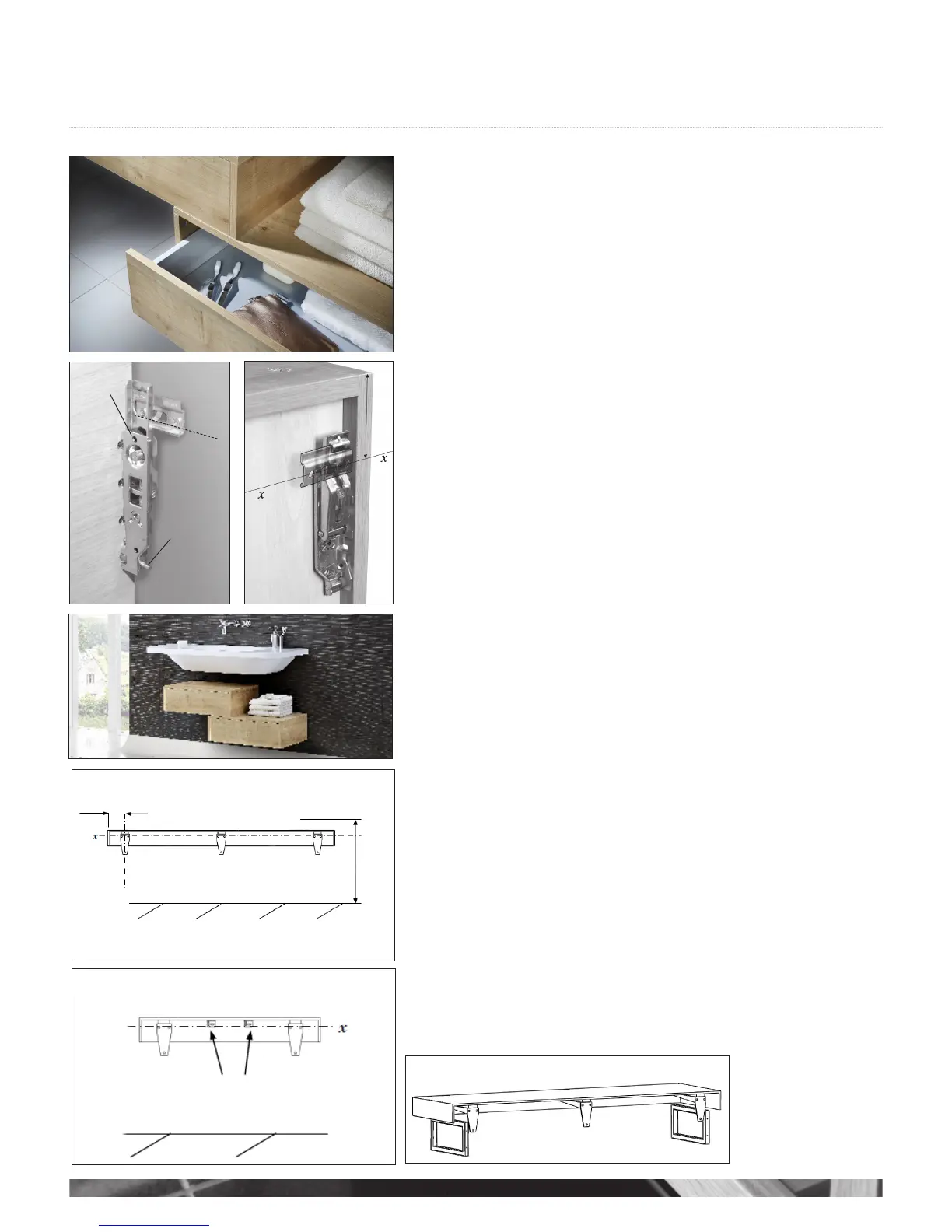

GEO DRAWER UNIT
When fitting this unit draw a line along the length of the wall, level with where the units are
to be fitted at the desired height - X (see g 1 and g 2). Fix the brackets to the wall with
appropriate plugs and screws for your wall type (not supplied). The units then simply hook
onto the wall fixed brackets.
Adjustment to gain a level surface as follows.
A. Adjust this to pull the cabinet into the wall.
B. Adjust this to move the cabinets up or down (see g 1)
Pull the cabinets tightly in against the wall using the adjustment screws on the brackets and
hangers (as shown in g 1 and g 2).
For extra support a screw can be fitted into the wall through the hole in the cabinet hanger
(as shown in g 1).
The stretcher plate fitted at the base of the unit also needs to be fixed to the wall, this will
give stability to the unit and secure it from being lifted up and away from the wall.
For drawer adjustment see page 5.
GEO INTEGRA FREEFLOW, AND SOLID SURFACE
Geo Integra, Geo Solid Surface with or without a basin. Also the Free Flow basin.
The height from floor to the top of the basin is recommended at 900mm (see g 3).
Geo FreeFlow top and basin. This is supplied with a template which will positon the wall
fixing points. An overall height from floor to the surface of 900mm, fixing to wall with
appropriate plugs and screws for your wall type. (Not supplied).
Mark a line along the wall as X in (g 3). This line to suit the top holes in the main fixing
brackets.
Three brackets for the 1600mm, two brackets for the 1200mm and 800mm this also has
two stretcher brackets fitted either side of the tap hole, which will support the worktop.
(g 4). Fixing with the appropriate plugs and screws for your wall type. (Not supplied).
You sometimes are supplied with two chrome towel brackets, these fit beneath the
worktop to give easy access for hanging towels if required (g 5). Also note they are NOT
worktop supporting.
For fitting a basin into the worktop follow the template supplied with your basin and other
notes are on page 40.
Underslung basins cannot be fitted into this worktop.
g 2
TOP OF UNIT
level line
securing pin
A
in +
out
up +
down
B
g 1
extra screw
to be fitted
g 3
g 4
g 5
recommended height of 900mm
from floor to top of basin
recomended 100mm
1200 and 800 Geo-stone
stretcher brackets
