page 22
i-Line Wall and Frameless Mirror Unit
i-Line Modular Units
FITTING WALL UNITS
See page 9 of these instructions.

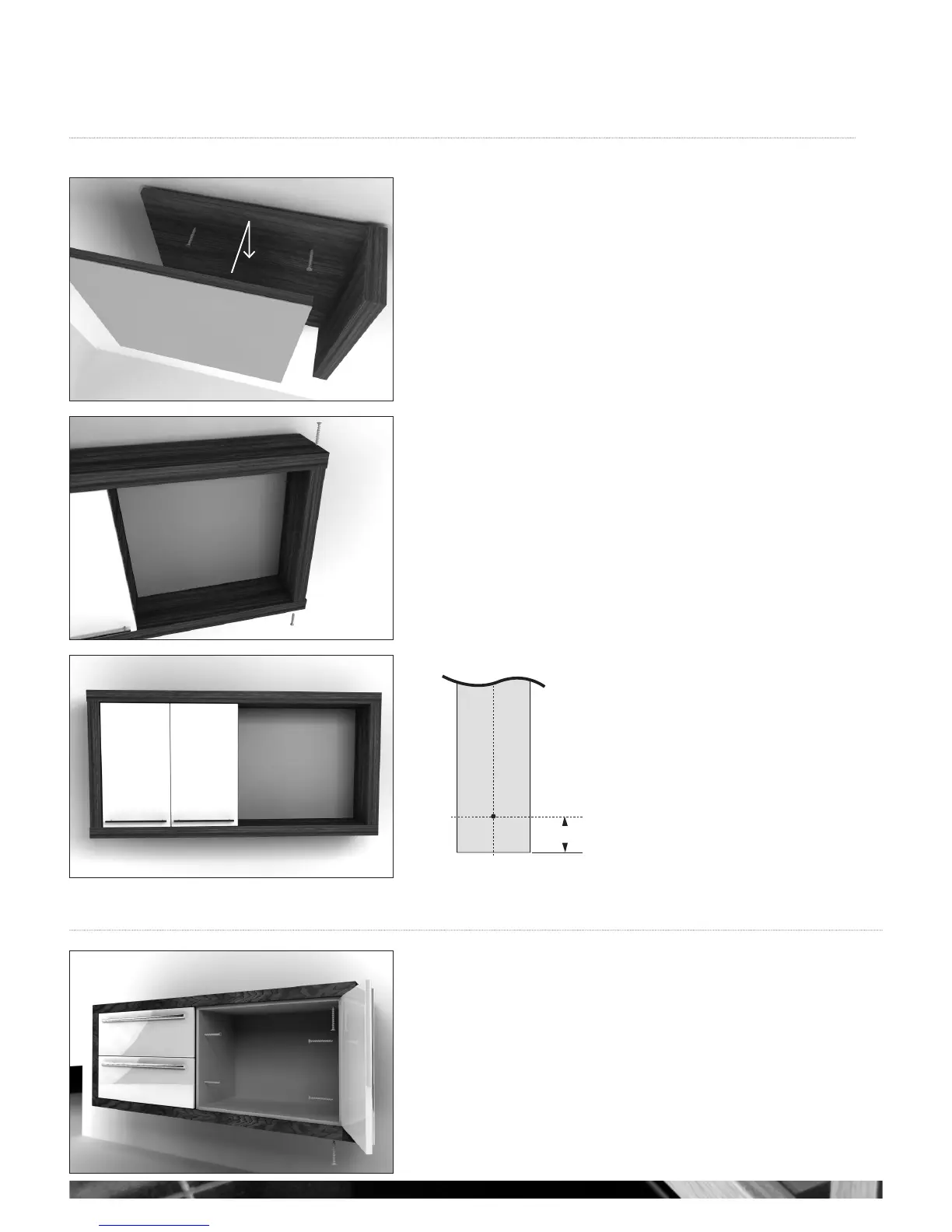

FITTING AN i-LINE FRAMELESS MIRROR UNIT
The frameless mirror is held onto the backboard with an integrated 50mm side panel with
two keyhole grommets. Remove the mirror by carefully lifting it up and away from the back-
board and put to one side.
Put the Backboard into position and fix to the wall using appropriate fixings, (see g 1).
Replace the mirror onto the backboard before fixing the 50mm flyover panel.
Screw the 50mm side panel near the front through the top and bottom panels using 3”
screws and cover caps (supplied), (see g 2) and (see g 2A).
FITTING SUGGESTION
To help fitting we suggest that you fit i-Line wall configurations in the following order:
1. Wall units and 50mm side panel (see g 3 A).
2. 50mm i-Line shelf that runs under the units (see g 3 B).
3. i-Line mirror unit with 50mm side panel (see g 3 C).
4. 50mm i-Line flyover that runs over the units (see g 3 D).
I-LINE MODULAR UNITS
See page 14 for the fitting of wall hung modular units.
Twin units will need to be screwed together. The 50mm x 100mm base rail is screwed from
the under side of the units with the 2 ½” screws supplied. Use the 1 ¼” screws to fix into
the 50mm side panels. The 1” screws are to screw the two units together. All screws can
now be capped. FIx the worktop in the usual manner.
g 1
g 2
g 2a
see also
g 2a below
g 3
AA
B
C
D
front edge
screw position
centre of panel
25mm
50mm mirror
side panel
