Worktops
50mm Decorative Floating Shelf with Adjustable Support
Draw a horizontal line on the wall at the desired height X (see g 1).
Fix the concealed shelf supports to the wall using appropriate fixings for the wall type
(not supplied).
Once the bracket is in position, final adjustment can be achieved as follows:
Height - Adjust A via slots
Inclination - Adjust using adjusting screws (B) that press on the rear plate.
Lateral - Adjust by lifting the support pin (C) and moving left or right.
We suggest applying a bead of good quality silicone along the top back edge of the shelf to
enhance a secure fit once the shelf is finally pushed into place. (see g 2).

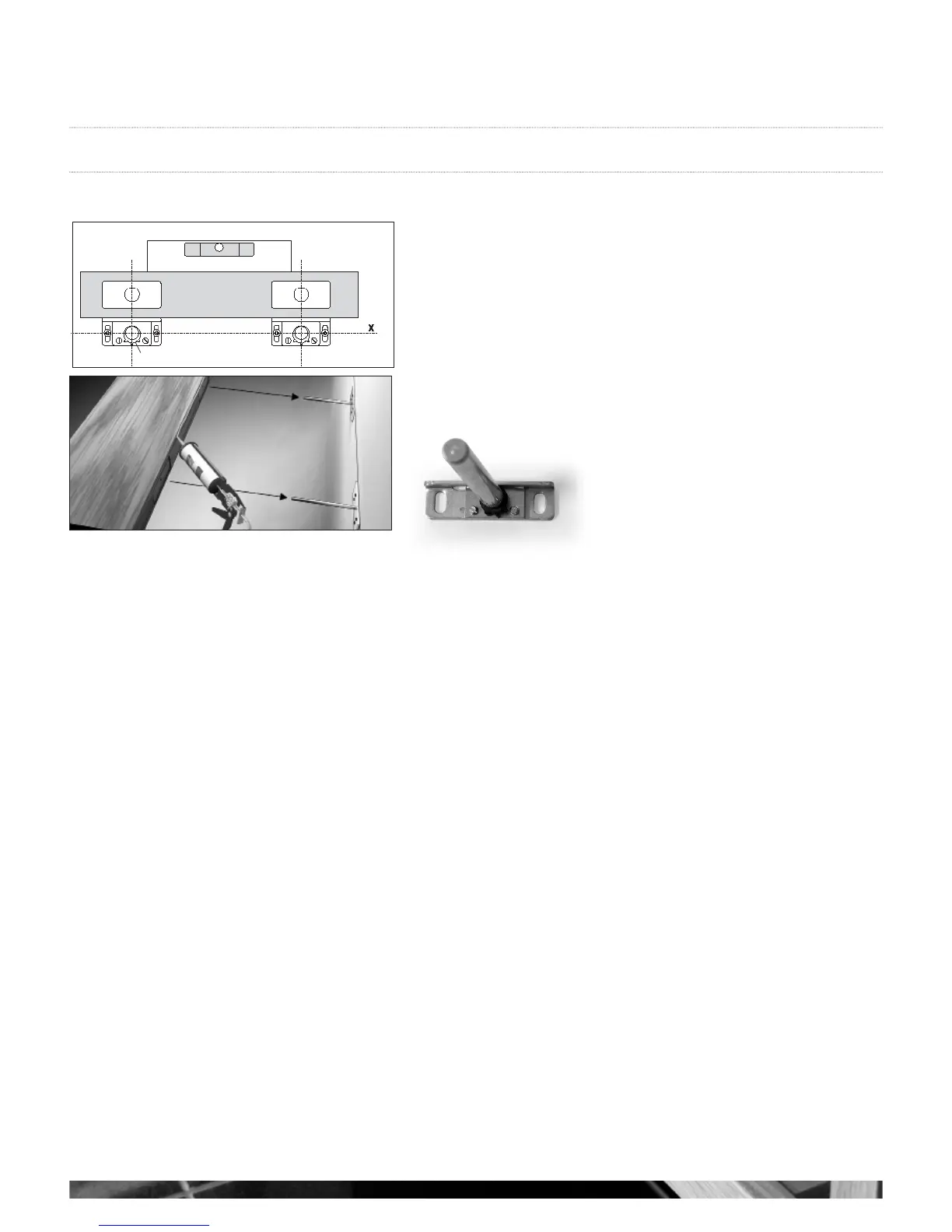

g 1
A
BB
C
Shelf
Spirit Level
g 2
