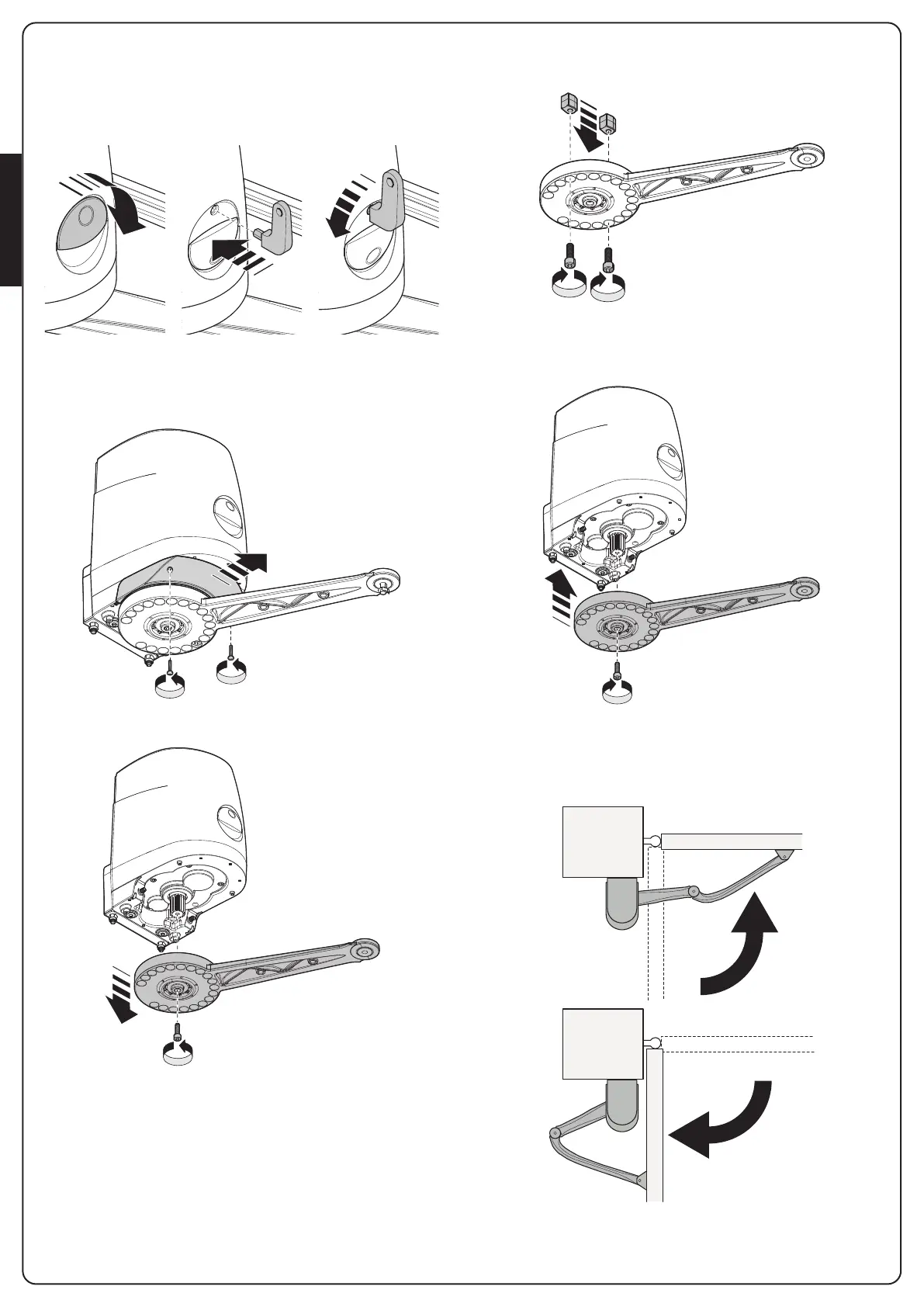

3.5 - INSTALLATION AND ADJUSTMENT OF
THE MOTOR LIMIT SWITCHES
1. Release the gear motor
2. Remove the 2 screws underneath the motor and remove the
cover
3. Unscrew the screw in the motor arm and remove it
4. Fix the limit switches on the motor arm; these must also be
installed in the presence of mechanical stops on the ground
5. At this point re-install the arm onto the motor
6. Manually verify that, when opening and closing, the gate leaf
stops at the desired points
Opening
Closing
Closing
Opening
