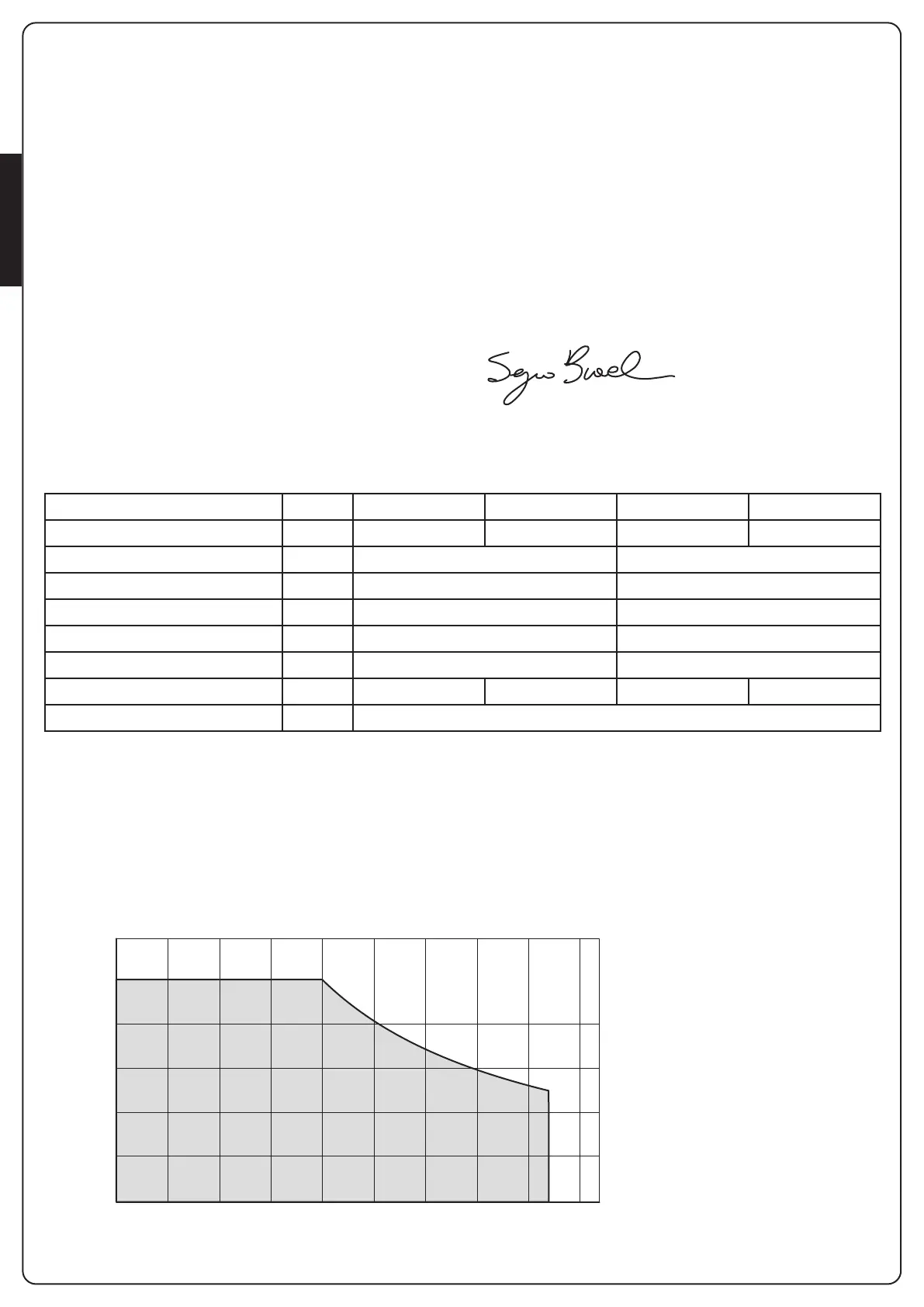

Page #6 background imageLoading...
Page #6 background image
ENGLISH
- 38 -
1.3 - EU DECLARATION OF CONFORMITY
AND DECLARATION OF INCORPORATION OF
PARTLY COMPLETED MACHINE
Declaration in accordance with Directives: 2014/35/UE (LVD);
2014/30/UE (EMC); 2006/42/CE (MD) ANNEX II, PART B
The manufacturer V2 S.p.A., headquarters in Corso Principi di
Piemonte 65, 12035, Racconigi (CN), Italy
Under its sole responsibility hereby declares that:
the partly completed machinery model(s):
ZORUS2-S, ZORUS2-M, ZORUS4-S, ZORUS4-M
Description: electromechanical actuator for gates
is intended to be installed on gates, to create a machine
according to the provisions of the Directive 2006/42/EC.
The machinery must not be put into service until the final
machinery into which it has to be incorporated has been
declared in conformity with the provisions of the Directive
2006/42/EC (annex II-A).
is compliant with the applicable essential safety requirements
of the following Directives:
Machinery Directive 2006/42/EC (annex I, chapter 1)
Low Voltage Directive 2014/35/EU
Electromagnetic Compatibility Directive 2014/30/EU
Directive ROHS3 2015/863/EU
The relevant technical documentation is available at the national
authorities’ request after justifiable request to:
V2 S.p.A.
Corso Principi di Piemonte 65, 12035, Racconigi (CN), Italy
The person empowered to draw up the declaration and to provide
the technical documentation:
Sergio Biancheri
Legal representative of V2 S.p.A.
Racconigi, il 01/06/2019
ZORUS2-S ZORUS2-M ZORUS4-S ZORUS4-M
Power supply Vac / Hz 24 Vdc 230 - 50 24 Vdc 230 - 50
Maximum power (2 motors) W 280 350
Speed Rpm 1,5 1,5
Torque N m 650 760
Working temperature °C -20 ÷ +55 -20 ÷ +55
Working cycle % 80 80
Motor weight Kg 7,5 7,5 7,5 7,5
Protection IP 44
2 - TECHNICAL DATA
2.1 - USE LIMITATIONS
Before installing the product, check that the size and the weight
of the gate leaf are within the limits stated in chart.
kg - Maximum gate leaf weight
mm - maximum gate leaf length
m WARNING! The single leaf must not exceed 4.2m in
length
100
200
300
400
500
500 1000 2000 35003000 40002500 45001500
(mm)
(kg)
