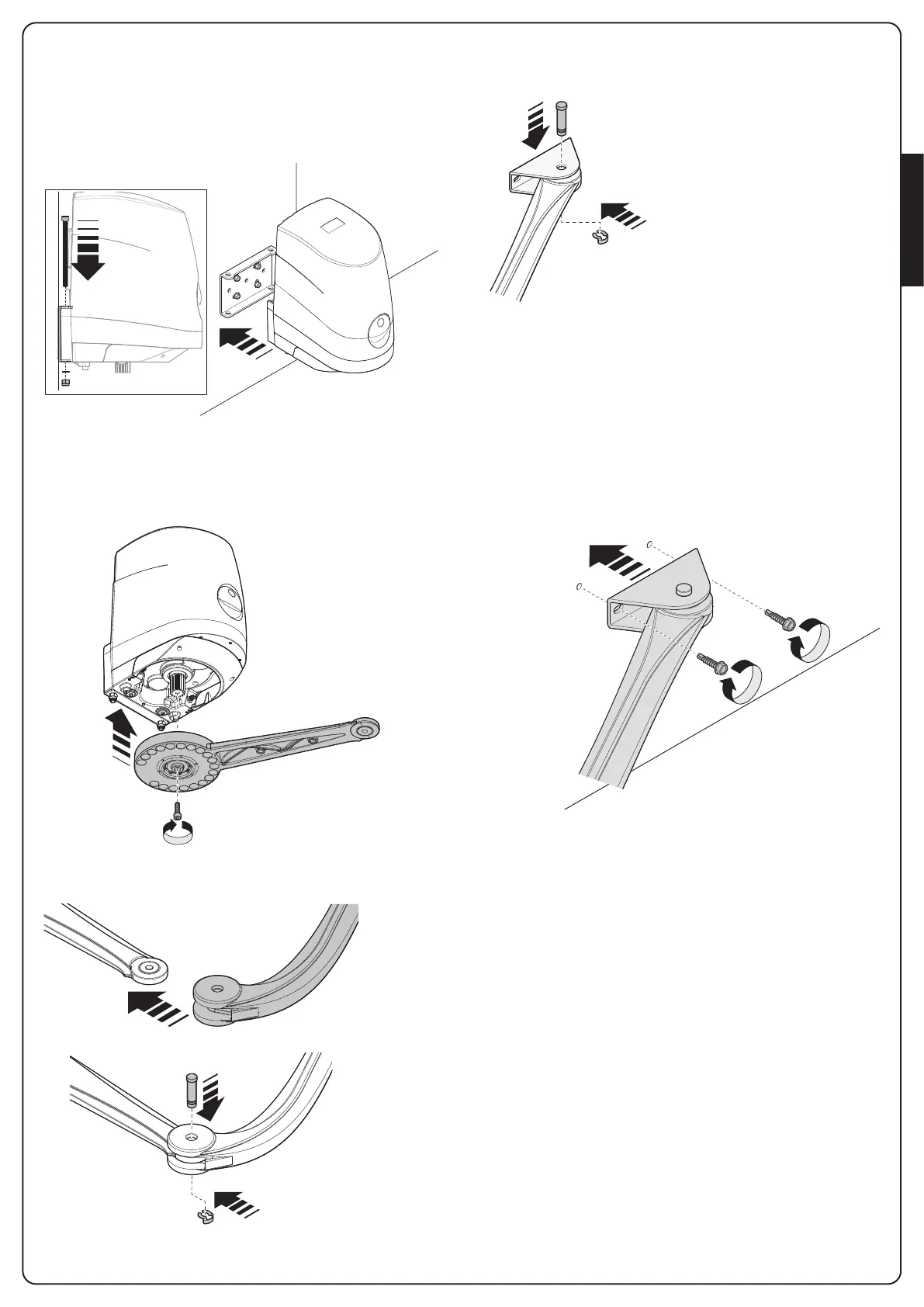

3.3 - SECURING THE GEAR MOTOR TO THE

FIXING BRACKETS

Secure the gear motor to the rear bracket:

1. Secure the gear motor to the bracket using the screws,

washers and nuts supplied

2. Fully tighten the nuts to the screws

Install the arms onto the motor:

1. Secure the arm onto the gear motor using the screw

2. Fix the two arms to each other using the pin and the seger

Secure the gear motor to the front bracket:

1. Secure the gear motor arm to the bracket using the pin and

seger supplied

2. Tighten the seger fully onto the pin seat

3.4 - INSTALLATION OF THE FRONT FIXING

BRACKET

1. The front bracket must be secured to gate leaf

2. Deﬁne the front bracket position height

3. Fix the bracket to the solid section of the gate leaf
