ENGLISH
- 39 -
3 - INSTALLATION OF THE MOTOR

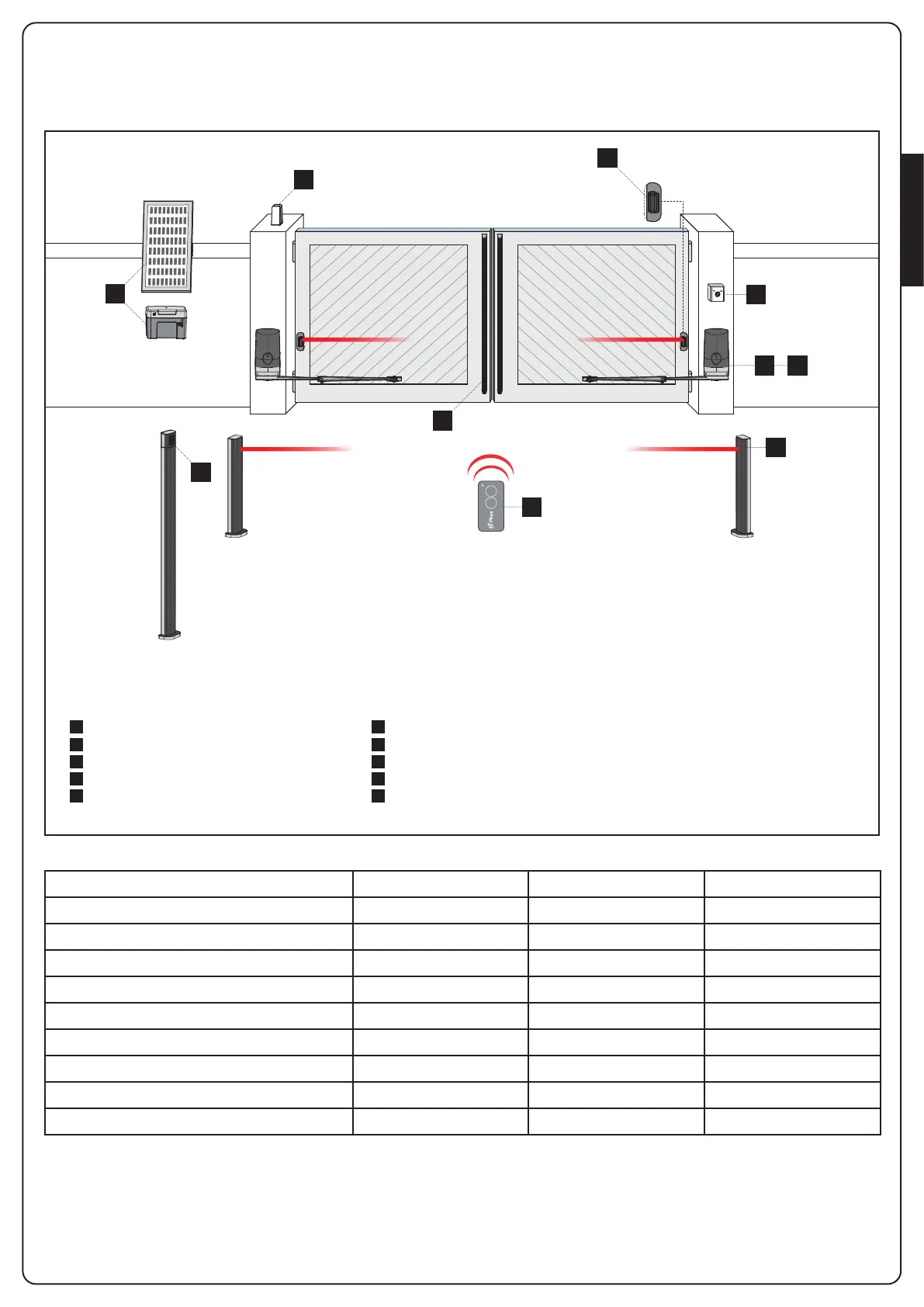

3.1 - INSTALLATION LAYOUT
1 3
5
4
A
B
2
C
D
E
LENGTH OF THE CABLE < 10 metres from 10 to 20 metres from 20 to 30 metres
Power supply 230V 3G x 1,5 mm
2
3G x 1,5 mm
2
3G x 2,5 mm
2
SLAVE motor power supply 2G x 1,5 mm
2
2G x 1,5 mm
2
2G x 2,5 mm
2
Photocells (TX) 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
Photocells (RX) 4 x 0,5 mm
2
4 x 0,5 mm
2
4 x 0,5 mm
2
Key switch 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
Flashing light 2 x 1,5 mm
2
2 x 1,5 mm
2
2 x 1,5 mm
2
Antenna (integrated into the flashing light) RG174 RG174 RG174
ECO-LOGIC (accumulator unit) 2 x 1,5 mm
2
- -
ECO-LOGIC (solar panel) 2 x 1 mm
2
- -
A
B
C
D
E
1
2
3
4
5
Key switch
Pillar photocells
Pillar-mounted digital radio switch
Safety edges
ECO-LOGIC
Motor
Transmitter
Receiving module
Photocells
Flashing light
COMPONENTS ADDITIONAL ACCESSORIES
