INSTALLATION
Note: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
Please keep the original package in a safe place for future use.

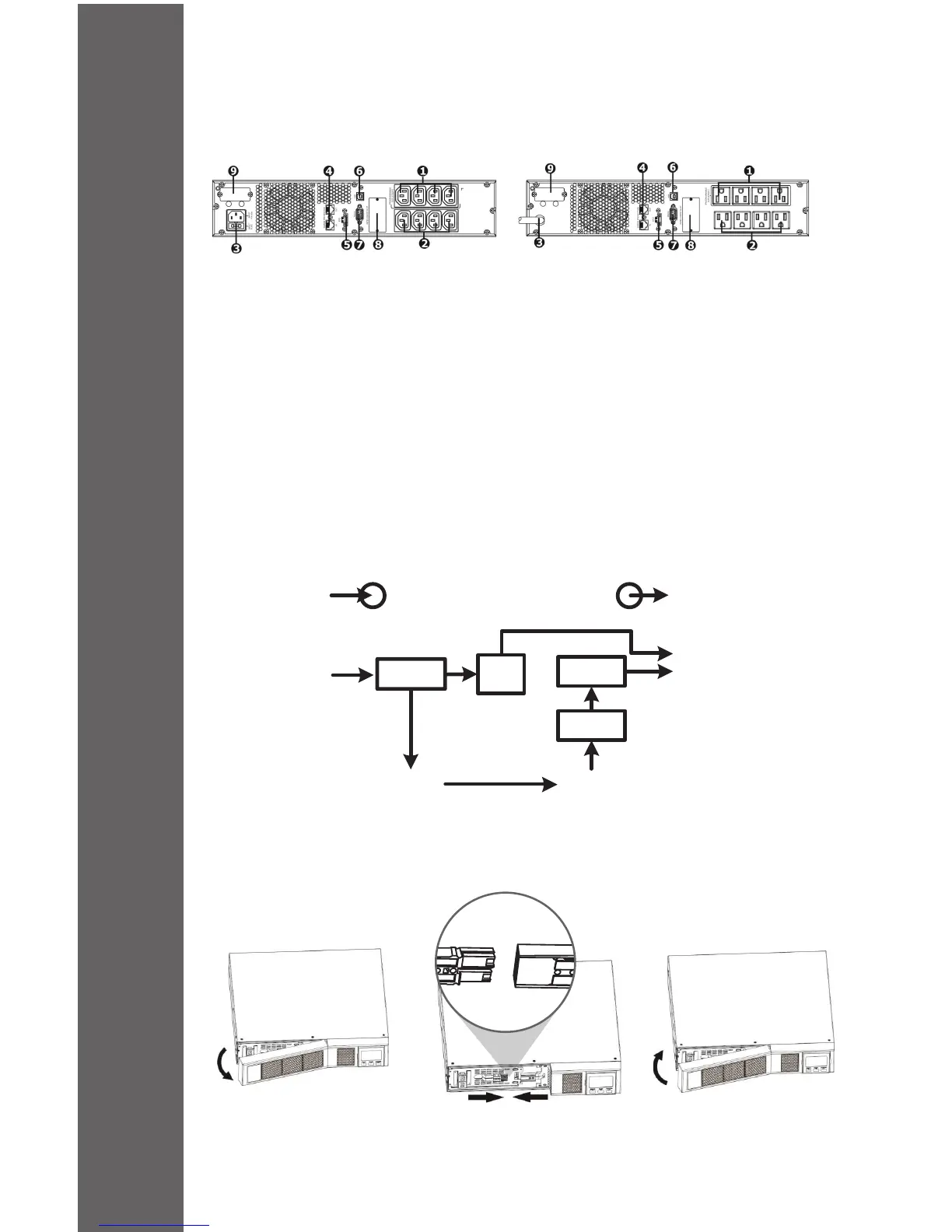

1.1 Rear Panel View
IEC Type NEMA Type
The UPS is composed of mains input, EMI/RFI Filters, Inverter, Battery charger, DC-to-DC converter, battery,
AVR TX and UPS output
1.2 Operation
EMI/RFI
Filters
Battery
Charger
Battery
DC-to-DC
Converter
Inverter
AVR
TX
Output
For safety consideration, the UPS is shipped out from factory without connecting battery wires. Before
installation of the UPS, please follow the steps below to re-connect the battery wires.
1.3 Installation
Remove Front Panel Connect the AC Input and re-connect
battery wires
Put the front panel back
on the unit
1. Programmable outlets: connect to non-critiacal loads.
2. Output receptacles: connect to mission-critical loads
3. AC input
4. Network/Fax/Modem surge protection
5. Emergency power o function connector (EPO)
6. USB communication port
7. RS-232 communication port
8. SNMP intelligent slot
9. External battery connector
