V7 UPS1RM2U1500 - Rack and Tower Mounting; Rack-Mount Installation; Tower Installation

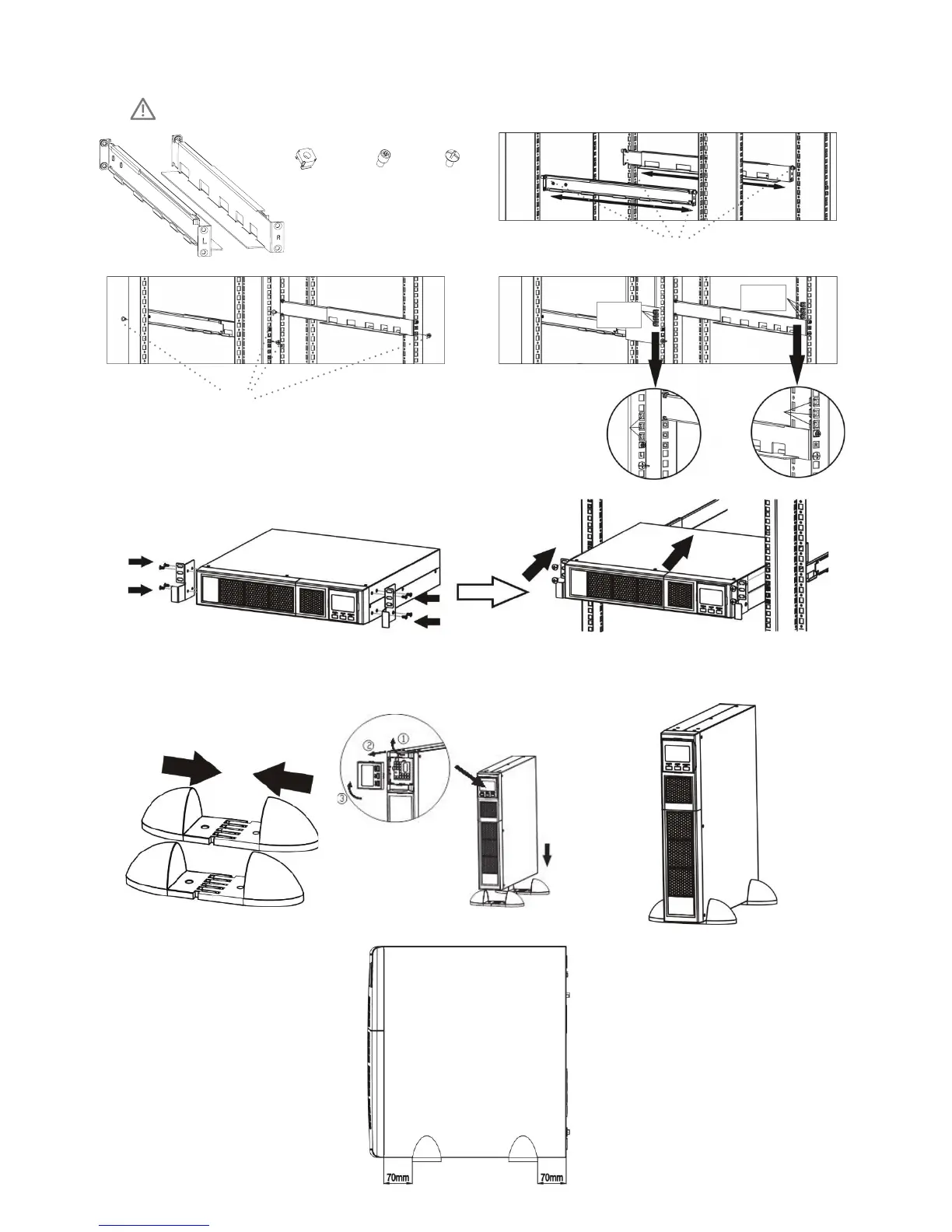

Rack-Mount Installation
Caution! – DO NOT use the mounting brackets to lift the unit. The mounting brackets are only
for securing the unit to the rack.
Tower Installation
1 2 3
Note: When installing the
UPS or battery pack with feet,
please keep 70mm distance
from the edge of the unit
M6
Screws
3 Cage
Nuts
3 Cage
Nuts
Fixing
Studs
Cage
Nuts (6)
Fixing
Studs (4)
M6
Screws (8)
