6.2 Mechanical dimensions

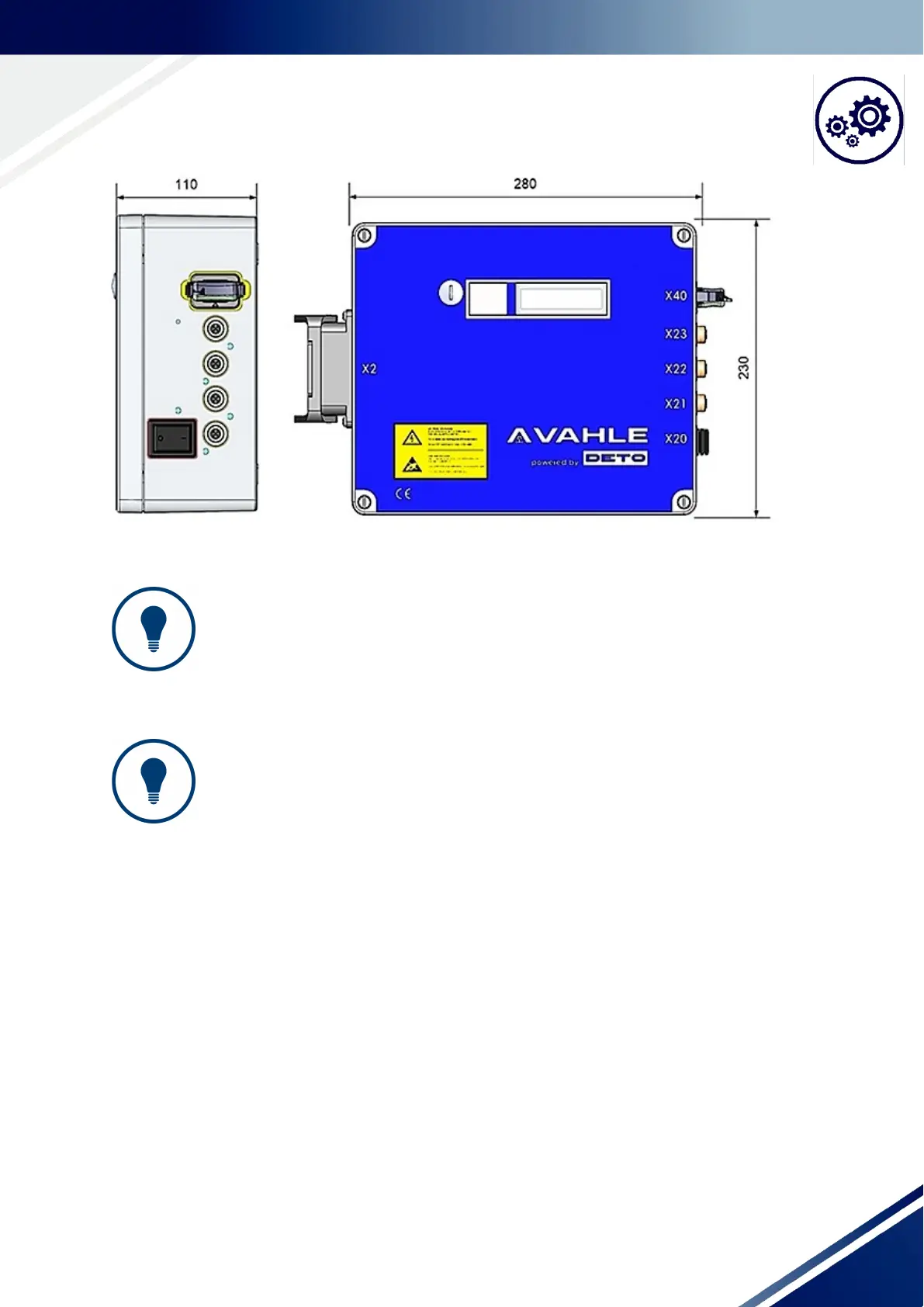

Fig. 6-1 Dimensions DCS1 standard control systems up to 1.1 kW, dimensions in [mm]
TIPS AND RECOMMENDATIONS!
Information about the dimensions for DCS1 control systems with 1.5 kW converter
An additional heat exchanger is mounted at the rear for DCS1 control systems with a
1.5 kW converter. The dimensions of this variant are: 280X230x140 mm incl. heat ex-
changer.
TIPS AND RECOMMENDATIONS!
Information about the standard dimensions
The dimensions described above are applicable for the standard configuration of
DCS1 control systems. For example, if additional IOs are needed, then the dimension
of this control system can deviate. Please refer to the specific documents of your con-
trol system.
