Vaillant ecoTEC plus Installation Manual

System overview of concentric system Ø110/160mm
Installation manual for the flue pipe for ecoTEC plus 0020137851_02 9
4
4.2 Product range
Product range Art. no.
Vertical roof duct, black (RAL 9005) 0020166853
Horizontal wall/roof duct 0020166854
Connection to flue gas pipe, concentric, for laying on external wall 0020166855
Connection to air/flue gas system (LAS) 0020106380 with 0020106376
4.1 Product range

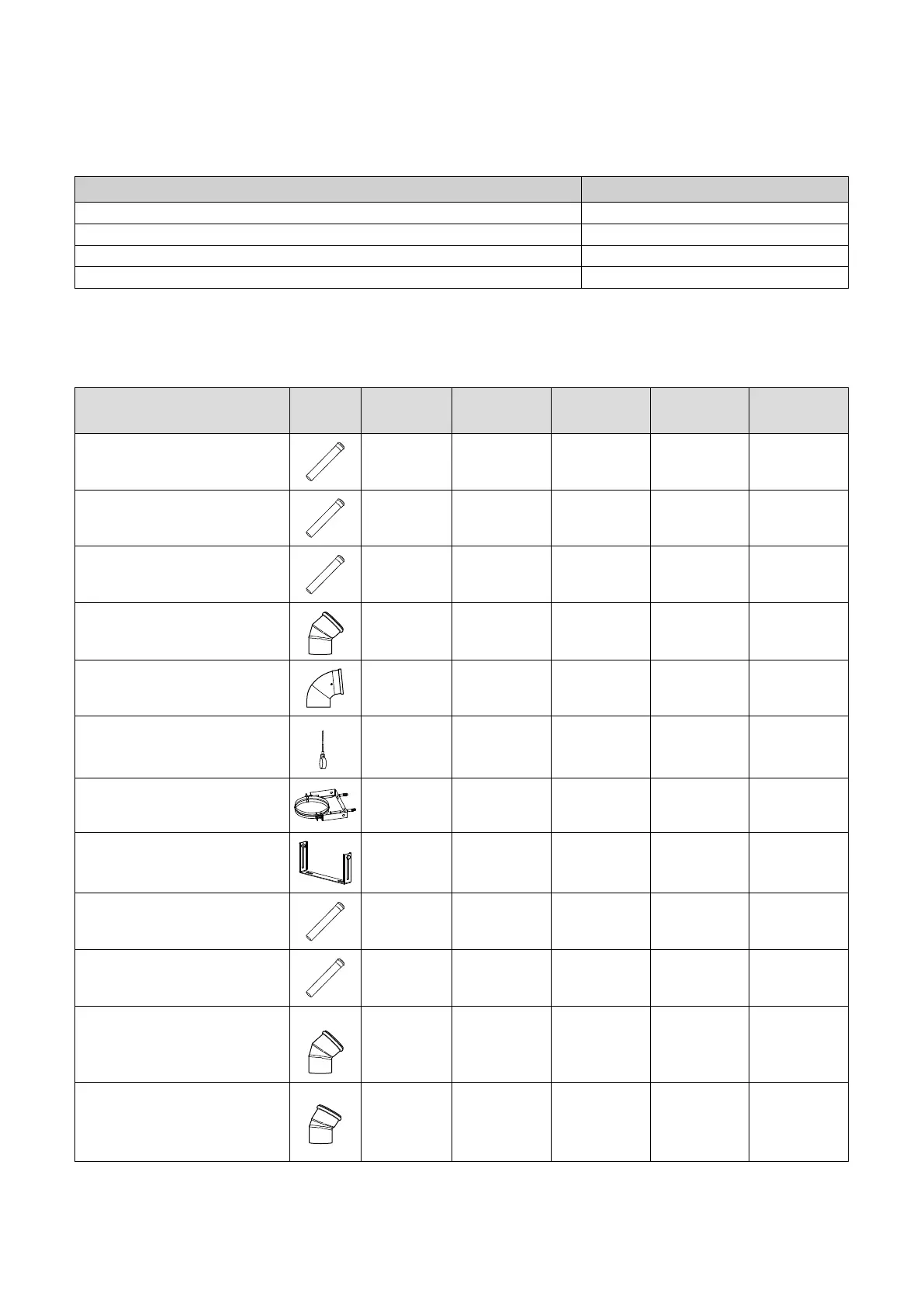

4.3 Elements
Elements Art. no.
0020166853 0020166854 0020166855 0020106380
mit
0020106376
Extensions, concentric 0.5 m,
Ø110/160, PP
0020106376 X X X X
Extensions,
concentric 1.0 m,
Ø110/160, PP
0020106377
XXXX
Extensions,
concentric 2.0 m,
Ø110/160, PP
0020106378 X X X X
Elbow 45°,
concentric (x 2),
Ø110/160, PP
0020106379 X X X X
Elbow 87°, concentric
Ø110/160, PP
0020106380 X X X X
Fastening clamps with bolts and
rawl plugs (5 pcs), Ø160
0020106381 X X X X
External wall bracket (adjustable
50 to 90mm clearance), stainless
steel
0020106400 X
Extension for external wall bracket
(adjustable 90 to 280mm clear-
ance), stainless steel
0020106401 X
0.5 m extension for external wall
laying, concentric, interior PP,
exterior stainless steel
0020106402 X
1.0 m extension for external wall
laying, concentric, interior PP,
exterior stainless steel
0020106403 X
45° elbow for external wall laying
(2 pcs), concentric, interior PP,
exterior stainless steel
0020106405 X
30° elbow for external wall laying
(2 pcs), concentric, interior PP,
exterior stainless steel
0020106406 X
4.2 Elements (continued on next page)

Vaillant ecoTEC plus Specifications

General

Model	ecoTEC plus
Category	Boiler
Type	Condensing
Dimensions (H x W x D)	720mm x 440mm x 338mm
ErP Rating	A
Mounting	Wall-mounted
Output Range	12kW to 38kW
Fuel Type	Natural Gas
Domestic Hot Water Output	38kW
Flow Rate	15.9 l/min
NOx Emissions	Class 5
Efficiency	94% (SAP 2009)
