8 Installation Manual for VR 32
6

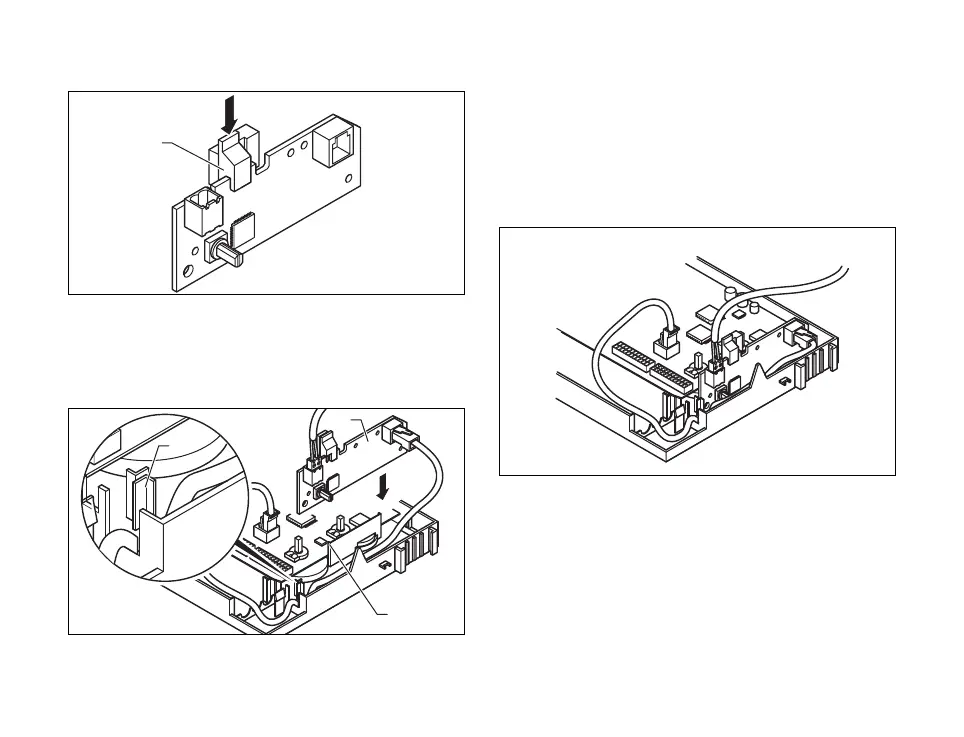

Fig. 4.3 Fastening the clip on the bus coupler board
• Push the fastening clip (6) into the groove
on the bus coupler board.
5
7
8
Fig. 4.4 Installing the bus coupler board
• Push the bus coupler board (5) into the
guide (7) in the lower part of the switch
box, making sure the fastening clip grips the
groove (8) on the partition in the switch
box.
Fig. 4.5 Installed bus coupler board
4 Installation
