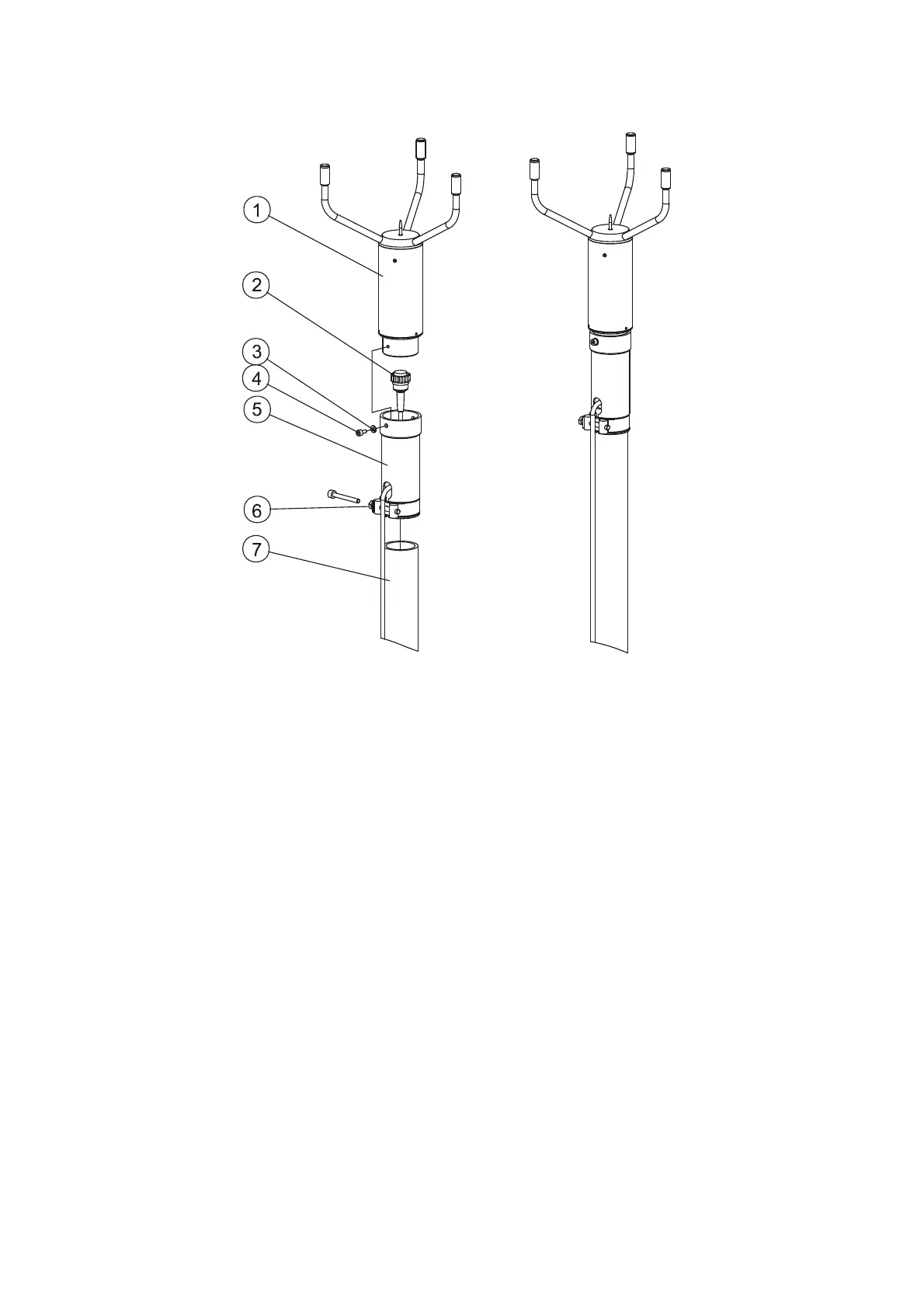

Figure 2 Mounting the Sensor to Adapter
The following numbers refer to Figure 2 above.
1 = Sensor body
2 = Cable connector
3 = Spacer ring
4 = 3/16 inch Hex-socket bolt or standard screw
5 = Sensor adapter
6 = Fastening clamp
7 = Vertical tube
The dimensions of the adapter are illustrated in Figure 3 on page 25.
