Manual for VAKI Micro/Macro
The split head solution may look like the pictures below.

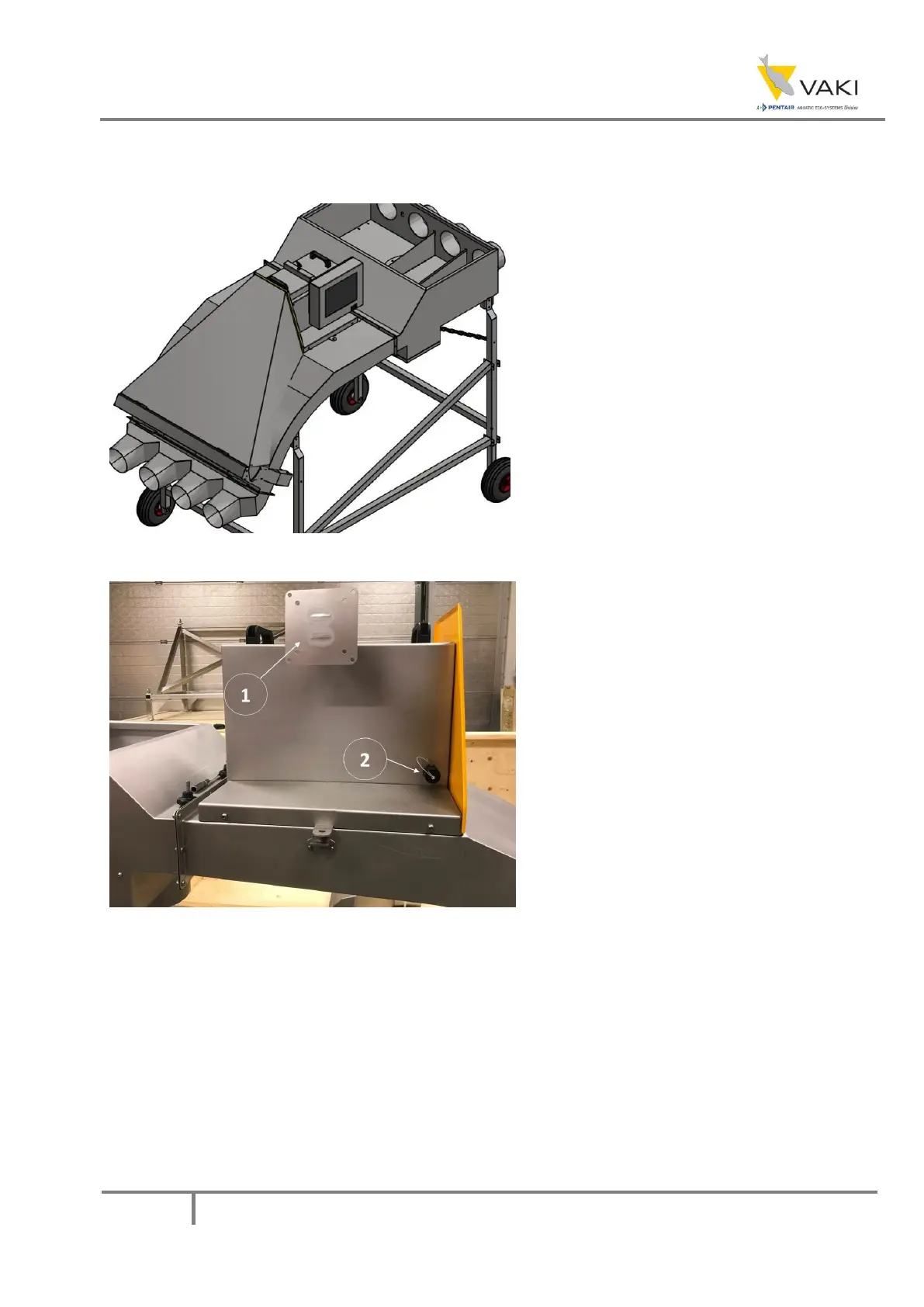

Figure 5 - 4 Channel Macro w/ Split Head
The PC can be mounted on both sides of
the counter, or away from the counter. If
the PC is mounted far away from the
counter, it will need a seperate power
supply, and an ethernet cable to connect
it to the counter head.
Figure 6 - Split head side view
Split head solution seen from the side.
1. Bracket where the PC is mounted
on.
2. Lamp/heater connector
