Manual for VAKI Micro/Macro
4 Counter head
The counter can be supplied with a counting head where the camera, power supply, heating
element and PC with touch screen are integrated in the head or with the so-called split head
solution where the PC comes as a separate device which can either be mounted on a bracket on the
head, or away from the counter itself.
At / below the screen there are connection ports and inputs for connection of power, lamp,
alarm and any accessories such as keyboard / mouse / printer.
The counting head is constantly evolving, so there are slightly different versions on the market.

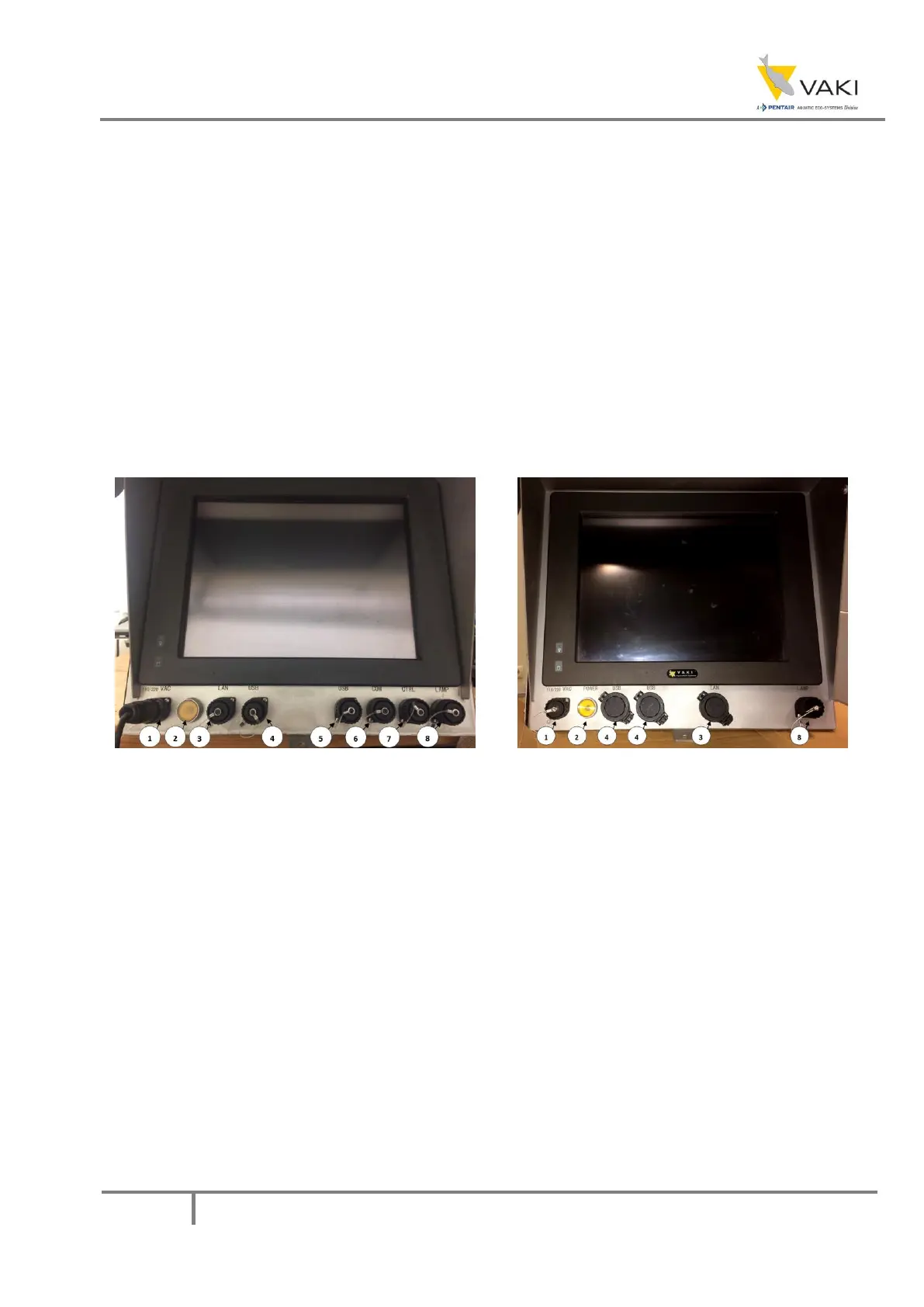

The figures below show two versions where PC is integrated into the head.
Figure 3 - Old head design
Figure 4 - New head design
1. 110/220VAC power connector
2. On/Off button
3. Ethernet port
4. USB port
5. USB port
6. Serial port
7. Control port for overload/batch alarm
8. Lamp/heater connector
