Manual for VAKI Micro/Macro
9.2 Calibrating the counter
The counter should be calibrated without water before use. It is important that the light has been
on for a minimum of five minutes, and that glass and mirrors are clean before the calibration is
started. The calibration resets the camera to its metering. Press the Calibrate button on the main
screen without water and / or fish passing through the counter. While the calibration is in progress,
Not Counting will appear at the bottom left corner of the main screen, this will change to Counting
if the calibration is OK.
You may also want to check the Visibility curve after calibration to see if there may be other
issues.

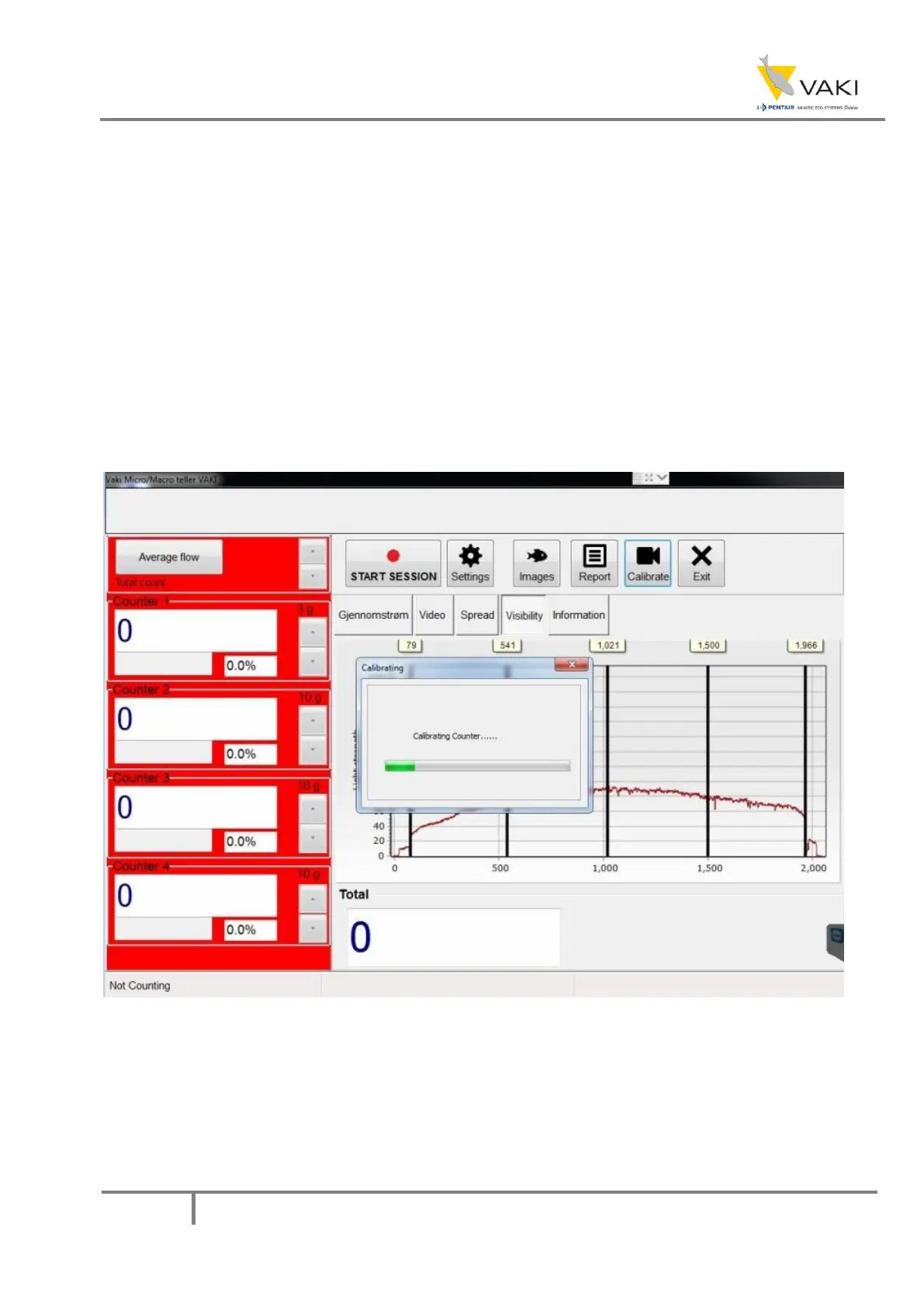

Figure 25 - Counter Calibration
