Manual for VAKI Micro/Macro
3 Components
After delivery, the main parts of the counter need to be
bolted together. These are the Counting head, Counter
body, legs, inlet, and outlet. The legs are assembled and
fitted with the wheels at the front and the inlet tub and
outlet bolted to the counter body as shown. Instructional
video is availible at www.vaki.is.
To ensure the camera inside is correctly positioned it is important that the counting head is
securely fitted onto the main chassis and firmly seated on the four corner pads.
The Micro / Macro can be supplied as a single channel counter or with multiple channels.
The four-channel Macro counter is shown here. The main steps in the assembly are always the same
but there may be different inlets and outlets according to the counter specifation.

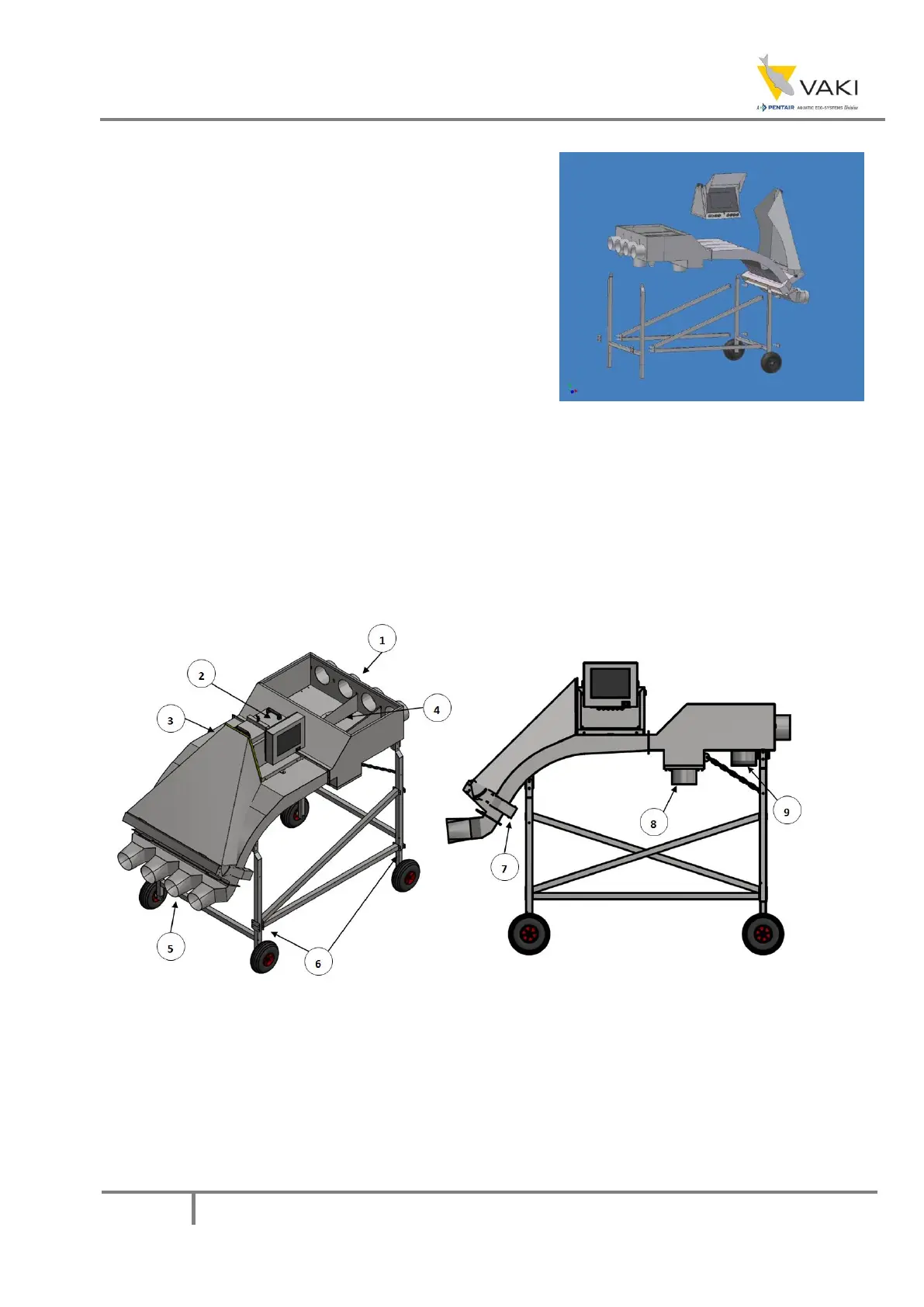

Figure 2 - Counter Components
Figure 1 - Counter Assembly
