Valmet MCA - Sensor Dimensions

3.3. Sensor dimensions
223 (8.7”)
275 (10.8”)
156 (6.1”)
20 (0.8”)
210 (8.2”)
9
(3.5”)
0

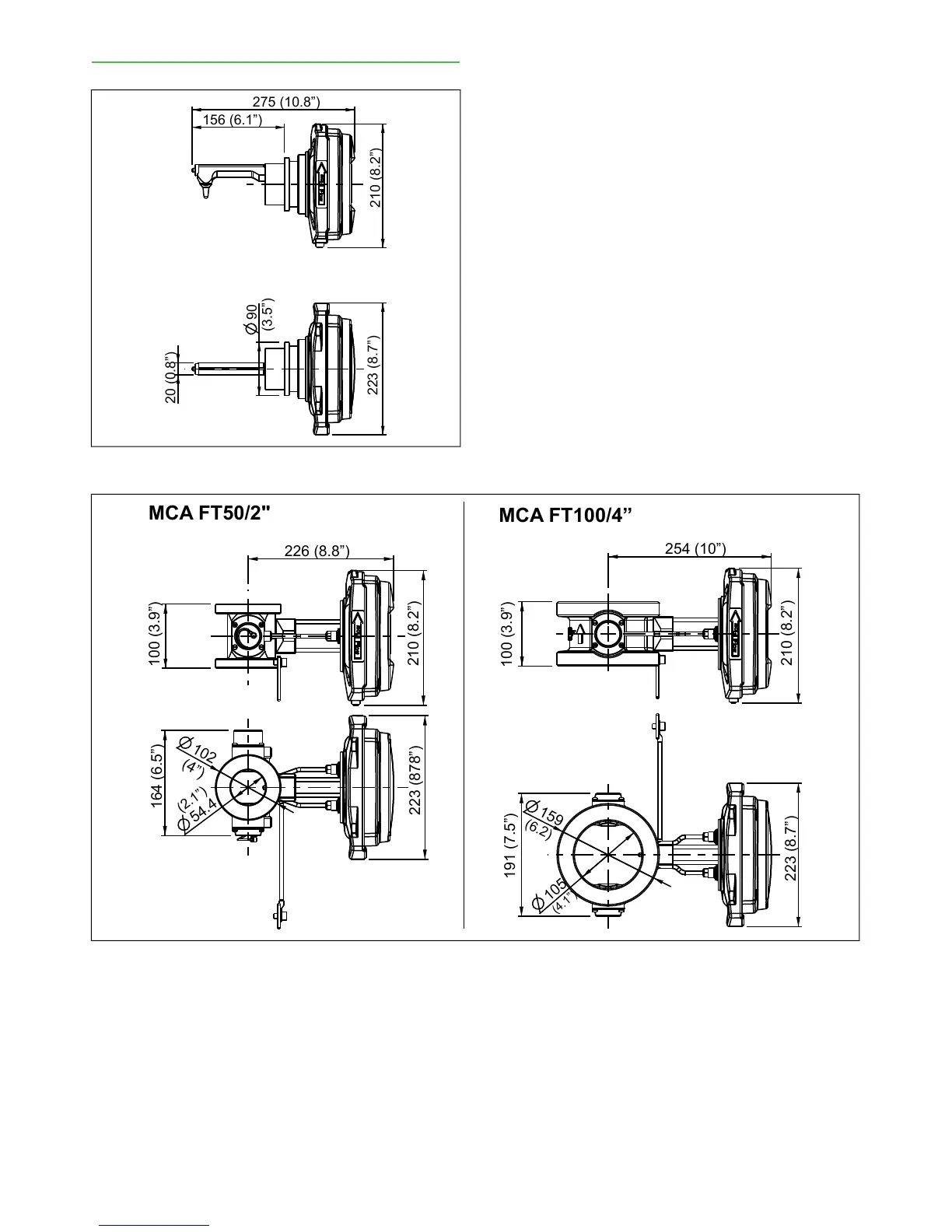

Fig. 7. Dimensions, Valmet MCA-F.
223 (878”)
210 (8.2”)
226 (8.8”)
100 (3.9”)
164 (6.5”)
1
(4”)
0
2
5
4
(2.1”)
.
4
MCA FT50/2"
223 (8.7”)
159
(6.2)
191 (7.5”)
254 (10”)
210 (8.2”)
100 (3.9”)
MCA FT100/4”
1
(4.1”)
0
5
Fig. 8. Dimensions, Valmet MCA-FT50 and -FT100.
Installation & Owner’s manual OUL00298 V2.3 EN
17
Valmet Mircowave Consistency Transmitter
