Valmet MCA - 12. HART User Interface

12. HART® User Interface
12.1. About the interface
HART® is a registered trademark of HART Communic-
ation Foundation. HART communication is a method
of transferring information digitally between field devices
and host devices (e.g. HART Communicator).
In order to function properly HART requires TCU
program version C or higher and a HART Communic-
ator that contains the Valmet MCA command base.
HART Communicator is connected in parallel to the
current output, e.g. to the connector pins on the front
panel of the TCU.
You can perform the same operations on Valmet
MCA HART user interface as on the device’s TCU user
interface. Figure 1 shows the HART Communicator
operation menu.
When you connect HART Communicator to Valmet
MCA, the following menu appears.
M C A : M C A - 1 2 3 4
O n l i n e
1 M e a s u r e m e n t
2 C o n f i g u r e
3 C a l i b r a t e
4 D i a g n o s t i c s
Measurement
Configuration
Calibration
Diagnostics
Range Values
User Settings
Device Info
Sensor Electronics
TCU
Set time
Take sample
Enter Lab
Offset correction
Fillers
Calibration history
Sample History
Special Functions
Chemicals Comp.
Temperature Comp.
Sensitivity
Recipes
PV %Cs
Process Temp
Meas Att
Conductivity
AO mA
% of Range
Active Recipe
Trend Int
Position
Language
Temp Unit
Diag history
Diag values
Diag alarms
Digital inputs
Loop test
Lab Cs
Filler %
Clay %
CaCO3 %
Talc %
TiO2 %
Chemical
Lab cond
Low Range
High Range
Damping
Alarm Current
Poll addr
Manufacturer
Model
Final Asbly number
Tag
Message
Universal rev
Descriptor
Filler %
Clay %
CaCO3 %
Talc %
TiO2 %

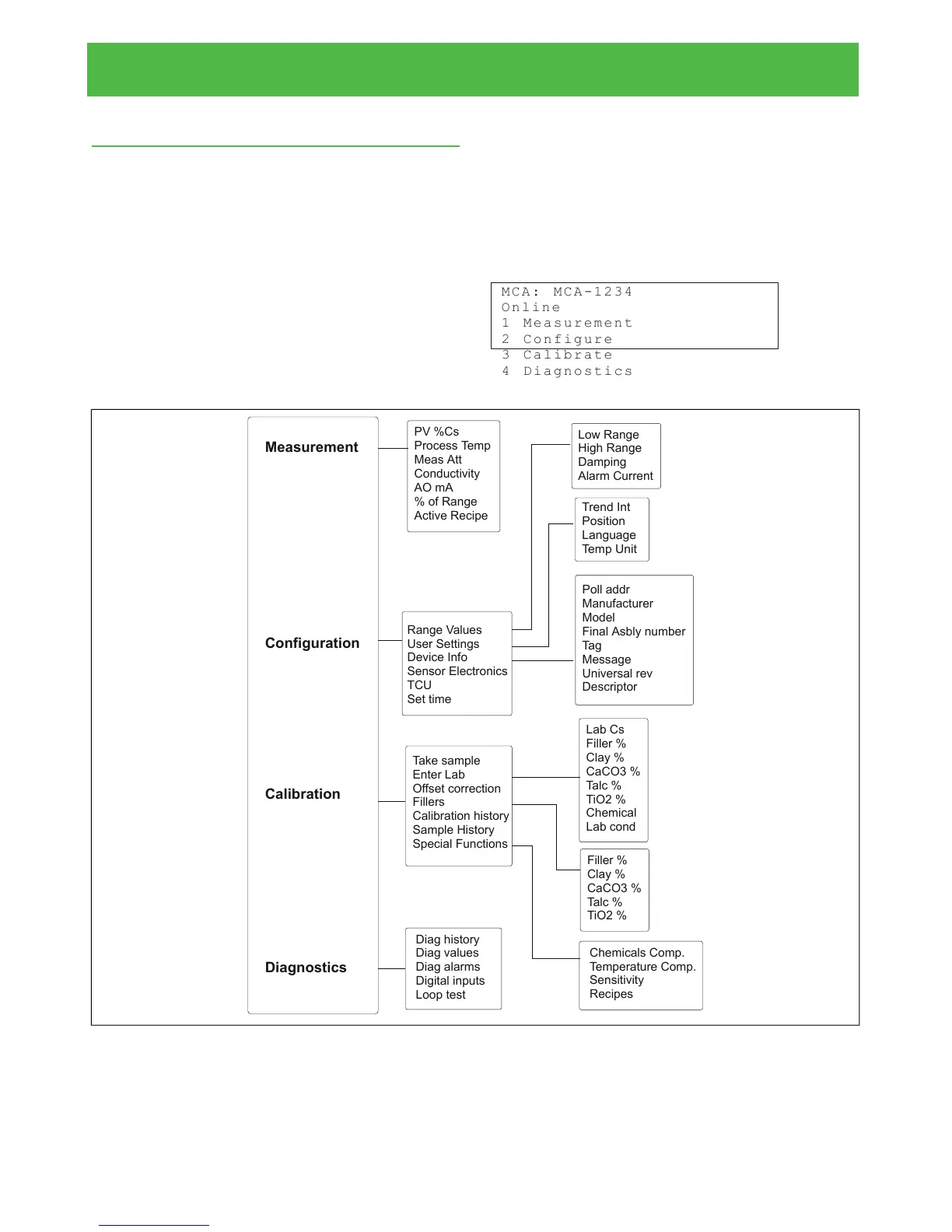

Fig. 1. HART Communicator operation menu.
