Valor 534XAP User Manual

1515
Top Vent Connection—Horizontal Side
Termination
The vent pipe dimensional requirements in section
Top Vent Connection—Horizontal Rear Termination
apply.

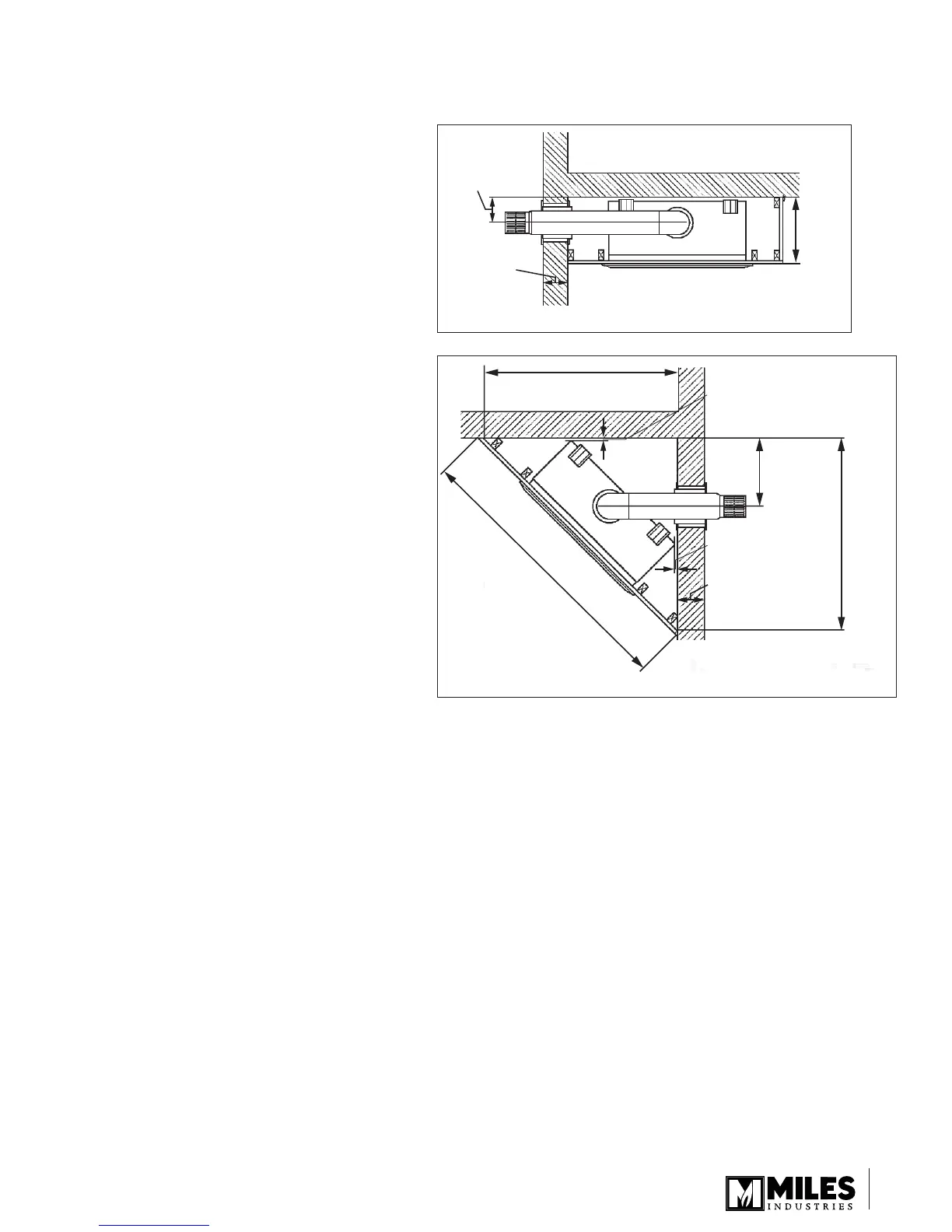

The minimum fl oor location is shown in fi gure 14.
Can be used with either #551DVK standard vent kit
or another terminal cap and accessories. Adapter
#817VAK, one 90° vent elbow and pipe lengths will
be required. See venting accessories list on pages
39–40 for allowable components.
Top Vent Connection—Horizontal Side or
Rear Snorkel Termination
The vent pipe dimensional requirements in sections
Top Vent Connection—Horizontal Rear Termination
and Top Vent Connection—Horizontal Side
Termination apply.
Adapter #817VAK, one 90° vent elbow, a snorkel
termination and pipe lengths will be required. A
thimble kit may also be necessary. See venting
accessories list on pages 39–40 for allowable
components.
Top Vent Connection—Corner Location,
Horizontal Termination, 45° Pipe Run
The vent pipe dimensional requirements in section
Top Vent Connection—Horizontal Rear Termination
apply.
The minimum corner location is shown in fi gure 15.
Can be used with either #551DVK standard vent kit
or another terminal cap and accessories. Adapter
#817VAK, one 90° vent elbow and pipe lengths will
be required. See venting accessories list on pages
39–40 for allowable components.
6-1/8” (156 mm)
min.
to hole center
14” (36 cm)
max.
combustible
wall
16-1/2”
(42 cm)
min.
Figure 14
1-1/2” (38 mm) min.
clearance
1-1/2” (38 mm) min.
clearance
14” (36 cm) max.
combustible
wall
45-7/8”
(117 cm)
min.
10-7/8”
(276 mm)
min.
45-7/8” (117 cm) min.
64-3/8” (164 cm) min.
Figure 15
Location
