1717

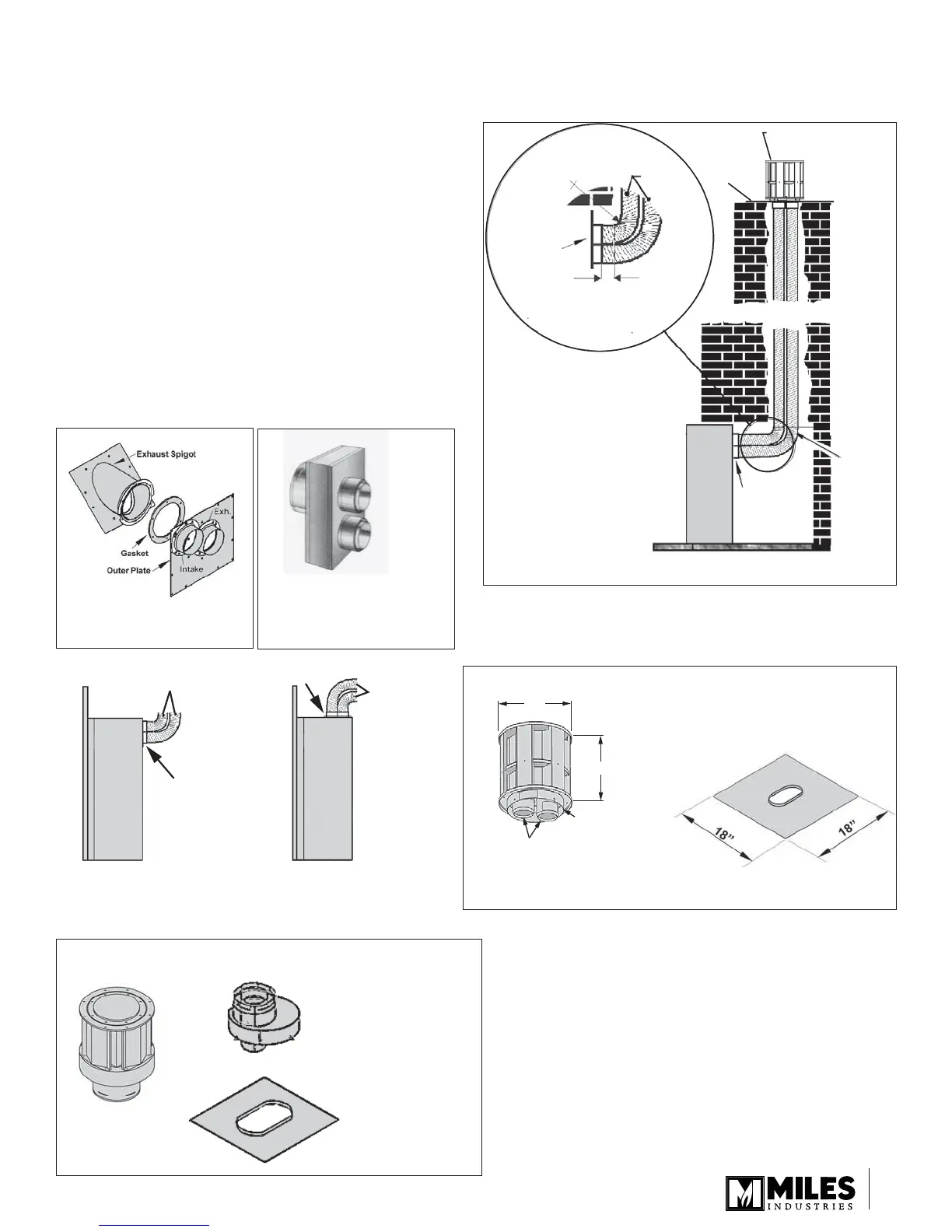

Rear or Top Outlet Conversion to Co-Linear
Liners using Valor #556CLA Co-Linear Adapter.
(Generic co-axial to co-linear adapter boxes may
also be used as an alternate to the 556CLA).
Only for use when retro tting a solid-fuel burning replace
and chimney.
The appliance must not be connected to a chimney ue
serving a separate solid-fuel burning appliance.
Requires #556CLA Co-Axial to Co-Linear Appliance Adapter
(or, alternatively, a generic adapter), two lengths of 3” dia.
exible chimney liner, co-linear termination kit and ashing
and either high wind vertical vent terminal cap or a low
pro le vertical termination. Zero Clearance stand-offs and
shields supplied with the heater are not required for this
application.
Flashing
2 x 3”
liners
3” min.
bend radius
Co-linear
adapter
2 x 3”
liners
18” max.
horizontal run
Co-linear
adapter
534
engine
Approved co-linear
termination or approved
co-linear adapter
and approved
co-axial
termination
Recessed Insert Applications
Co-Axial to Co-Linear Adapter
(alternate to
#556CLA)
10”
10”
3” Inlet & Exhaust
Collars
7-5/8” dia.
collar
556CLA
2 x 3” Liners
556CLA
2 x 3” Liners
556CLA
Rear Mounted
556CLA
Top Mounted
Alternate to 559CLT/559FSK Conversion
559FSK Flashing Kit559CLT Co-Linear Terminal
Co-Linear installation into existing F/P
556CLA Kit
Terminal Cap
Co-Linear to Co-Axial
Adapter
Flashing
