Appliance Preparation
Attaching Rear Ceramic Support
See fi gure 29.
Fit the rear ceramic support to the fi rebox back panel with
three screws.
Attaching Appliance to the Framing
See fi gure 30.
Place the heater in position in the framing.
Secure the side support angles to the side studding
through two holes each side with the woodscrews
supplied. The top support angle should abut the wall
fi nish but is not fi xed to the framing.
Check the wall fi nish requirements with the homeowner.
If necessary, adjust the position of the heater so that the
distance from the front of the heater case to the angles is
suitable for the thickness of the wall fi nish (e.g. tile, etc.).
1.
2.
3.

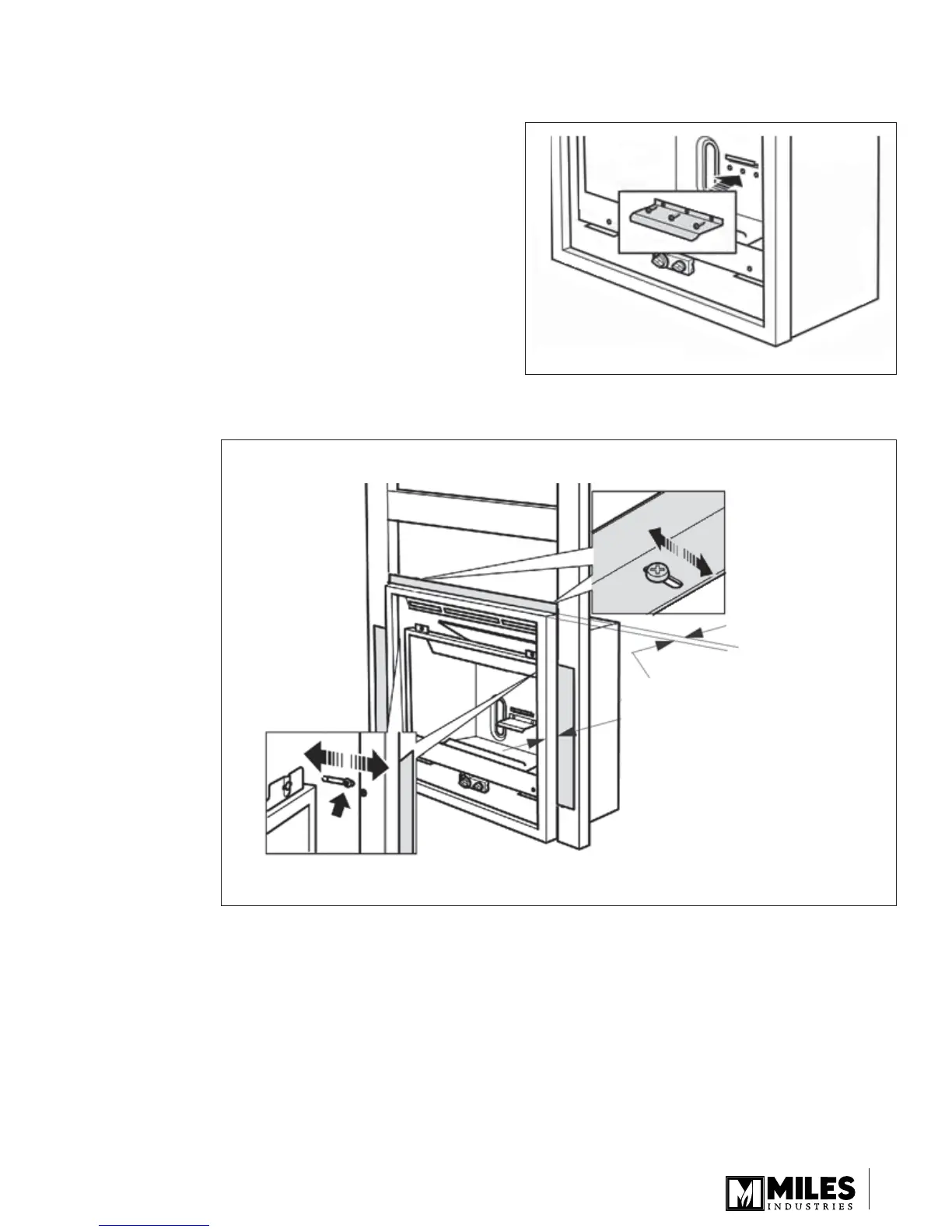

Figure 29 Rear ceramic support
Top angle
adjustment
from back
of angle
Adjustable for wall finish
material thickness
between 3/8” and 1-3/16“
(10 mm and 30 mm)
Side angle
adjustment
from inside
firebox
Figure 30 Adjustment for wall fi nish
