3131

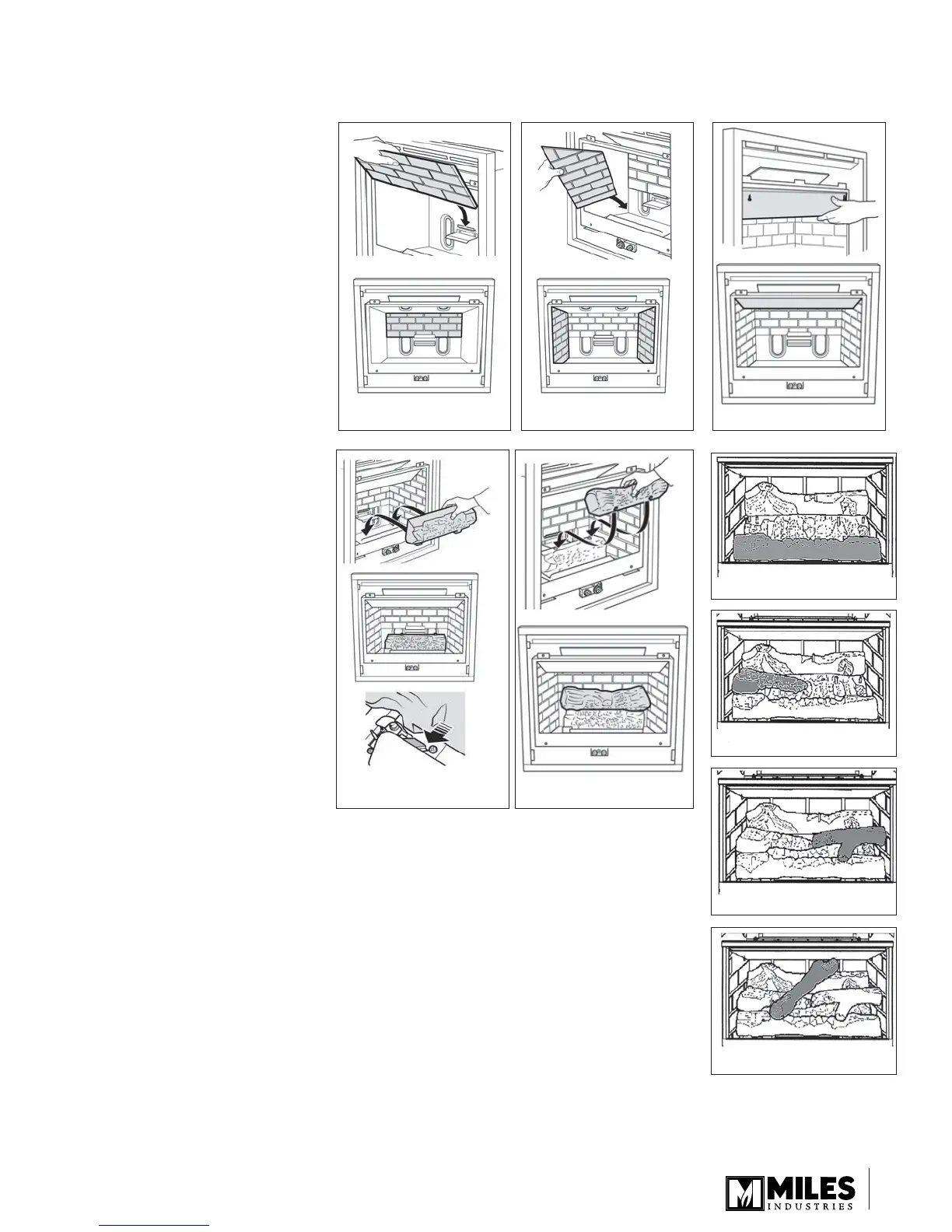

Ceramic Fuel Bed Installation
Ceramic Walls Installation
Locate the ceramic rear wall
in the channel at back of the
fi rebox and fl at against the
back of the fi rebox. See fi gure
41.
Locate the sidewalls against
the sides of the fi rebox. Make
sure that they are behind the
raised edges of the burner
module base at the back
corners. See fi gure 42.
Remove two screws from
under the top front of the
fi rebox. Using these screws fi t
the port cover. See fi gure 43.
1.
2.
3.
Figure 41 Rear wall Figure 42 Side walls Figure 43 Port cover
Ceramic Logs Installation
Place the ash bed in position.
The projections at the front
of the ash bed locate against
the sloping metal stops
immediately behind the burner.
See fi gure 44.
Place the rear log in position
locating the two pins in the top
of the wedge into the holes in
the rear log. See fi gure 45.
Place the front log at the front
of the fi rebox. See fi gure 46.
Place the right side center log
in position locating it on the two
locating pins on the left hand
side of the ash bed with its
“nose” resting at the center of
the ash bed. See fi gure 47.
Place the right side center log
in position locating it on the
two pins on the right hand side
of the ash bed with its “nose”
resting at the center of the ash
bed. See fi gure 48.
Place the “branch end” of the
cross log on the pin located on
the center of the rear log and
the other end in the locating
pocket on the left side of the
front log. See fi gure 49.
1.
2.
3.
4.
5.
6.
Figure 44 Ash bed Figure 45 Rear log
Figure 46 Front log
Figure 47 Left center log
Figure 48 Right center log
Figure 49 Cross log
