Vent Location
The vent terminal must be located on an outside wall or through the roof.
This direct vent appliance is designed to operate when an undisturbed airfl ow hits the outside vent terminal from any
direction.
The minimum clearances from this terminal that must be maintained when located on an outside wall are shown in
fi gure below. Any reduction in these clearances could result in a disruption of the airfl ow or a safety hazard. Local
codes or regulations may require greater clearances.
The vent terminal must not be recessed into a wall or siding.
The vent terminal should be positioned where any snowdrifts will not cover it.
Sidewall vent terminations within 7’ of grade require a terminal guard when used with a 551DVK.
•
•
•
•
•
•
KEY VENT TERMINAL LOCATIONS - MINIMUM DISTANCES—See fi gure 18 MIN. CLEARANCES
in cm
A Clearance above grade, verandah, porch, deck or balcony 12 30
B Clearance to window or door that may be opened 12 30
C
Clearance to permanently closed window (recommended to prevent condensation on
window)
12 30
D
Vertical clearance to ventilated soffi t located above the terminal within a horizontal
distance of 2 feet (60 cm) from the center-line of the terminal
18 46
E Clearance to unventilated soffi t1230
F Clearance to outside corner 12 30
G Clearance to inside corner 12 30
H
Horizontal clearance to center-line of meter/regulator assembly located within 15 feet
(4.6 m) below the terminal
36 90
I Clearance to service regulator vent outlet 36 90
J
Clearance to non-mechanical air supply inlet to the building or the combustion air inlet
to any other appliance
12 30
K Clearance to a mechanical air supply inlet 72 180
L
Clearance above paved sidewalk or a paved driveway located on public property.
Note: A vent must not terminate directly above a sidewalk or paved driveway, which is
located between two single-family dwellings and serves both dwellings.
84 210
M
Clearance under a verandah, porch, deck or balcony.
Only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2
sides beneath the fl oor.
12 30
Note: Local codes and regulations may require different clearances.

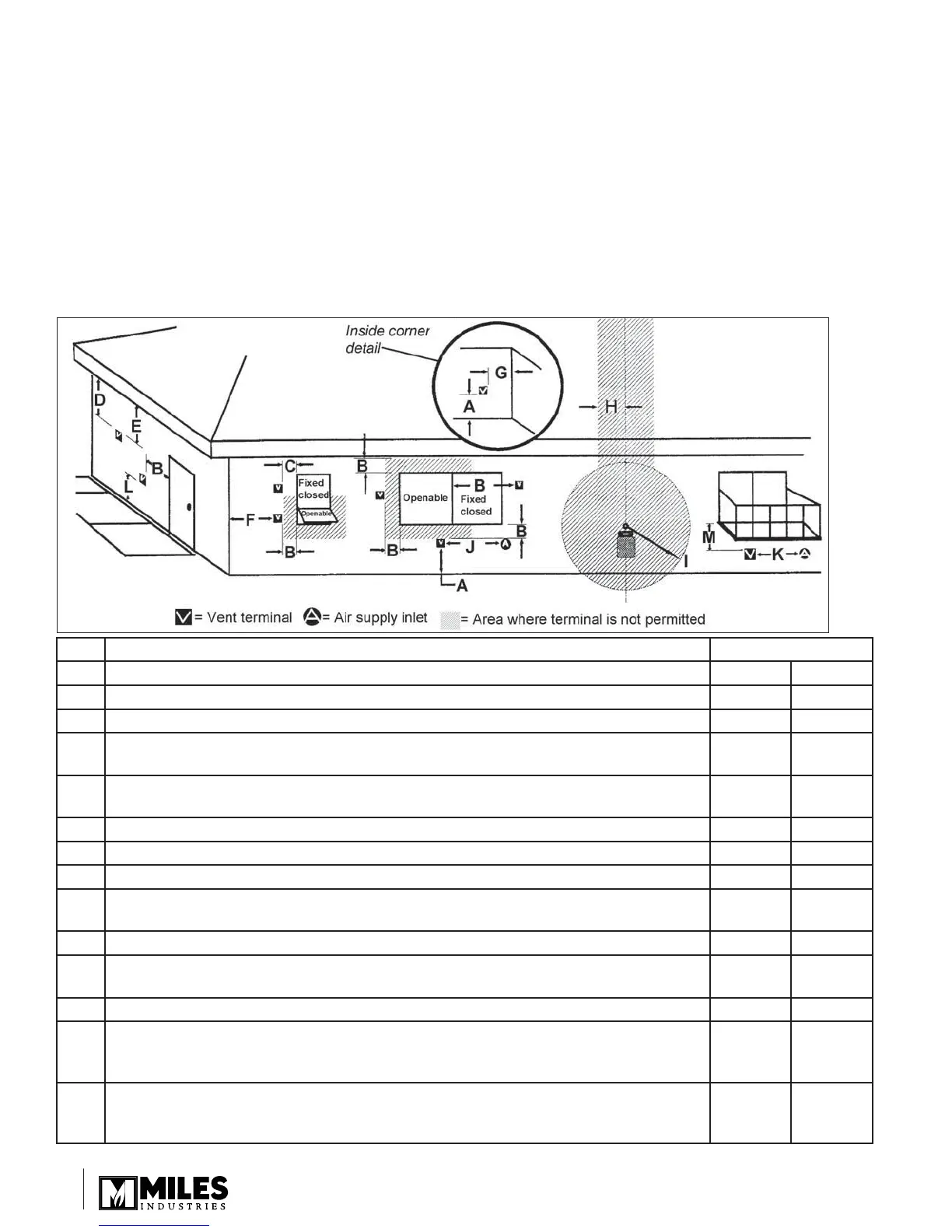

Horizontal Termination Locations
Figure 18
