6. The Adorn, Visage and Dream models have an outlet baffle supplied with the
appliance fascia. Fit this to the convected air outlet of the appliance using the three
self tapping screws supplied with the fascia (See figure 15).
The Icon model has a heat baffle supplied
with the appliance fascia. Fit this to the
convected air outlet of the appliance using
the three self tapping screws supplied with
the fascia (See figure 15).
7. This appliance is supplied with a rear
ceramic support bracket. Fit this using two
screws supplied (See figure 16)
8. This appliance is supplied with a flue
restrictor for use where the flue draught is
excessive. Generally we recommend the
restrictor is NOT fitted where a precast flue,
metal flue box or a flue liner is used,
however, certain flues may work sufficiently
to warrant its use. There may however, be
circumstances where fitting the restrictor
causes the fire to fail the spillage test. In
such cases the restrictor will have to be
removed. After removal conduct the spillage
check again.
The restrictor is packed loose with the
appliance and is fixed with three screws
(See figure 17).
© GDC Group Ltd. 2011
Page 24
INSTALLER GUIDE

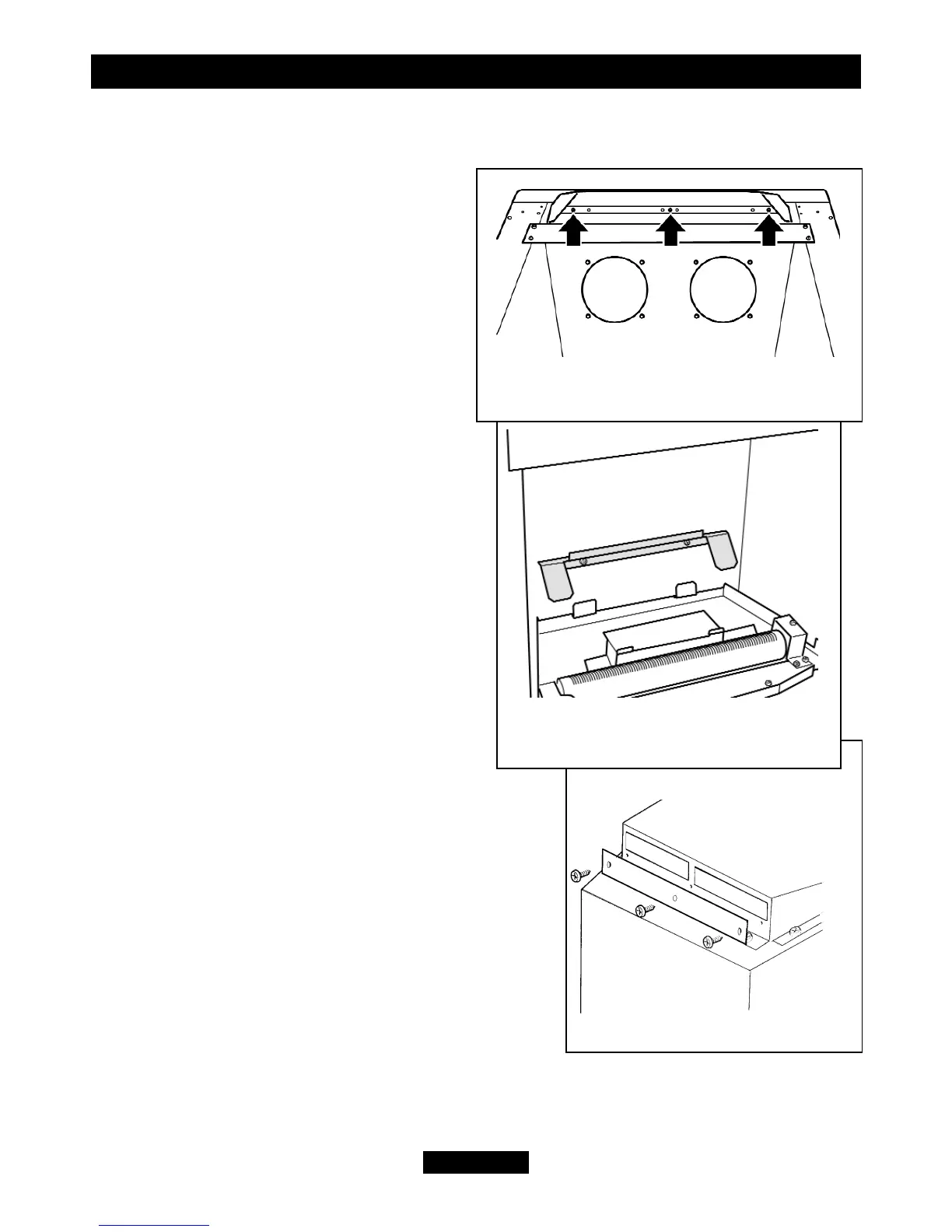

Figure 17. Flue restrictor
