9. There is a length of self adhesive foam seal
supplied with the fire. This will need to be fitted to
the outer rear edges of the side and top flanges
of the convection box. Cut a 485mm length of
foam seal. Be careful not to stretch the seal
when measuring. Remove the protective backing
from the foam seal and fit this to the rear of the
top flange (See figure 18). Cut two 580mm
lengths. Fit these to the rear outer edges of the
side flanges. Ensure that there is no gap
between the foam seals where they meet at the
top flange (See figure 18)
10. Visage models only.
Fit the two surround securing brackets to the
convection box side flanges with the screws
supplied. Note the different orientation of the
brackets at left and right sides (See figure 19).
© GDC Group Ltd. 2011
Page 25
INSTALLER GUIDE
LEFT
RIGHT

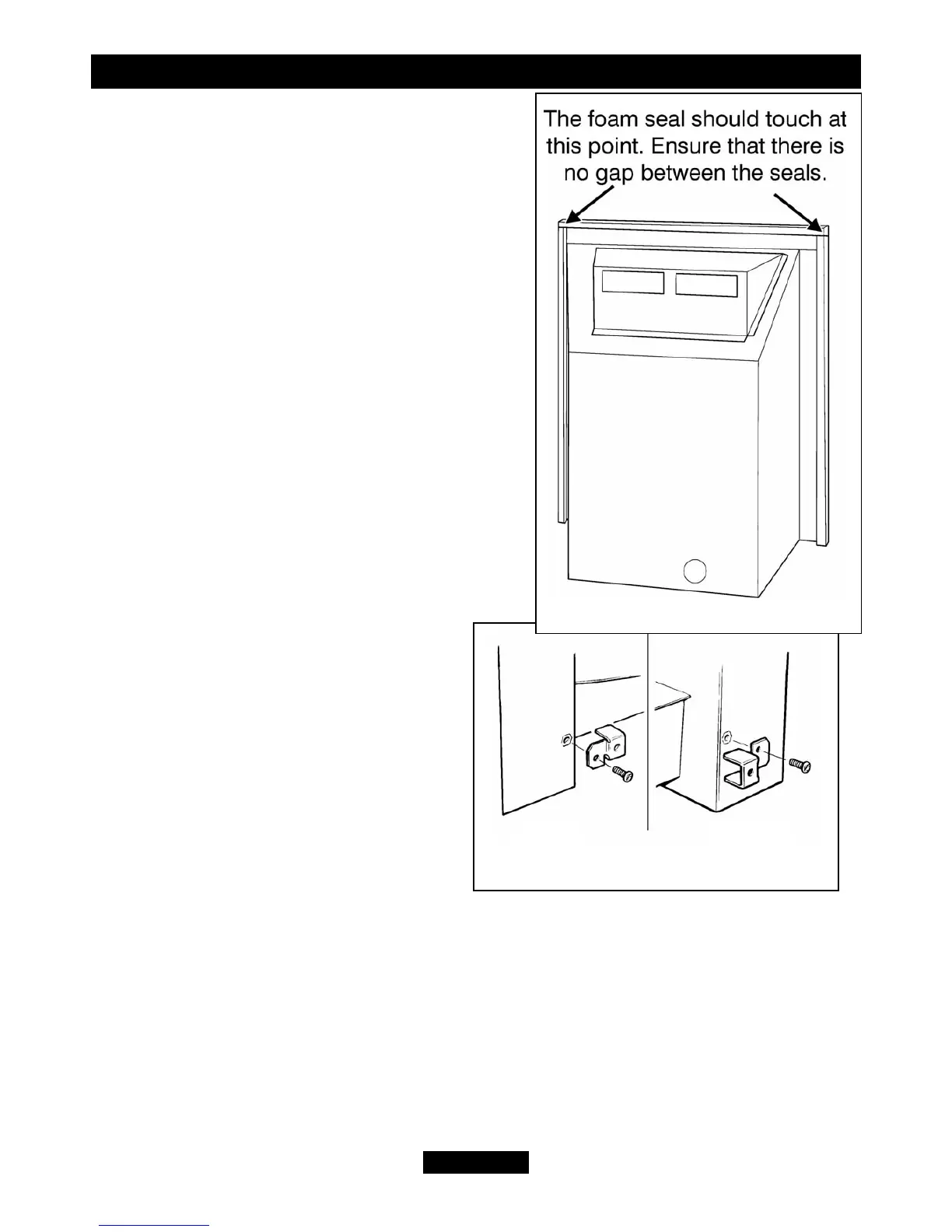

Figure 19. Surround securing brackets
Figure 18. Fitting the foam seal
