14
Installation
Window

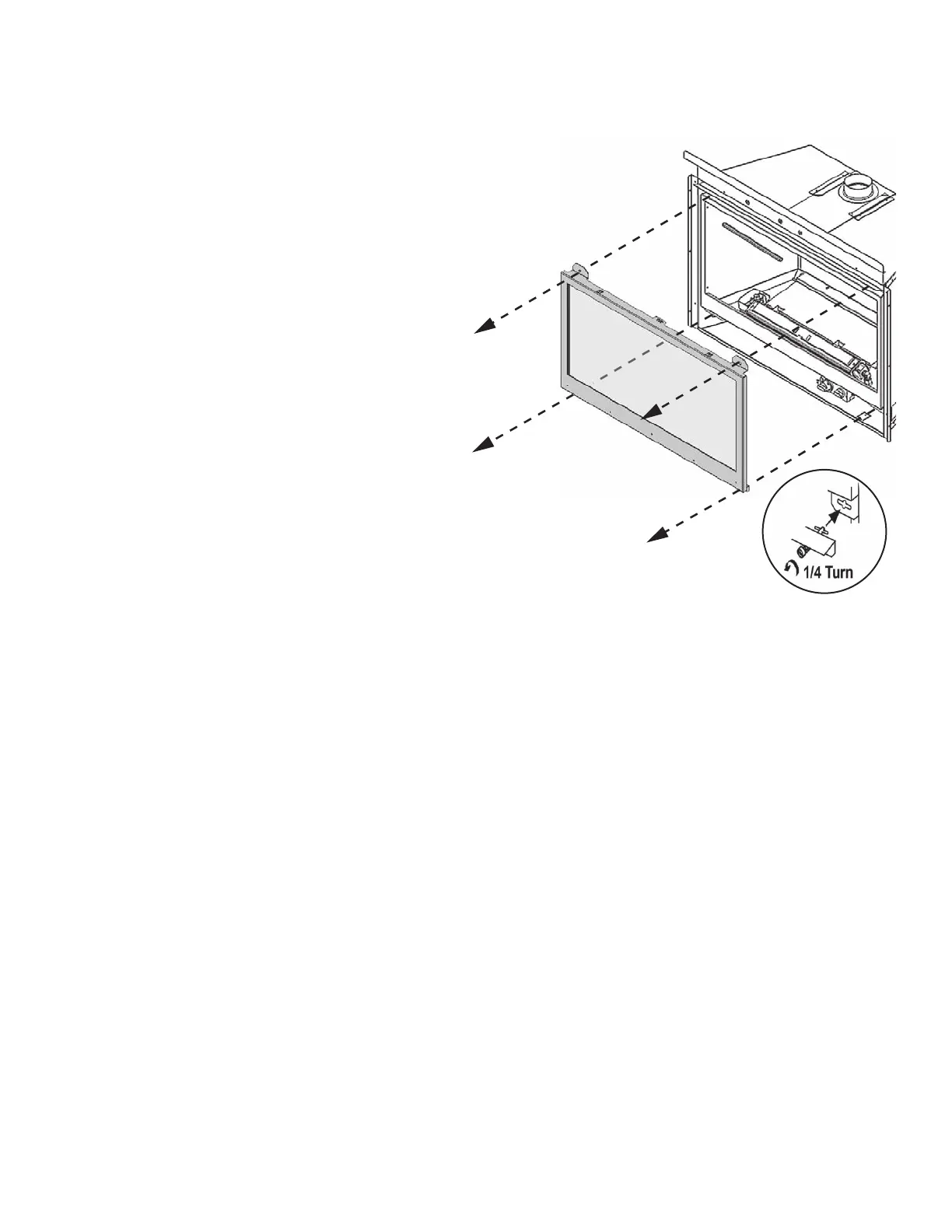

Remove Window
The window is held in place by four spring-loaded bolts,
two at the top and two at the bottom.
1. To remove the window, turn each bolt a quarter
turn to disengage the bolt pin.
2. Gently pull the bottom of the window outward and
unhook it from the fi rebox’s opening frame.
3. Set the window aside in a safe place to avoid dam-
age.
